Matrix VS-S33 Lat Pulldown User Manual

12
ASSEMBLY

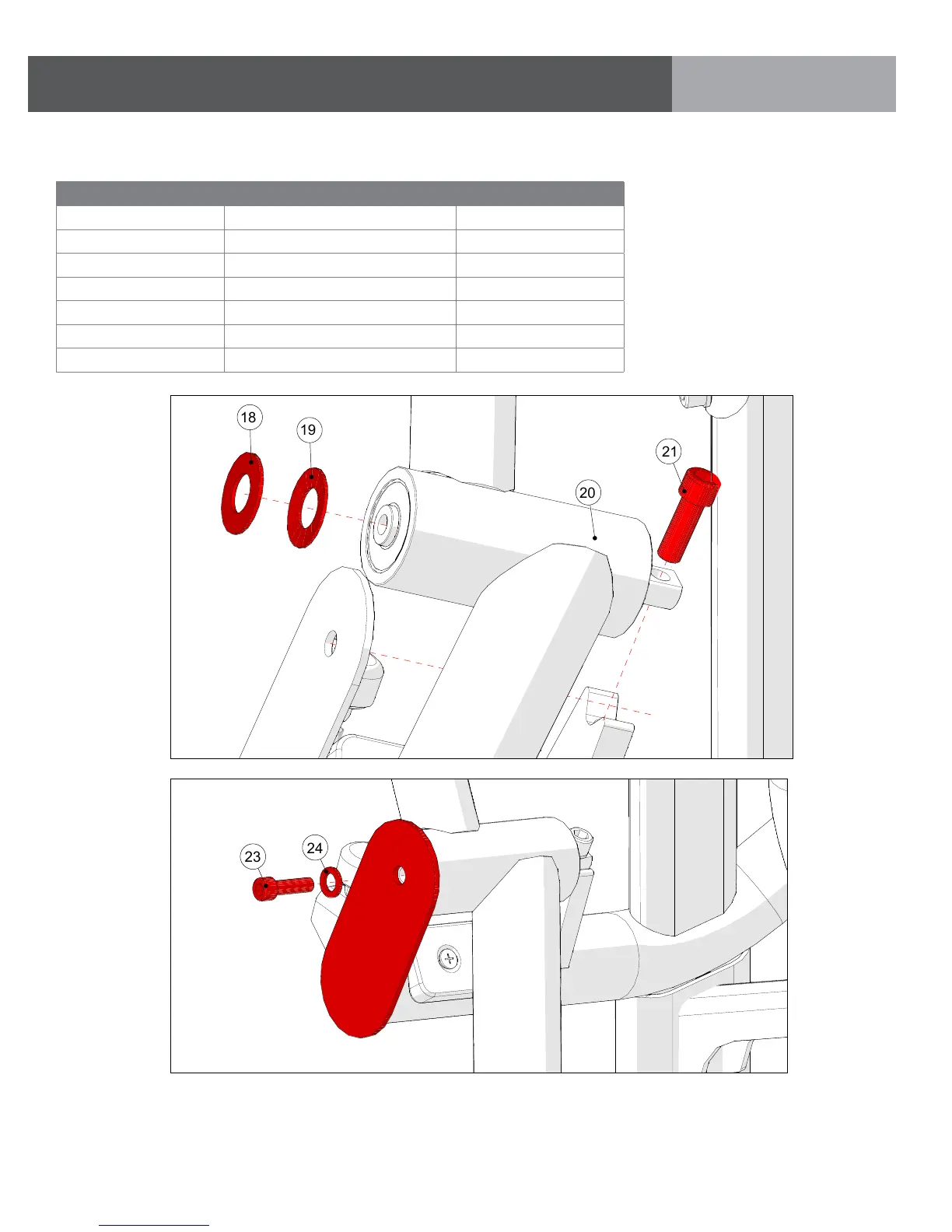

STEP 1 | RIGHT AND LEFT ARM ASSEMBLY INSTRUCTIONS & NOTES
PART 3: ARM ASSEMBLY
Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN.
Belleville washer item 19 must be assembled with inner (convex) diameter contacting the bearing.
The outer diameter and concave side of Belleville washer contacts the outer washer item 18.
24
23
20
21
19
18
ID DESCRIPTION QUANTITY
18 40mm Diameter Washer 2
19 Belleville (Spring) Washer 2
20 Right Arm Assembly 1
21 M10 X 25L SHC 2
22 Left Arm Assembly (Not Shown) 1
23 M12 X 25L SHC 2
24 M12 Flat Washer 2
