7

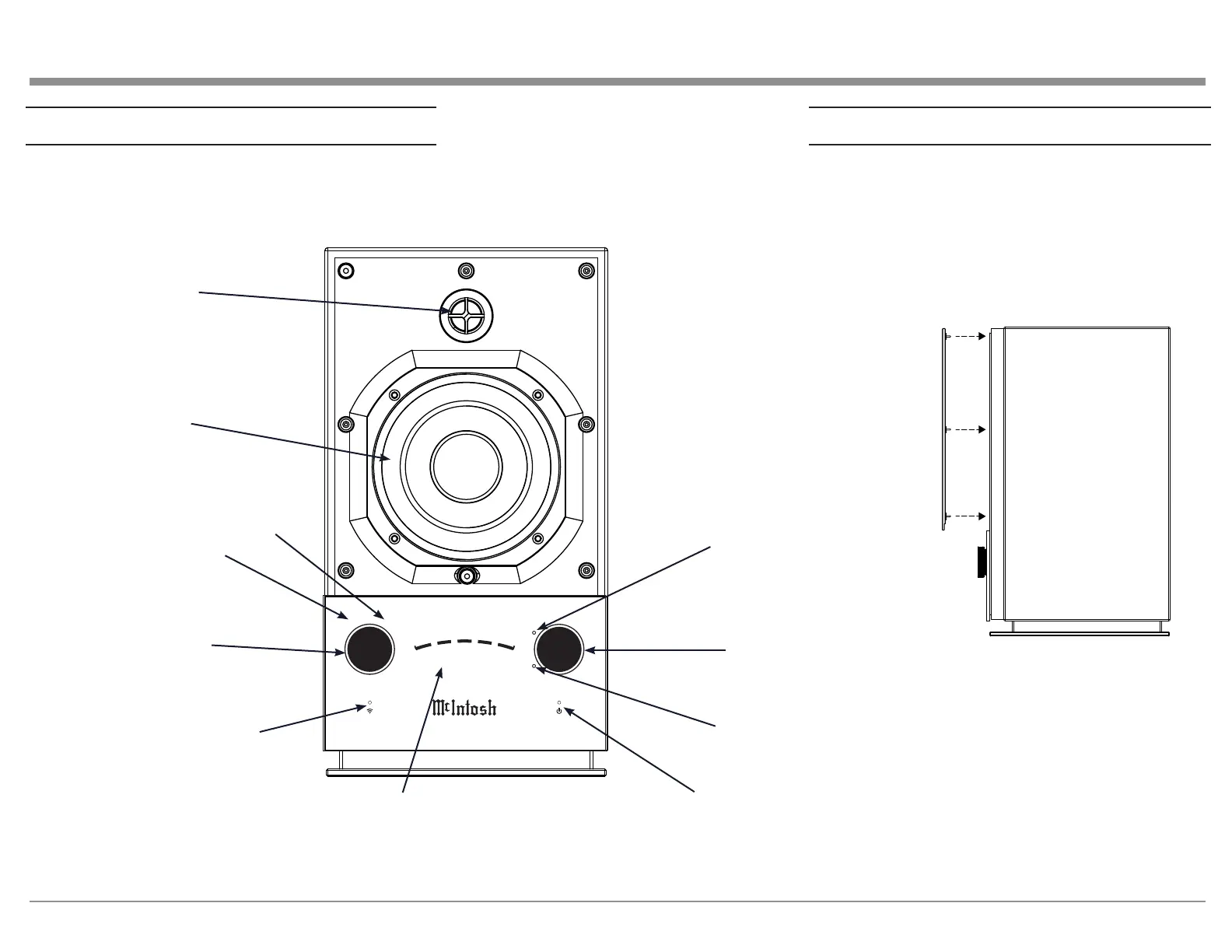

Figure 4– Front View
VOLUME
RS150
NET BT
0
-10
-40
-30
-20
OUTPUT LEVEL
dB
PUSH
POWER / MUTE
PUSH
BT PAIR
Tweeter
Woofer
Left Knob
Right Knob
Network/Wi-Fi Indicator LED
Red/Green LED provides
network status information.
See “Network/Wi-Fi Indicator
LED” on page 8.
Meter
Sleep Mode LED
Maximum Volume LED
Minimum Volume/ Mute LED
Front View Labeled
Figure 5– Installing the Grille
Installing the Grille
The RS150’s Grille can be installed by lining up the eight
plastic pegs on the back of the Grille with the eight holes
framing the speakers of the RS150. Gently push with
even pressure to install and pull straight away from the
front to remove the Grille. See Figure 5 below.
Note that the Grille has a top and bottom. The bottom has
a lip that extends further from the pegs than the top does.
Input Indicators:
Bluetooth
Net
