McQuay MCK 020A User Manual

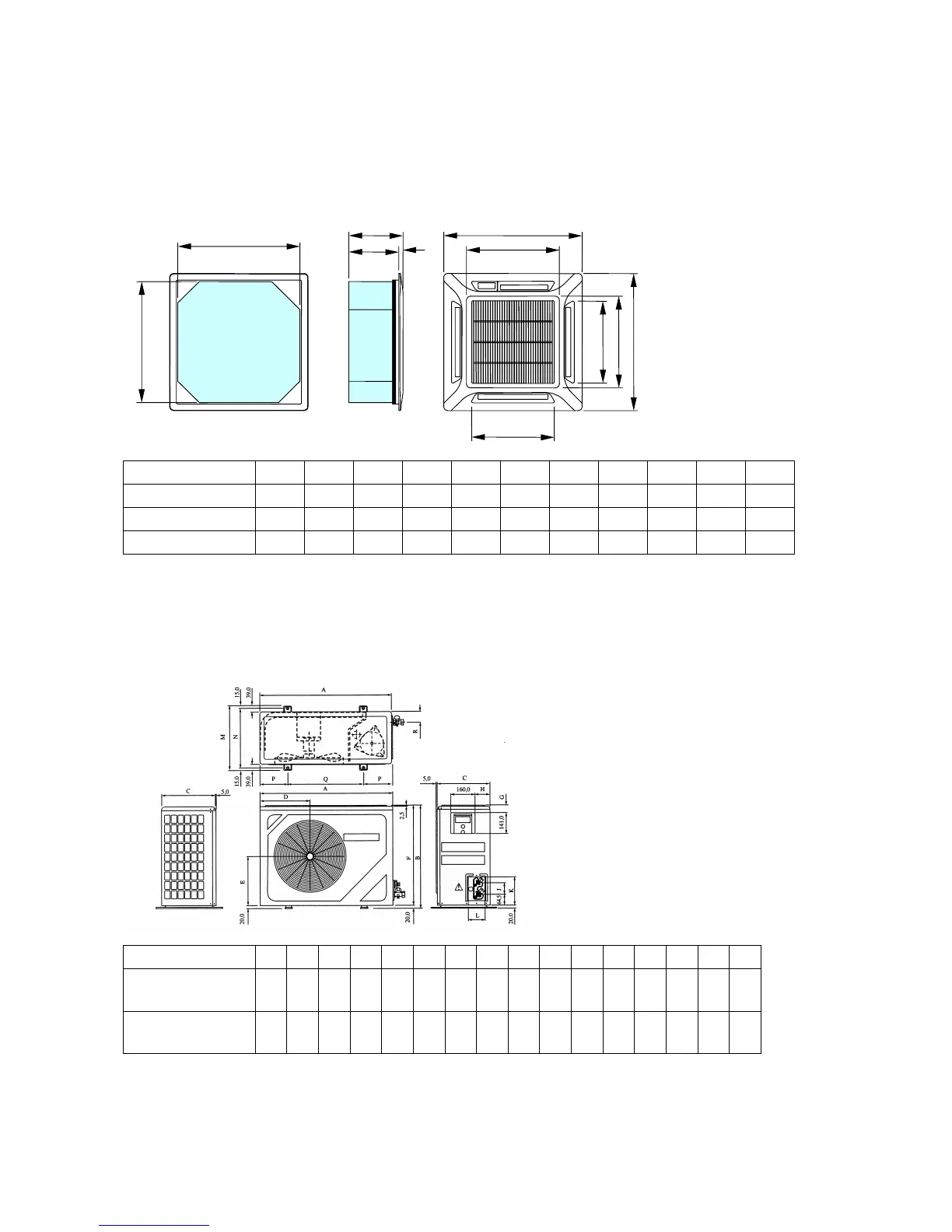

Outlines and Dimensions
Indoor Unit
MCK020/ 025/ 030/ 040/ 050A/AR
MCK015/ 020/ 025/ 030B/BR
MCK010/ 015/ 020C/CR
B
A
C
D
E
F
H
J
I
G
K
MODEL
A B C D E F G H I J K
MCK-A (All model)
820 820 378 350 28 930 930 626 626 555 555
MCK-B (All model)
650 650 362 340 22 727 727 489 489 444 444
MCK-C (All model)
570 570 295 275 20 640 640 408 408 364 364
Outdoor Unit
MLC010B/BR
MLC/ M4LC015/ 020/ 025B/BR
DIMENSION
A B C D E F G H J K
L M N P Q R
010B/ 010BR
015B / 015BR
740 494 270 266 233 474 52 60 54 166 92 348 318 129 482 68,5
020B/ 020BR
840 646 330 297 309 626 46 90 64 177 106 408 378 124 492 78,5
42

McQuay MCK 020A Specifications

General

Brand	McQuay
Model	MCK 020A
Category	Air Conditioner
Language	English
