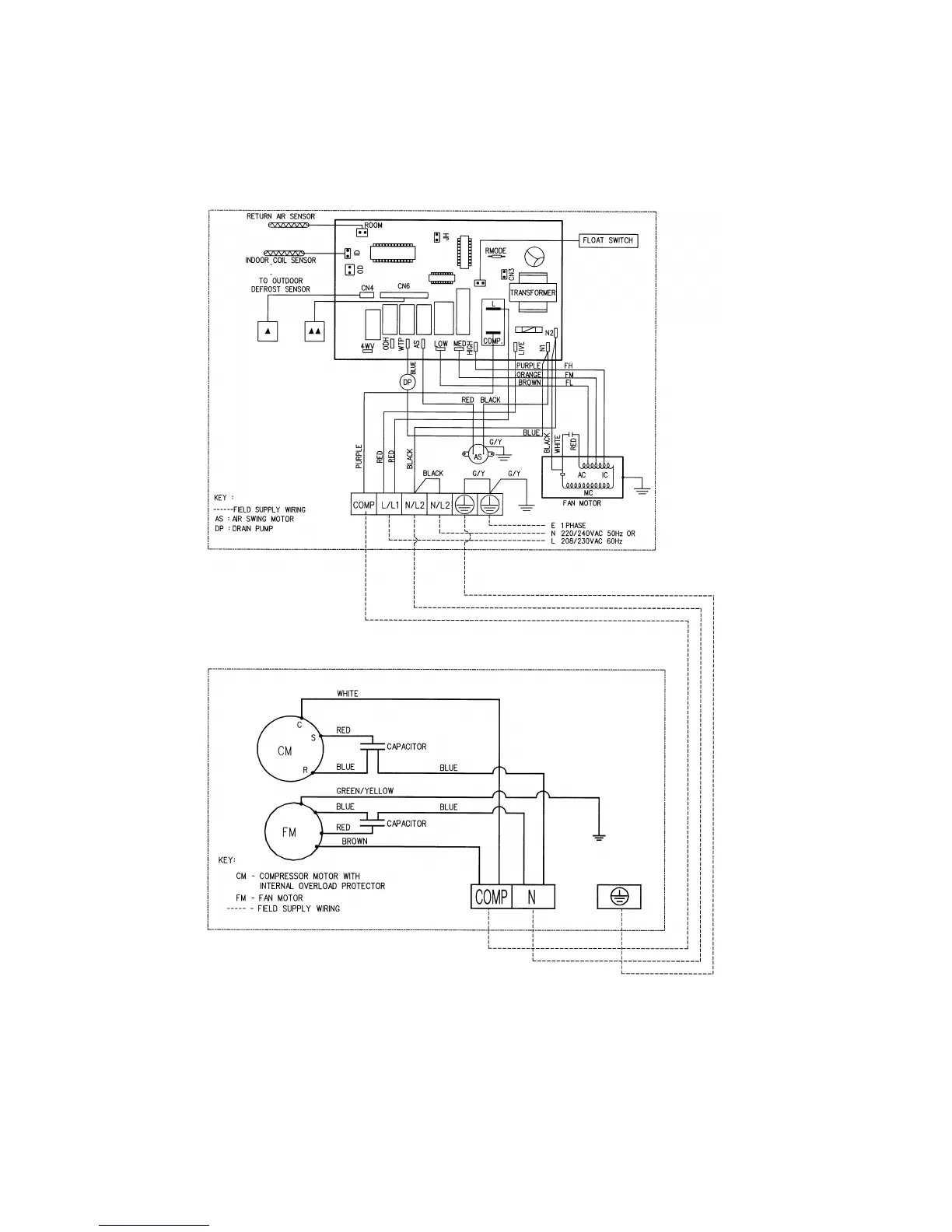

Wiring Diagrams
Indoor Unit (Cooling Only)
Model : MCK020/ 025A
Outdoor Unit
Model : MLC/ M4LC020/ 025B
▲ CN4 IS CONNECTED TO WIRED HANDSET
▲▲ CN6 IS CONNECTED TO SENSOR Sc INDICATOR LIGHT OF
WIRELESS HANDSET
REMARK = EITHER CN4 OR CN6 CAN BE CONNECTED AT ANY ONE TIME
44
