Displaying the assistance graphic
X
Select the Assistance Graphic function
using the on-board computer
(
Y page 227).
When the off-road program is activated,
symbol : appears in the assistance
graphic display.
Driving dynamics display (vehicles
with Off-Road Engineering package)
General notes
The driving dynamics display allows you to
see the selected drive program and additional
information about the vehicle's operating sta-
tus in the Audio 20 or COMAND display.
Vehicles with Audio 20:
R
Drive program selected
R
Angle of inclination
R
Steering angle
R
Uphill or downhill gradient in percentage
R
DSR status indicator
Vehicles with COMAND:
R
Drive program selected
R
Accelerator pedal position shown in %
R
Brake pedal position shown in %
R
Angle of inclination
R
Steering angle
R
Uphill or downhill gradient in percentage
R
Level control
R
Compass with angle scale
R
DSR status indicator

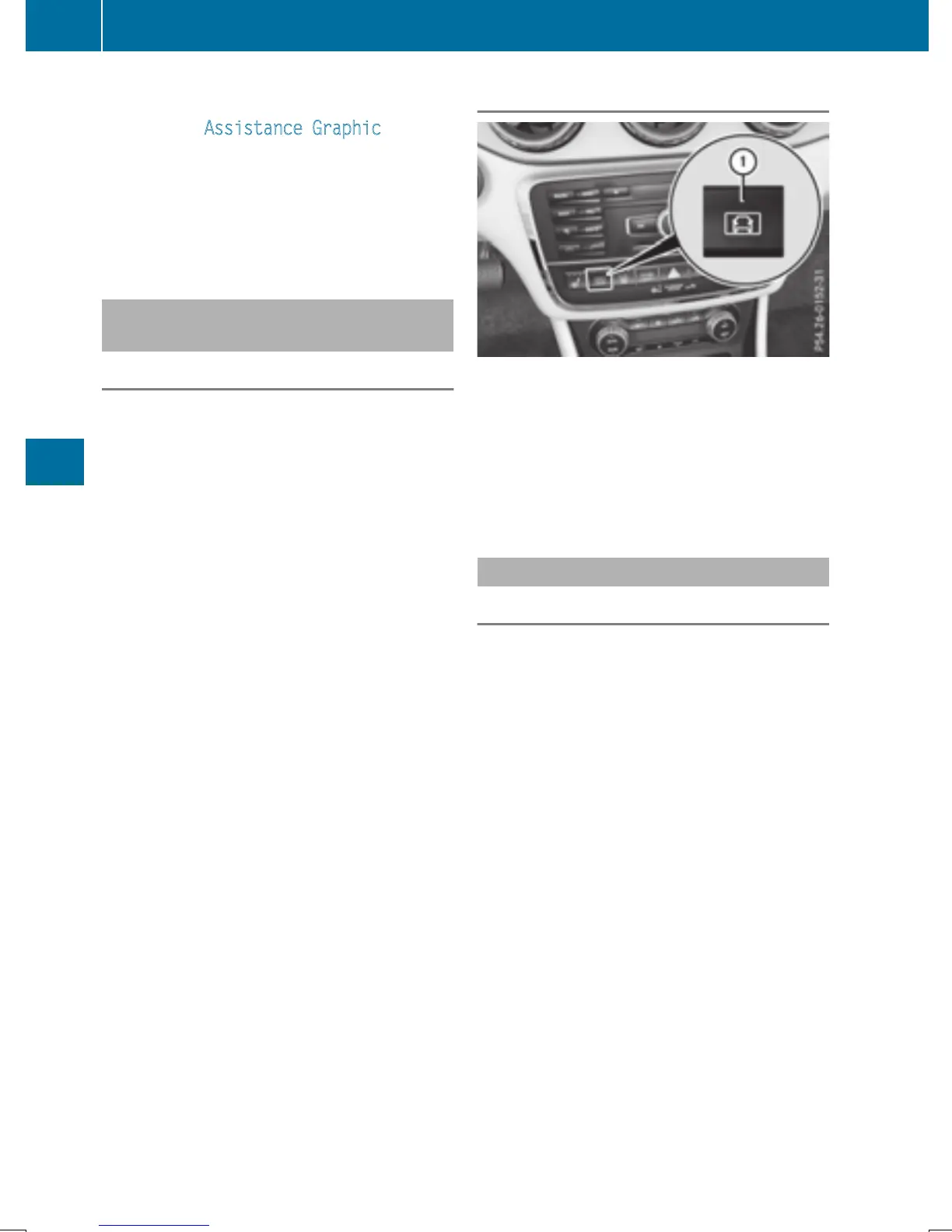

Activating the driving dynamics display
X
Switch on Audio 20 or COMAND; see the
separate Audio 20 or COMAND operating
instructions.
X
Press button :.
The driving dynamics display appears in the
Audio 20 or COMAND display.
PARKTRONIC
Important safety notes
PARKTRONIC is an electronic parking aid with
ultrasonic sensors. It monitors the area
around your vehicle using six sensors in the
front bumper and six sensors in the rear
bumper. PARKTRONIC indicates visually and
audibly the distance between your vehicle
and an object.
PARKTRONIC is only an aid. It is not a replace-
ment for your attention to your immediate
surroundings. You are always responsible for
safe maneuvering, parking and exiting a park-
ing space. When maneuvering, parking or
pulling out of a parking space, make sure that
there are no persons, animals or objects in
the area in which you are maneuvering.
!
When parking, pay particular attention to
objects above or below the sensors, such
as flower pots or trailer drawbars.
PARKTRONIC does not detect such objects
when they are in the immediate vicinity of
the vehicle. You could damage the vehicle
or the objects.
200
Driving systems
Driving and parking
