R
unlocking buttons R and L point in the
direction of travel.
R
latch = facing you is unlocked.
R
latch ; facing away from you is locked.
X
To unlock the latch: press unlocking but-
ton R or L on the locked latch.
X
To lock the latch: push the unlocked latch
upwards by hand until it engages.

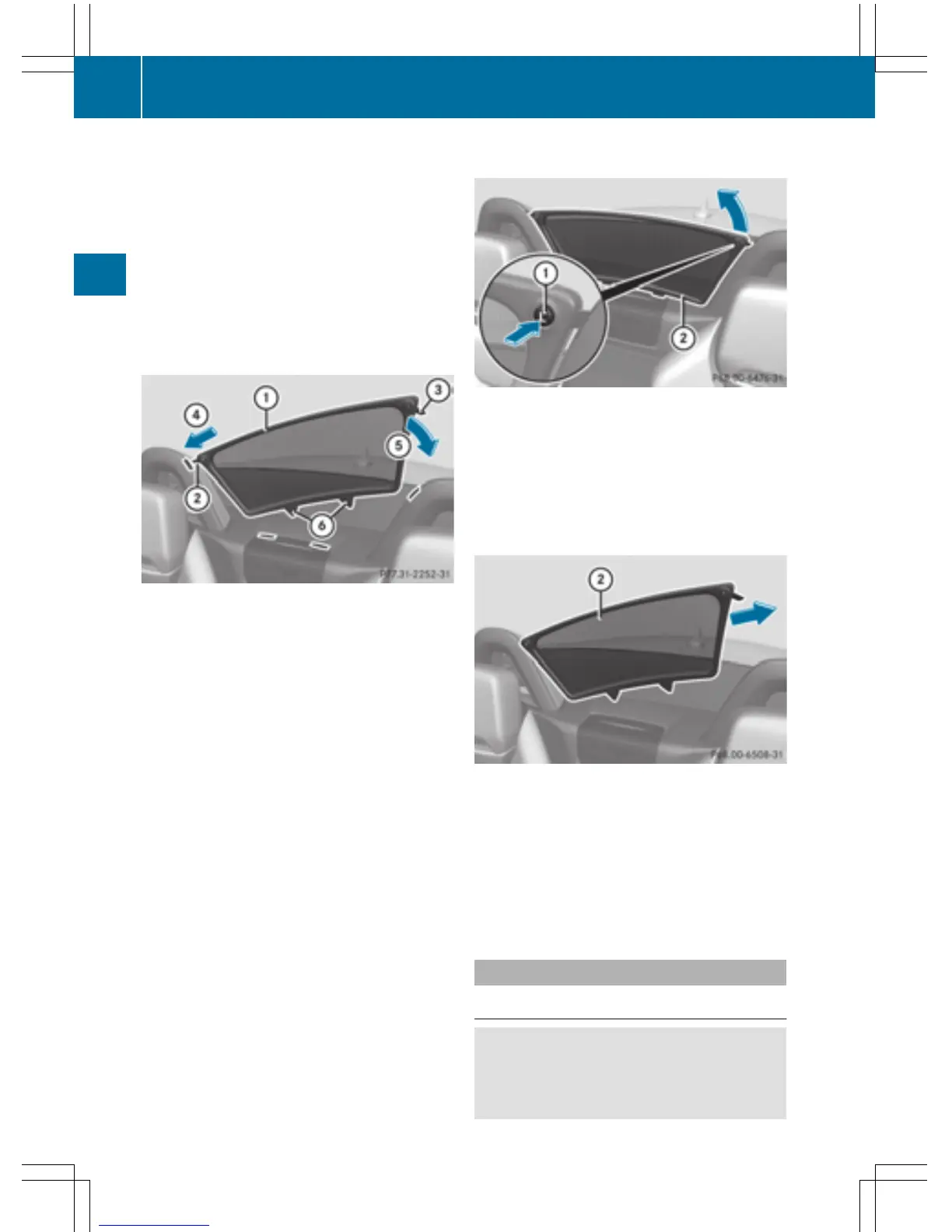

Installing
Installation from the left side of the vehicle (exam-
ple)
X
Stop the vehicle, paying attention to road
and traffic conditions.
X
Take the wind screen out of the trunk.
X
Prepare for installing (Y page 89).
X
Hold wind screen : at an angle and slide it
with locked latch ; in the direction of
arrow ? into the bracket of the opposite
roll bar.
X
Press wind screen : on the side of the
vehicle facing you downwards in the direc-
tion of arrow A until it engages.
Make sure that studs B and latch = fit
into the respective brackets.
X
Check whether wind screen : is fully
inserted into all four brackets and is sitting
securely.
X
If this is not the case, remove wind
screen : again and repeat the steps
above.
Removing
Removing from the left side of the vehicle (exam-
ple)
X
Stop the vehicle, paying attention to road
and traffic conditions.
X
Press unlocking button L :. Meanwhile,
pull wind screen ; on the side of the vehi-
cle facing you upwards and tilt it.
Removing from the left side of the vehicle (exam-
ple)
X
Pull wind screen ; out of the bracket of
the opposite roll bar in the direction of the
arrow.
X
Secure wind screen ; to the trunk floor by
the rubber strips (
Y page 256).
AIRGUIDE
Important safety notes
G
WARNING
You could lose control of the vehicle if you fold
AIRGUIDE in/out while the vehicle is in
motion. There is a risk of an accident.
90
Roof
Opening and closing
