Replacing bulbs
License plate lamp

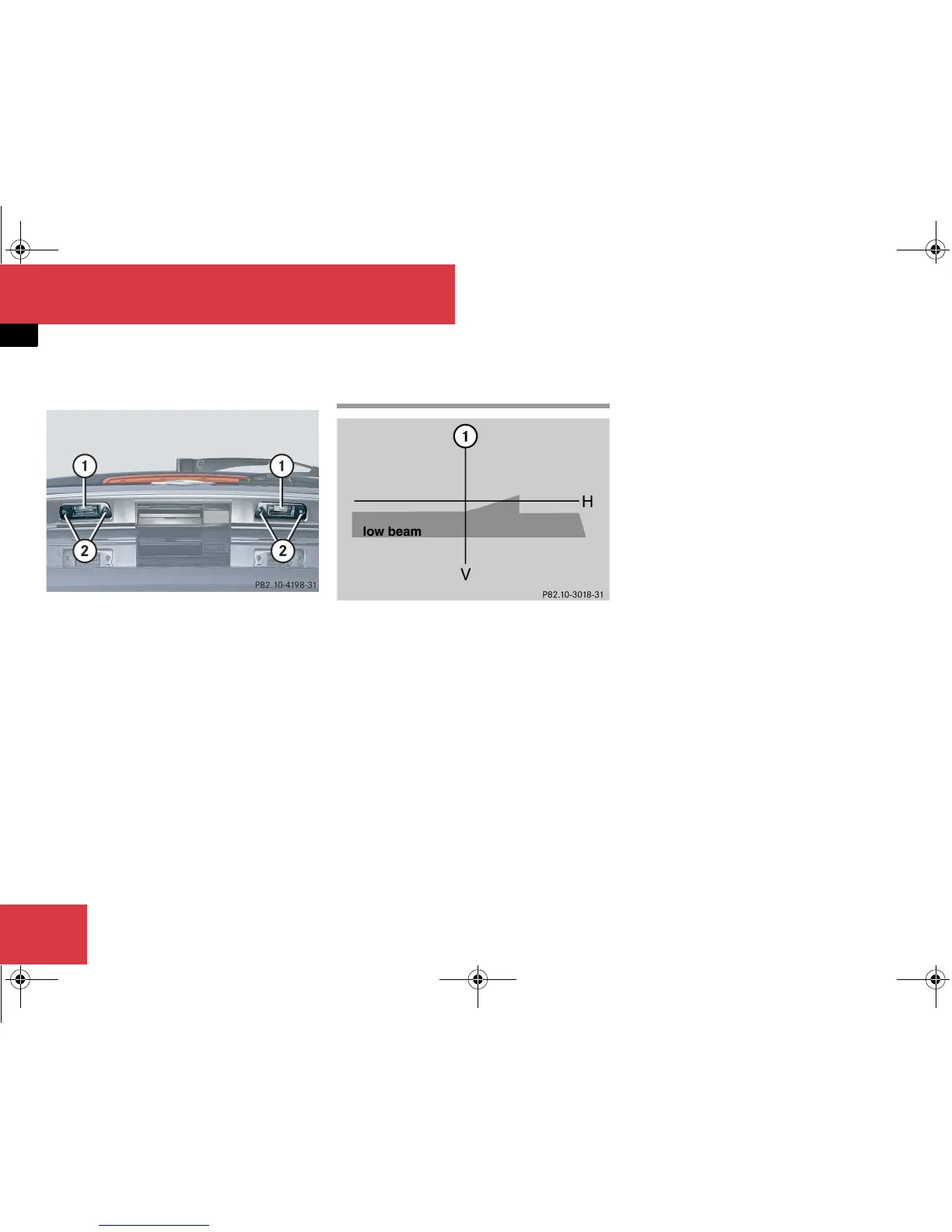

1 License plate lamp cover
2 Screws
왘 Loosen screws 2.
왘 Remove license plate lamp cover 1.
왘 Replace the tubular bulb.
왘 Reinstall license plate lamp cover 1.
왘 Retighten screws 2.
Adjusting headlamp aim
V Vertical centerline
H Headlamp mounting height, measured
from the center
Correct headlamp adjustment is extremely
important. To check and readjust a head-
lamp, follow the steps described:
왘 Park the vehicle on a level surface
25 feet (7.6 m) from a vertical test
screen or wall.
왘 Switch the headlamps on
(
컄 page 143).
If the beam does not show a beam pattern
as indicated in the figure left, then follow
the steps below:
왘 Open hood (컄 page 378).
i
High beam adjustments simultaneously aim
the low beam.
Vehicle should have a normal tailgate load.
