544
Practical hints
Fuses
Fuse box in engine compartment
The fuse box is located on the passenger
side of the engine compartment.
왘 Open the hood (컄 page 378).

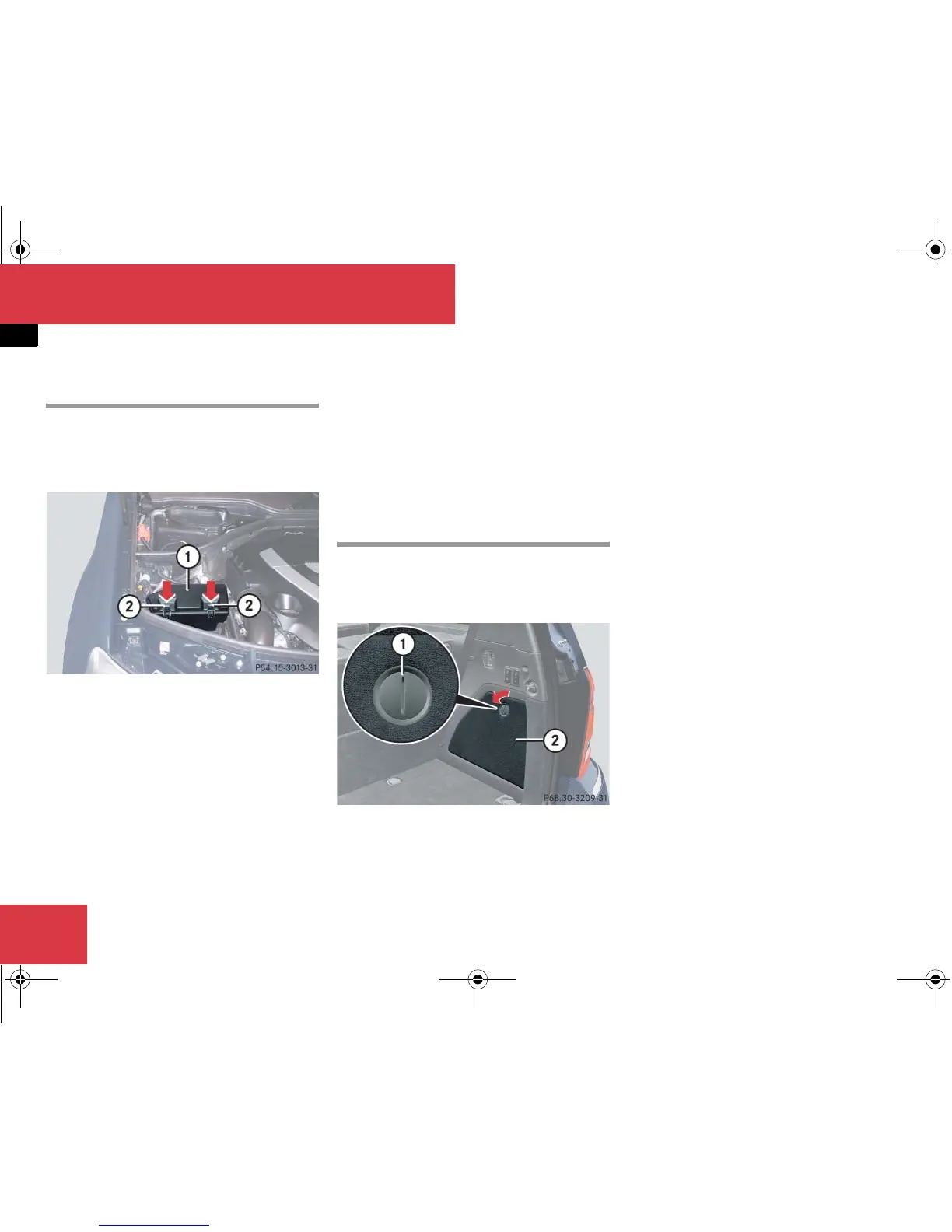

Fuse box GL 450 (GL 320 CDI, GL 550
similar)
1 Fuse box cover
2 Clamps
왘 Pull clamps 2 in direction of arrow.
왘 Lift fuse box cover 1 up.
왘 Install fuse box cover in reverse order.
왘 Close the hood after checking or re-
placing fuses (
컄 page 379).
Fuse box in cargo compartment
The fuse box is located in the cargo com-
partment behind the passenger side trim
panel.
1 Lock
2 Cover
Removing/installing cover
왘 Open the tailgate (컄 page 122).
왘 Insert a suitable object such as a coin
into the slot of lock 1 (
컄 page 544).
왘 Turn lock 1 counterclockwise by 90°
in direction of arrow.
왘 Remove cover 2.
왘 Install cover 2 in reverse order.
!
The fuse box cover must be installed
properly to prevent moisture and/or dirt from
entering the fuse box and possibly impairing fuse
operation.
164.boo Seite 544 Freitag, 30. März 2007 12:54 12
