The electrical wiring circuits on the outboard are protected from
overload by fuses in the wiring. If a fuse is blown, try to locate and
correct the cause of the overload. If the cause is not found, the fuse
may blow again.
Open the fuse holder and look at the silver colored band inside the
fuse. If band is broken, replace the fuse. Replace fuse with a new
fuse with the same rating.
2
0
2
0
5
2
0
a
b
c
d
e
f
3381

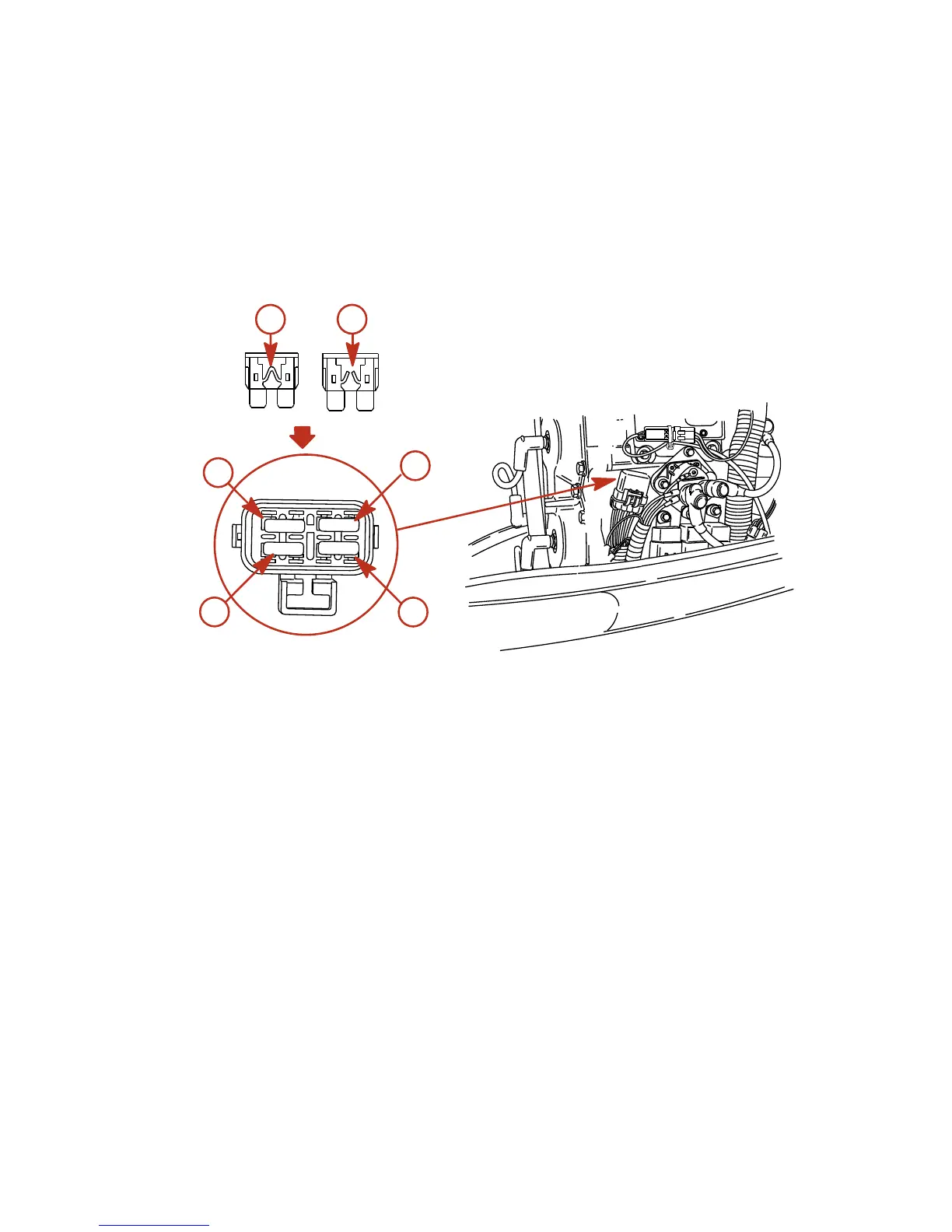

a - Good fuse
b - Blown fuse
c - SmartCraft data bus circuit ‑ 5 AMP fuse
d - Accessories ‑ 20 AMP fuse
e - Ignition coil circuit ‑ 20 AMP fuse
f - Electric fuel pump/ECM driver power/oil pump circuit ‑ 20
AMP fuse
Corrosion Control Anode
Your outboard has corrosion control anodes at different locations.
An anode helps protect the outboard against galvanic corrosion by
sacrificing its metal to be slowly corroded instead of the outboard
metals.
