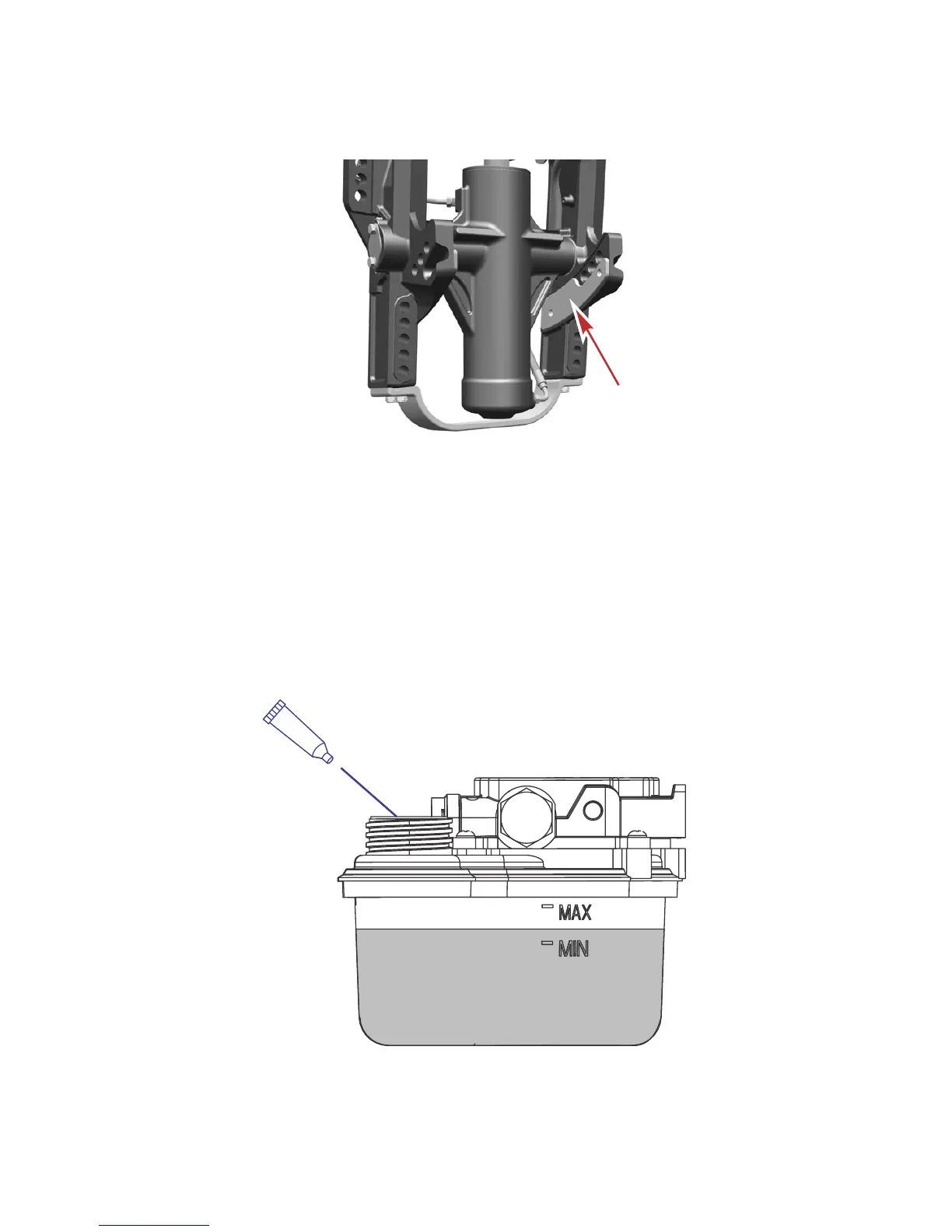

IMPORTANT: When replacing the thrust guide wear pads, replace both pads
and install new retaining hardware.
Checking Power Trim Fluid (Single‑Ram Trim)
1. Trim the outboard in the full down/in position.
2. Check the fluid level in the trim pump reservoir. The level should be
between the minimum ("MIN") and the maximum ("MAX") level on the
reservoir.
3. If necessary, remove the yellow fill cap and add Power Trim and Steering
Fluid until the level in the reservoir reaches the minimum level. It is
acceptable to fill the reservoir beyond the minimum level, but do not
overfill past the maximum level.
