OUTBOARD INSTALLATION
111
Trim‑In Stop Adjustment ‑ Power Trim Models

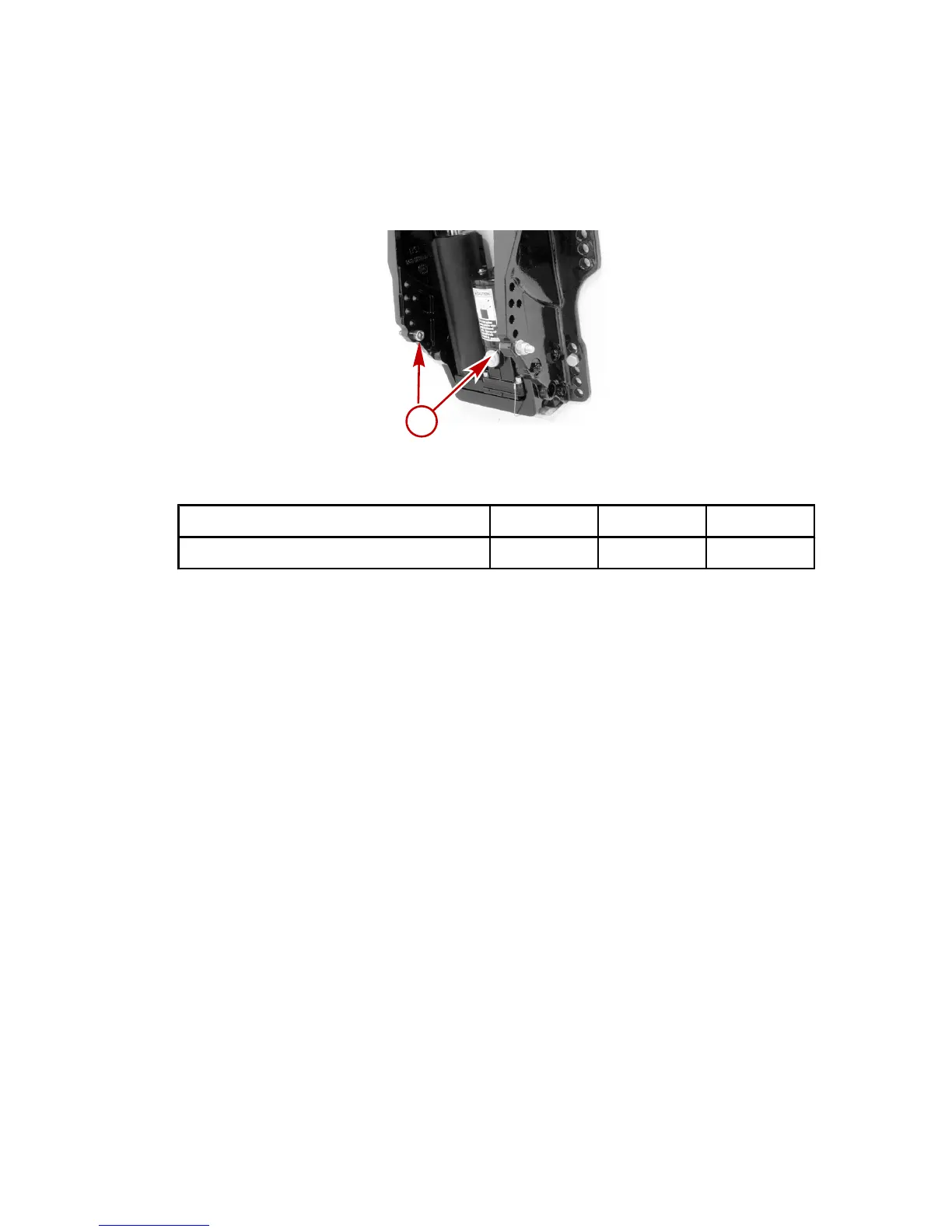

If an adjustment is required to the trim‑in stop, reposition the tilt
stop pins in the desired holes. Tighten the tilt stop pins to the
specified torque.
a - Tilt stop pins
Description Nm lb. in. lb. ft.
tilt stop pins 24.4 18
Water Testing
CHECKING FOR CAVITATION
The initial outboard height setting should be close to the optimum
setting for the outboard. However, because of the hull design of
some boats, obstructions, or imperfections in the hull ahead of the
water intake, adjustments may be required to prevent cavitation at
running speeds.
When operating the boat, the outboard driveshaft housing should
be vertical, or tilted toward the boat, when planing to provide a
scooping angle on the water intake. Tilting the outboard out beyond
a vertical position reduces the scoop angle and can cause impeller
slippage and cavitation.
IMPORTANT: If the angle of the boat transom does not allow the
driveshaft housing to be positioned vertical, a wedge kit should be
installed behind the transom brackets to increase the tilt‑in angle.
NOTE: Slight cavitation in sharp turns and rough water is
acceptable, but excessive cavitation is harmful to the outboard and
should be avoided.
