FEATURES & CONTROLS
27
Remote Control Features

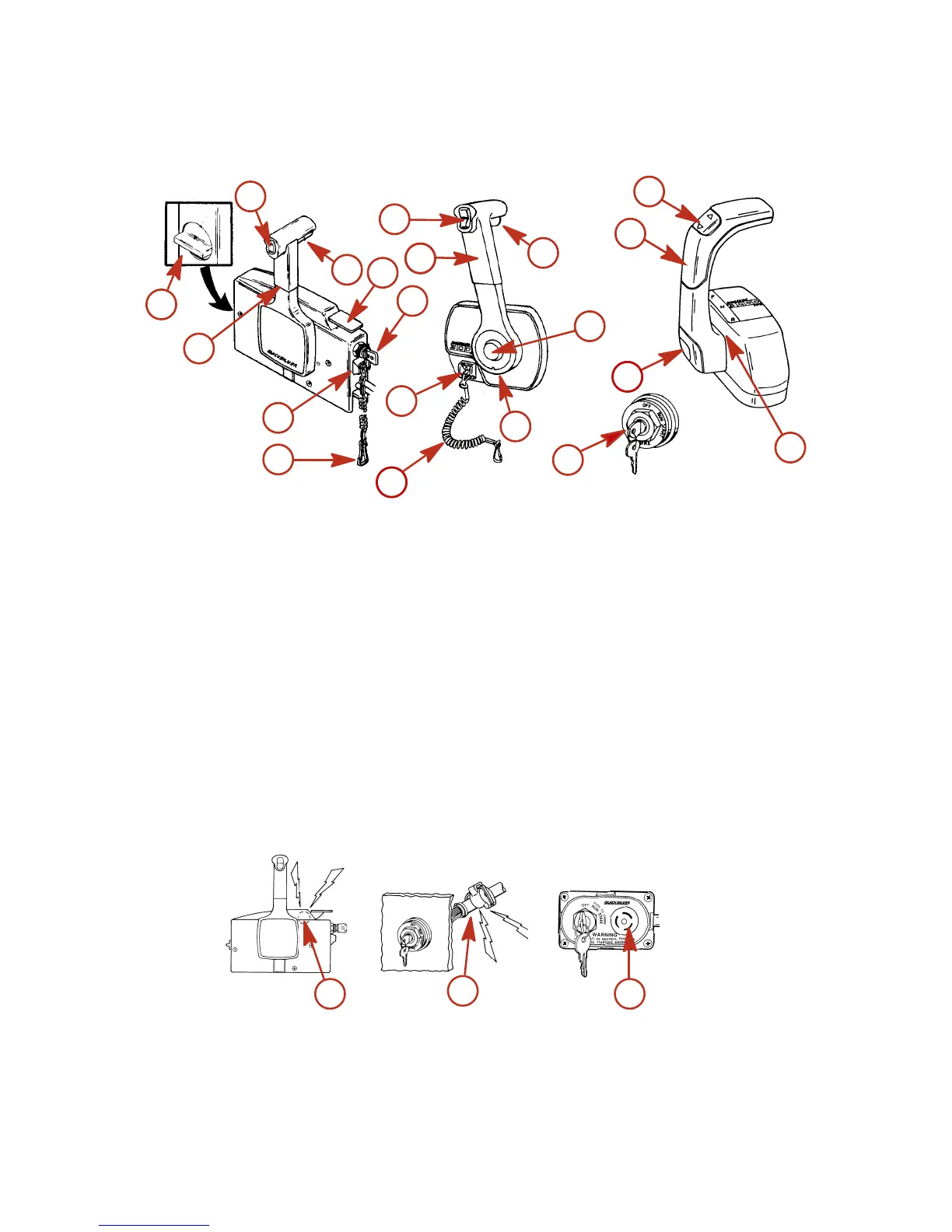

Your boat may be equipped with one of the Mercury Precision or Quicksilver remote controls shown. If not, consult
your dealer for a description of the functions and operations of the remote control.
a - Control handle - forward, neutral, reverse.
b - Neutral release lever
c - Trim/tilt switch (if equipped). - Refer to Features & Controls - Power Trim and Tilt.
d - Lanyard stop switch - Refer to General Information - Lanyard Stop Switch.
e - Lanyard - Refer to General Information - Lanyard Stop Switch.
f - Throttle friction adjustment - Console controls require cover removal for adjustment.
g - Ignition key switch - off, on, start.
h - Fast idle lever - Refer to Operation - Starting the Engine.
i - Throttle only button - Refer to Operation - Starting the Engine.
Warning System - Electric Start Models
WARNING SYSTEM
The outboard warning system incorporates a warning horn inside the boat. Remote control models will have the
warning horn located inside the remote control or connected to the ignition key switch. Tiller handle models will
have the warning horn located in the ignition key panel.
a - Horn inside remote control
b - Horn connected to ignition key switch
c - Horn in ignition key panel
