a - Tighten friction b - Loosen friction
REMOTE STEERING MODELS

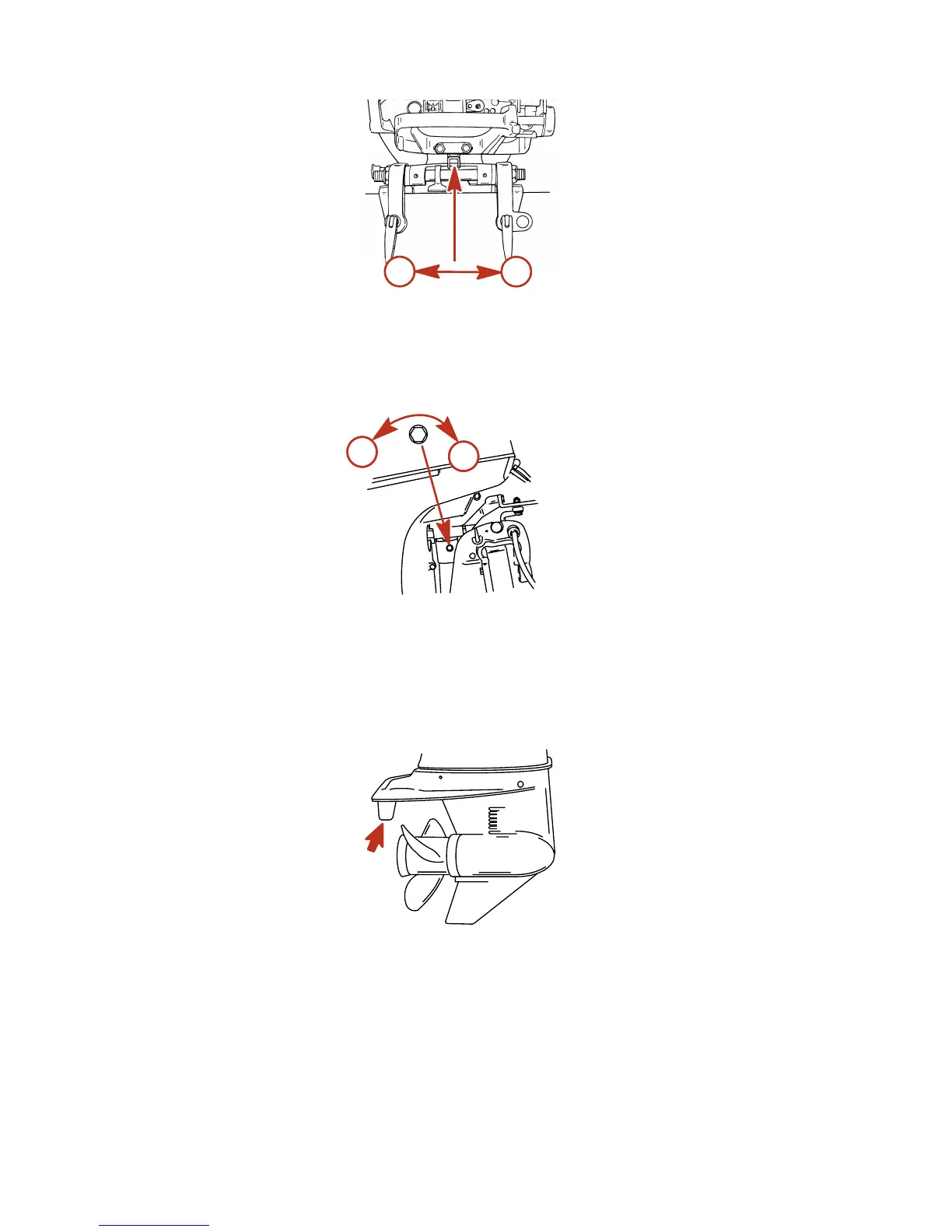

Steering Friction Adjustment - Adjust this screw to achieve the desired steering friction (drag) on the steering wheel.
Turn screw clockwise to tighten friction or turn counterclockwise to loosen friction.
a - Loosen friction b - Tighten friction
Trim Tab Adjustment
Propeller steering torque will cause your boat to pull in one direction. This steering torque is a normal result from
your outboard not trimmed with the propeller shaft parallel to the water surface. The trim tab can help to compensate
for this steering torque in many cases and can be adjusted within limits to reduce any unequal steering effort.
NOTE: Trim tab adjustment will have little effect reducing steering torque if the outboard is installed with the
anti-ventilation plate approximately 50 mm (2 in.) or more above the boat bottom.
MODELS WITHOUT POWER TRIM
Operate your boat at normal cruising speed trimmed to desired position by installing the tilt pin in the desired tilt
pin hole. Turn your boat left and right and note the direction the boat turns more easily.
If adjustment is necessary, loosen trim tab bolt and make small adjustments at a time. If the boat turns more easily
to the left, move the trailing edge of trim tab to the left. If the boat turns more easily to the right move the trailing
edge of trim tab to the right. Retighten bolt and retest.
