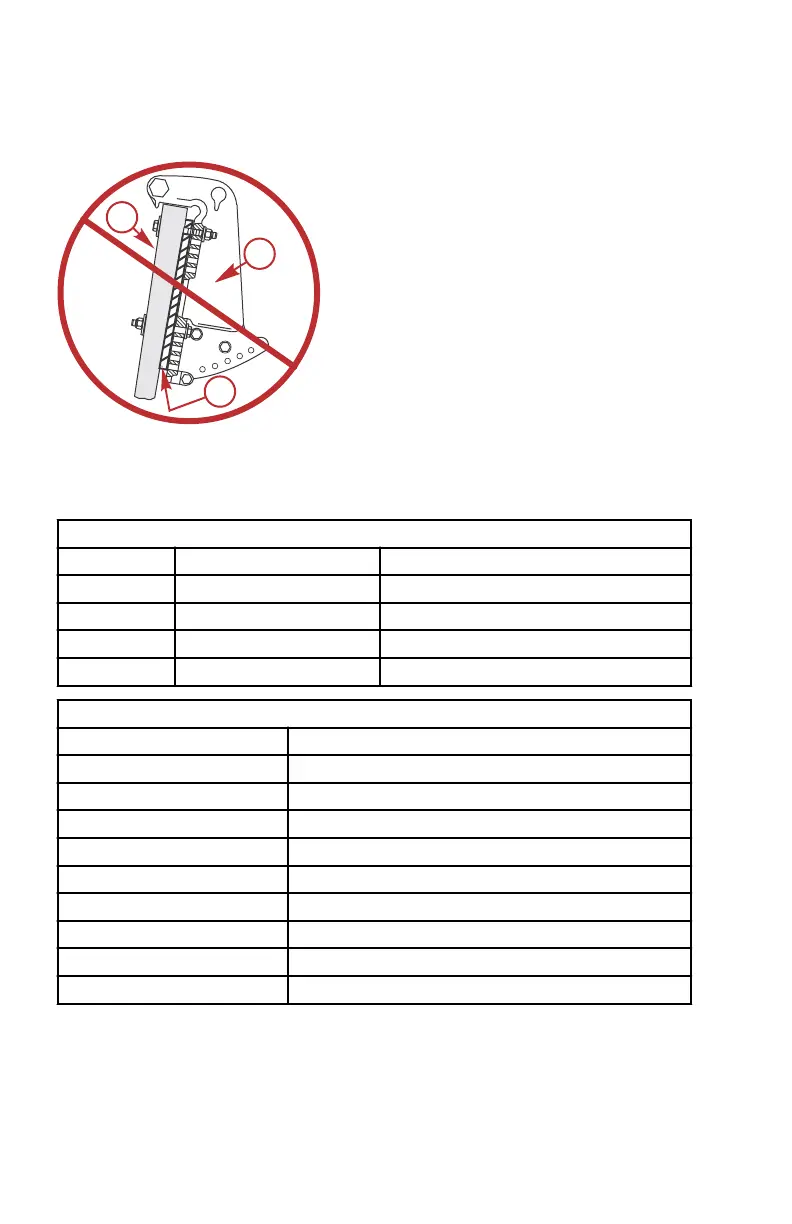

3. Do not install wedges or plates between the transom clamp brackets and

the transom (or jack plate). Refer to Figure 4.

Figure 4

a - Boat transom or jack plate

b - Transom clamp bracket

c - Wedge/plate

Fastening the Outboard to the Transom

MOUNTING BOLTS

Outboard Transom Mounting Hardware ‑ Supplied with Outboard

Part Number Part Name Description

8M0071543 Outboard mounting bolt ½‑20 x 5.00 in. long (3.25 in. thread)

826711‑17 Nylon insert locknut ½‑20

28421 Flat washer 1.50 in. diameter

54012 Flat washer 0.875 in. diameter

Available Outboard Mounting Bolts

Part Number Description

67755005 ½‑20 x 2.50 in. long (1.25 in. thread)

67755006 ½‑20 x 3.50 in. long (1.25 in. thread)

814259 ½‑20 x 4.00 in. long (2.25 in. thread)

67755‑1 ½‑20 x 4.50 in. long (2.25 in. thread)

8M0071543 ½‑20 x 5.00 in. long (3.25 in. thread)

8M0038370 ½‑20 x 5.50 in. long (3.25 in. thread)

67755‑2 ½‑20 x 6.50 in. long (2.75 in. thread)

8M0028080 ½‑20 x 7.50 in. long (2.75 in. thread)

8M0032860 ½‑20 x 8.00 in. long (2.75 in. thread)

54058

ENGINE INSTALLATION

84 eng
