STARTING SYSTEM

SERVICE MANUAL NUMBER 23

90-861326--1 MARCH 1999 Page 4A-27

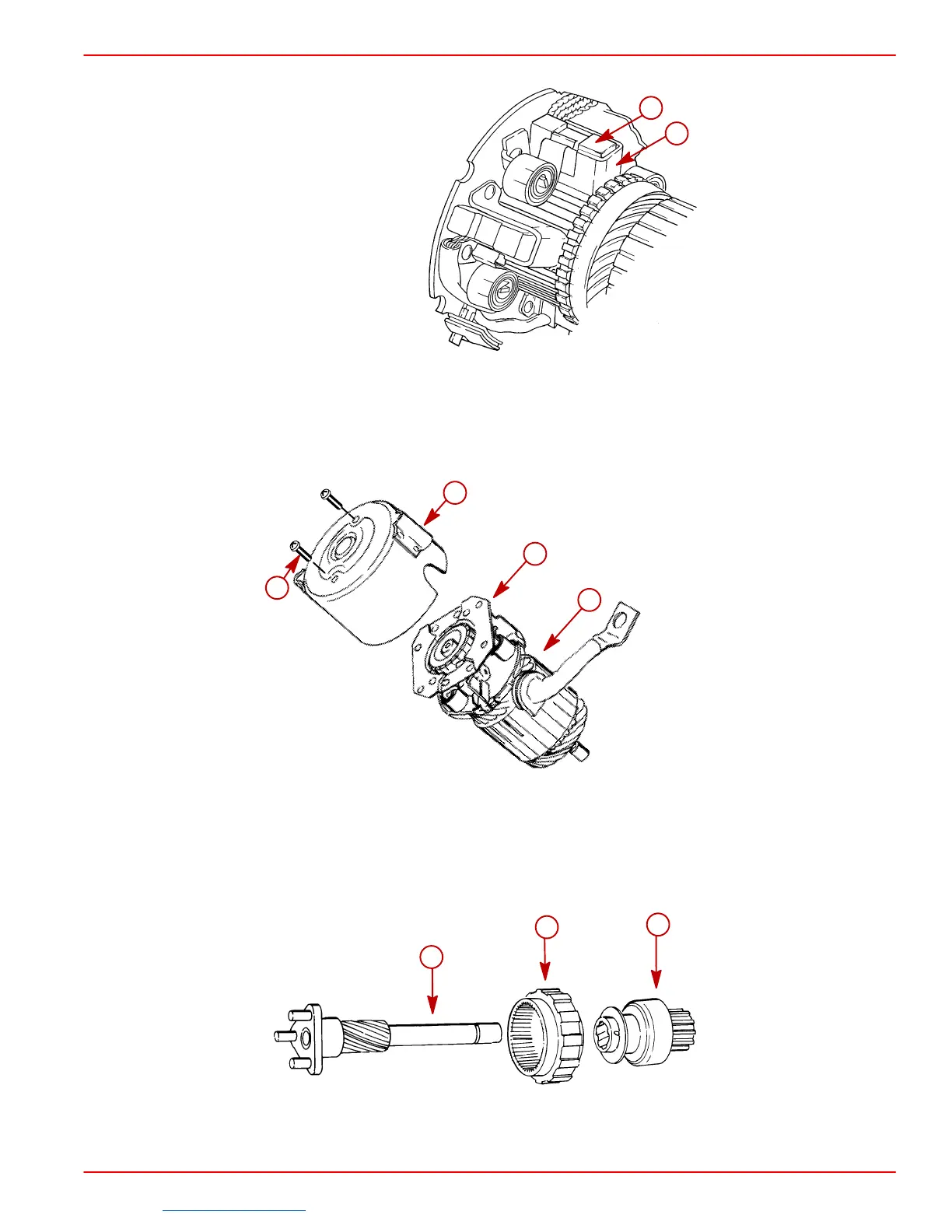

2. Place brush holder on armature and remove pieces of wires from brush holder.

72069

a-Brush Holder

b-Brush

Reassembly

1. Install end frame on brush holder. Align holes of end frame with holes of brush holder.

Tighten screws securely.

a-Screw (2)

b-End Cap

c-Brush Holder

d-Armature

2. Install gear and drive over planetary gear shaft.

74087

a-Planetary Gear Shaft Assembly

b-Gear

c-Drive
