Mercury VesselView 702 User Manual

Section 3 - Autopilot Features and Operation
Page 64 90-8M0109374 eng JUNE 2016

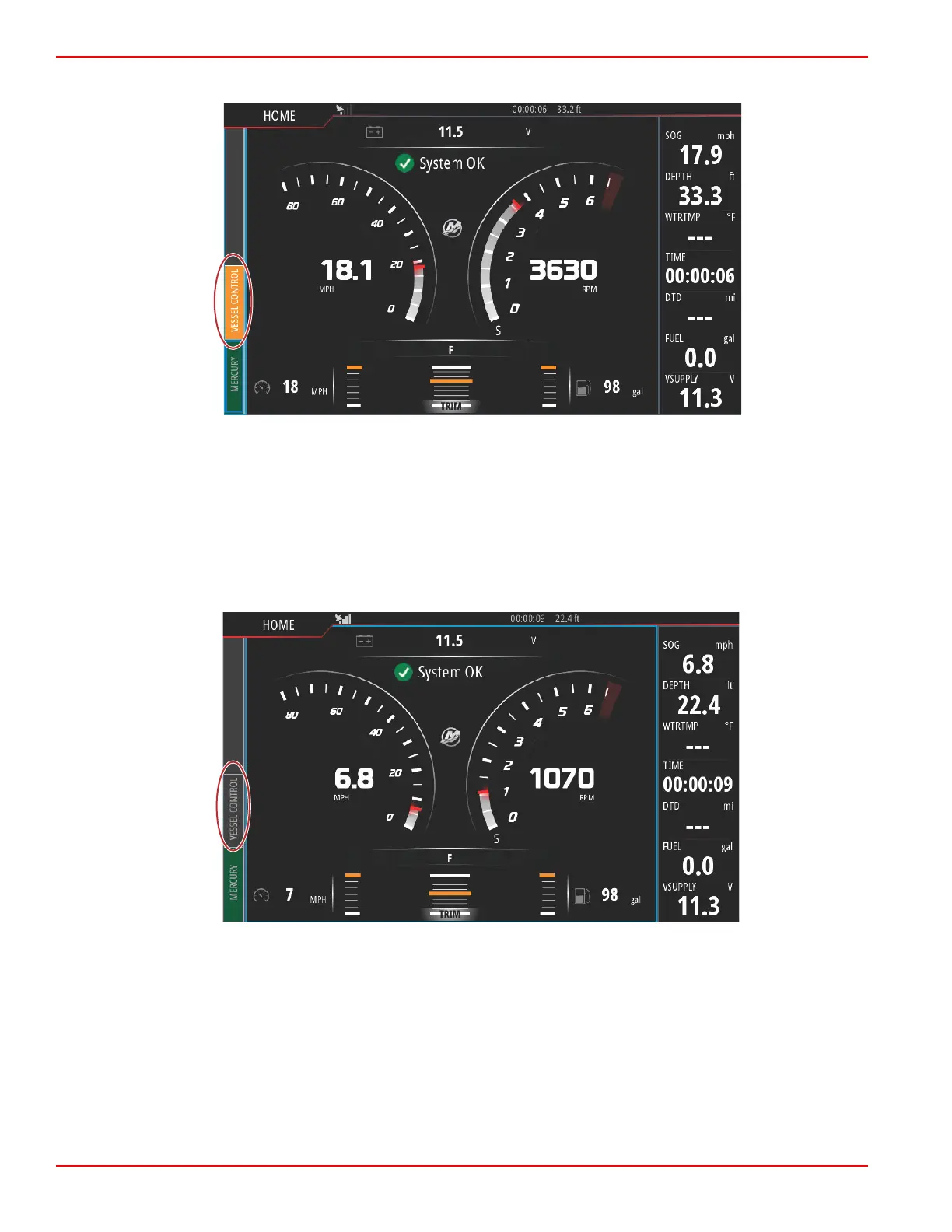

When Cruise is active the Vessel Control tab will be orange, alerting the operator that the vessel is in an autopilot control mode.
61771
Cruise Control mode can be cancelled by placing the remote control handles in the neutral position or by selecting the Disable
tile in the bottom of the Cruise Control bar. To access the Disable tile, select the Vessel Control tab on the left‑hand side of the
screen, this will bring up the Cruise Control bar and the Disable option.
Troll Control Mode
Troll Control
Troll RPM ranges are power package dependant, but the maximum RPMs for all engines or outboards is 1000 RPM.
To activate Troll Control, select the Vessel Control tab on the left‑hand side of the screen.
61757

Mercury VesselView 702 Specifications

General

Brand	Mercury
Model	VesselView 702
Category	Marine Equipment
Language	English
