Ser
vice Manual_2018-V2
.0
23

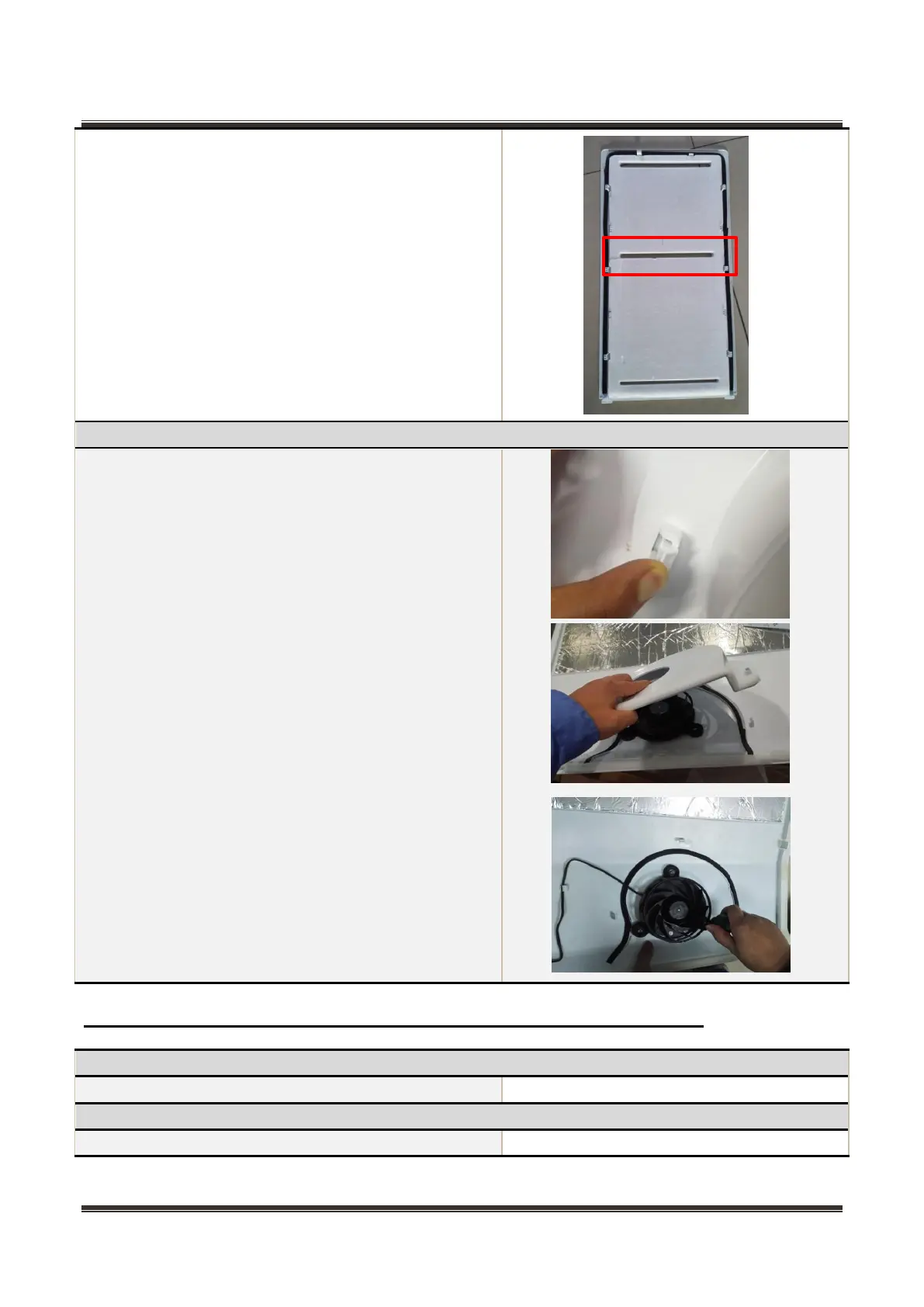

Fan motor of
air duct
1)
Press the buckle
and uncov
er the back cov
er
2)
Grab the lid and
take it off the
fridge
3)
Remove the screw
and remove the
fan from the
refrigerator
8.5
A
ir
duct components in refrigerating chamber and fan motor(None)
Air duct
compone
nts in freezin
g chamber
None
Fan motor of
air duct
None
22
24
Table of Contents
Default Chapter
3
Table of Contents
3
1 Significant Update Notes(None)
5
2 Safety Warning Code
6
Warning for Operation Safety
6
Safety Instruction for Refrigerant
8
3 Transport
9
Container Transport
9
Handling
10
4 Installation and Commissioning
11
Door Disassembly and Assembly(None)
11
Installation Location
11
Leveling of the Refrigerator
11
Left or Right Open Door Reversal(None)
12
Installation of Handle
12
Installation of Door Lock（None
12
5 Product Configuration and Dimension
13
Main Parts and Their Names
13
External Dimension
14
Location of S/N
15
6 Product Specification
16
Electrical Parameters
16
Cooling Temperature Setting Range
16
Defrosting Parts
17
Circuit Diagram
17
Main Control Board Structure Diagram
18
7 Refrigerating Piping System and Circulating Route of Cooling Air
19
Refrigerating Piping System
19
Special Soldering Position
19
Circulating Route of Cooling Air
20
8 Dismantling of Parts
21
Parts on the Door
21
Parts Inside the Refrigerator
21
Light System
22
Air Duct Components Freezing Chamber and Fan Motor
22
Air Duct Components in Refrigerating Chamber and Fan Motor(None)
23
Evaporator and Defrost System
24
Compressor Case
25
Display Control Board
29
Main Control Board
30
Water Dispenser （None
30
Ice Maker (None)
31
Water Filter Component (None)
31
9 Temperature Sensing System
32
Position of Sensors
32
Replacement of Sensors
32
Sensor Replacement
33
Sensor Resistance(R/T)
34
10 Function and Operation
36
Operation Panel
36
Display
36
Temperature Setting
37
Fault Alarm Display and Processing
37
Led Module Control
40
Quick Freezing Mode
40
Defrosting Function
41
Maintenance Mode
41
First Power-On and Memory Function
42
11 Compressor and Fan
43
Compressor Startup and Shutdown Control Rules
43
Fan Opening and Closing Control
43
12 Troubleshooting Method
44
No Cooling (Air Cooling-Electronic)
44
No Working of Compressor
45
Inside Frosting, no Defrosting
45
Inside Frosting, no Defrosting-Maintenance Guidelines
46
Light Is Not on
47
Fan Failure
47
Defective Defrost Circuit
48
Noise
48
Air Duct Not Operated(Electronically) (None)
49
13 Figures and Details of Repair Parts
50
