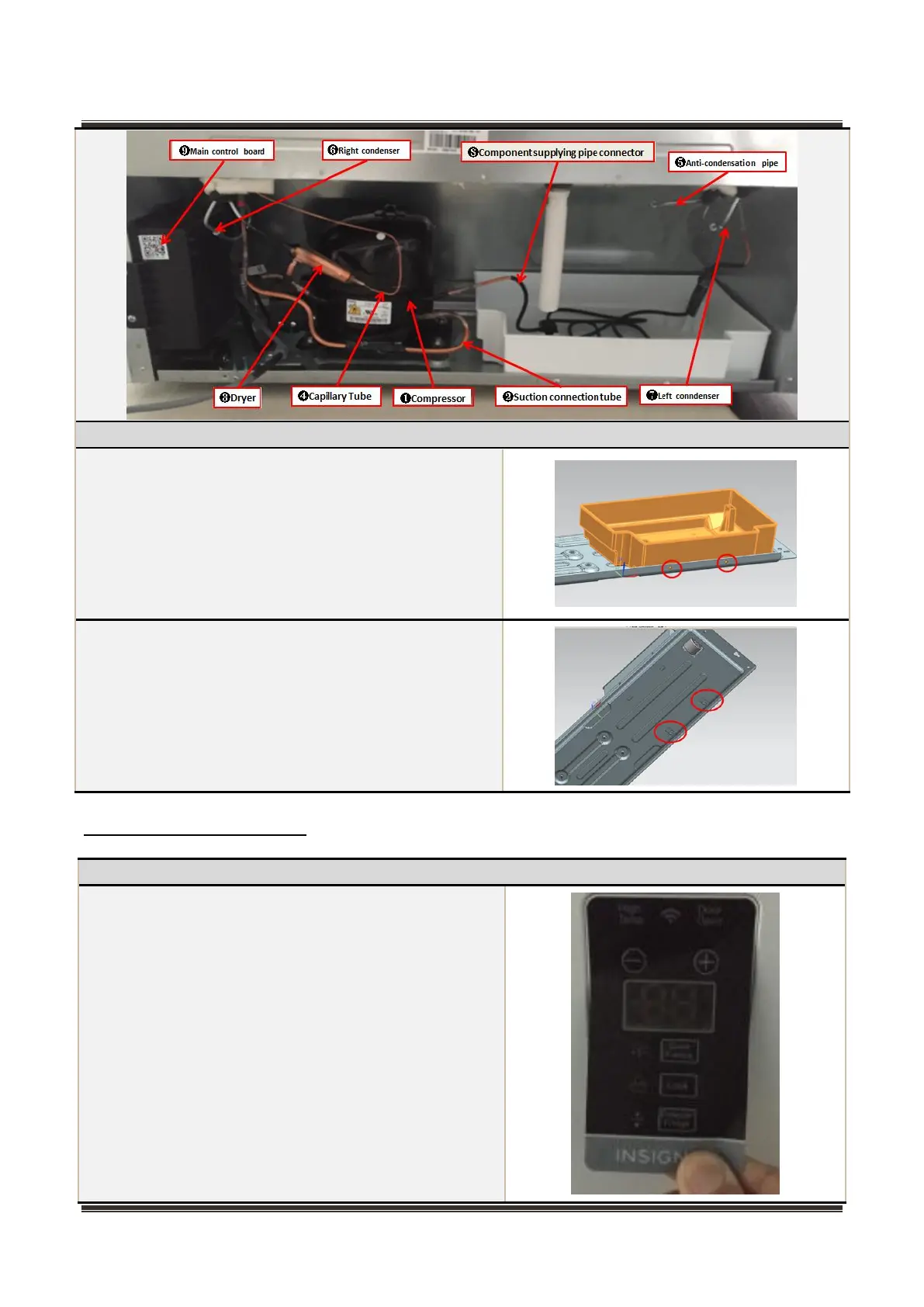

Drain tray
1）Disengage the drain tray buckle out of the compressor
bottom plate installation hole.
2）Replace the drain tray, the reverse process can
complete installation.
8.8 Display control board
Display control board
1） Uncover the temperature control indication sticker
on the cover plate of the air duct;
2） Gently pry out the PCB installation box with a
straight screwdriver to get the master control board
and installation box components;
3） Pry open the buckle of the PCB installation box
with a straight screwdriver to see the PCB board;
4） Remove 2 screws using a cross screwdriver to
remove the master control board;
5） Pull out the connector terminal and replace the
master control board in reverse steps;
*The temperature control indication sticker is likely to be
damaged when replacing PCB, thus it is advised to
