9.5 Sensor resistance(R/T)
Tx(℃)
R（KΩ）
Tx(℃)
R（KΩ）
Tx(℃)
R（KΩ）
Tx(℃)
R（KΩ）
Tx(℃)
R（KΩ）
-30
33.81
-15
14.31
0
6.495
15
3.141
30
1.617
-29
31.85
-14
13.55
1
6.175
16
2.999
31
1.55
-28
30.01
-13
12.83
2
5.873
17
2.865
32
1.486
-27
28.29
-12
12.16
3
5.587
18
2.737
33
1.426
-26
26.68
-11
11.52
4
5.315
19
2.616
34
1.368
-25
25.17
-10
10.92
5
5.06
20
2.501
35
1.312
-24
23.76
-9
10.35
6
4.818
21
2.391
36
1.259
-23
22.43
-8
9.82
7
4.589
22
2.287
37
1.209
-22
21.18
-7
9.316
8
4.372
23
2.188
38
1.161
-21
20.01
-6
8.841
9
4.167
24
2.094
39
1.115
-20
18.9
-5
8.392
10
3.972
25
2.005
40
1.071
-19
17.87
-4
7.968
11
3.788
26
1.919
41
1.029
-18
16.9
-3
7.568
12
3.613
27
1.838
42
0.9885

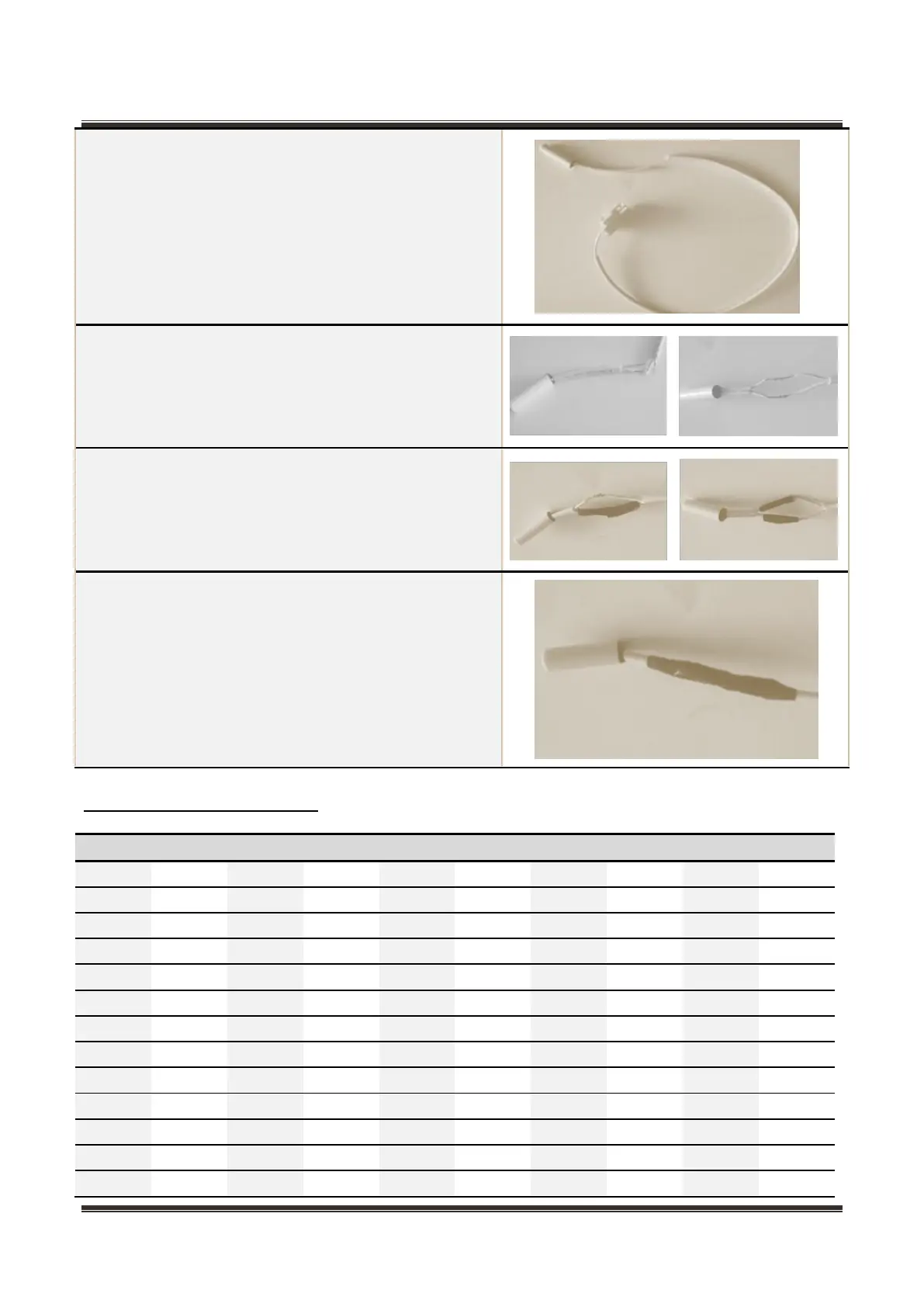

Take out a new sensor to cut the head of sensor.
(Spare parts code：11201007000795) Its technical
specifications apply to all MIDEA refrigerators.
Strip off the head of the sensor and connect it.
Wrap the two wires together with insulation tape.
Wrap the two wires together.
