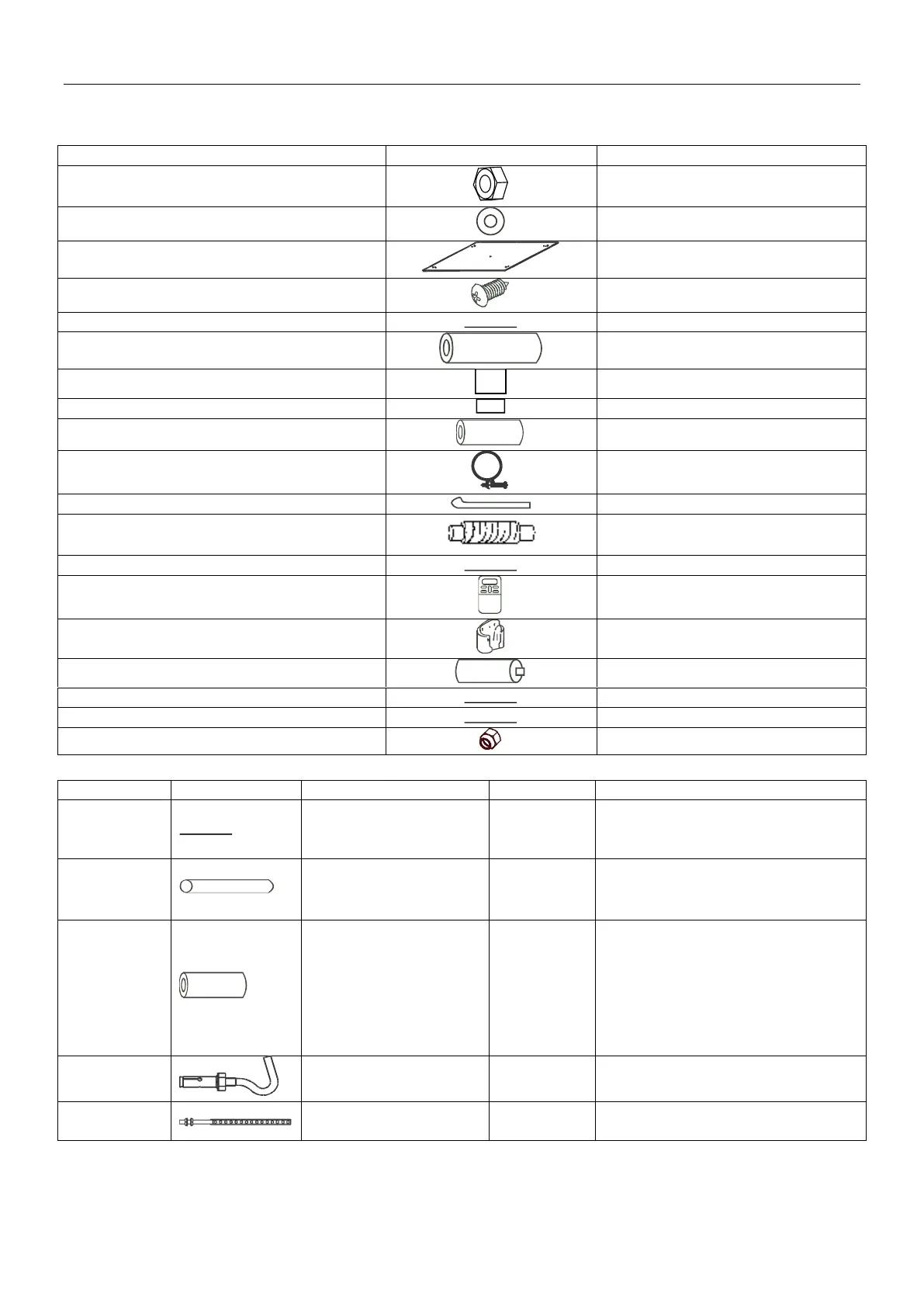

10. Accessories
Attached accessories
Name
Shape
Quantity
Nut
8
Washer
8
Installation paper board
1
Bolt M6
4
Connection pipe
1
Soundproof / insulation sheath
2
Sponge (250×250×10)
1
Sponge (60×100×5)
1
Outlet pipe sheath
1
Outlet pipe clasp
1
Tightening band
5
Flexible hose tube
1
Signal line
1
Remote controller
1
Frame
1
Alkaline dray batteries (AM4)
2
Remote controller operation manual
1
Installation manual
1
Copper (use for pipe connection)
1
Local purchased accessories
Name
Shape
Specification
Quantity
Remark
Copper pipe
Liquid pipe & gas pipe
Refer to specifications.
According to
actual needs
Use for connecting the indoor unit
refrigerant system, suggest to use
flexible copper pipe (T2M)
PVC pipe
external diameter is about
37～39mm, inner diameter
is 32mm.
According to
actual needs
Use for draining the water in the indoor
unit
Heat insulation
casing pipe
Inner diameter corresponds
with the copper pipe and
PVC pipe, the thickness
should be 10mm (above),
and it should be thicker
when in the close humid
area.
According to
actual needs
Use for preventing the condensate water
Expansible
hook
M10
4
Use for the installation of the indoor unit,
please purchase from the market
Installation
hook
M10
4
Use for the installation of the indoor unit,
please purchase from the market
