MCAC-VTSM-2017-01 Silent Four-way Cassette
86

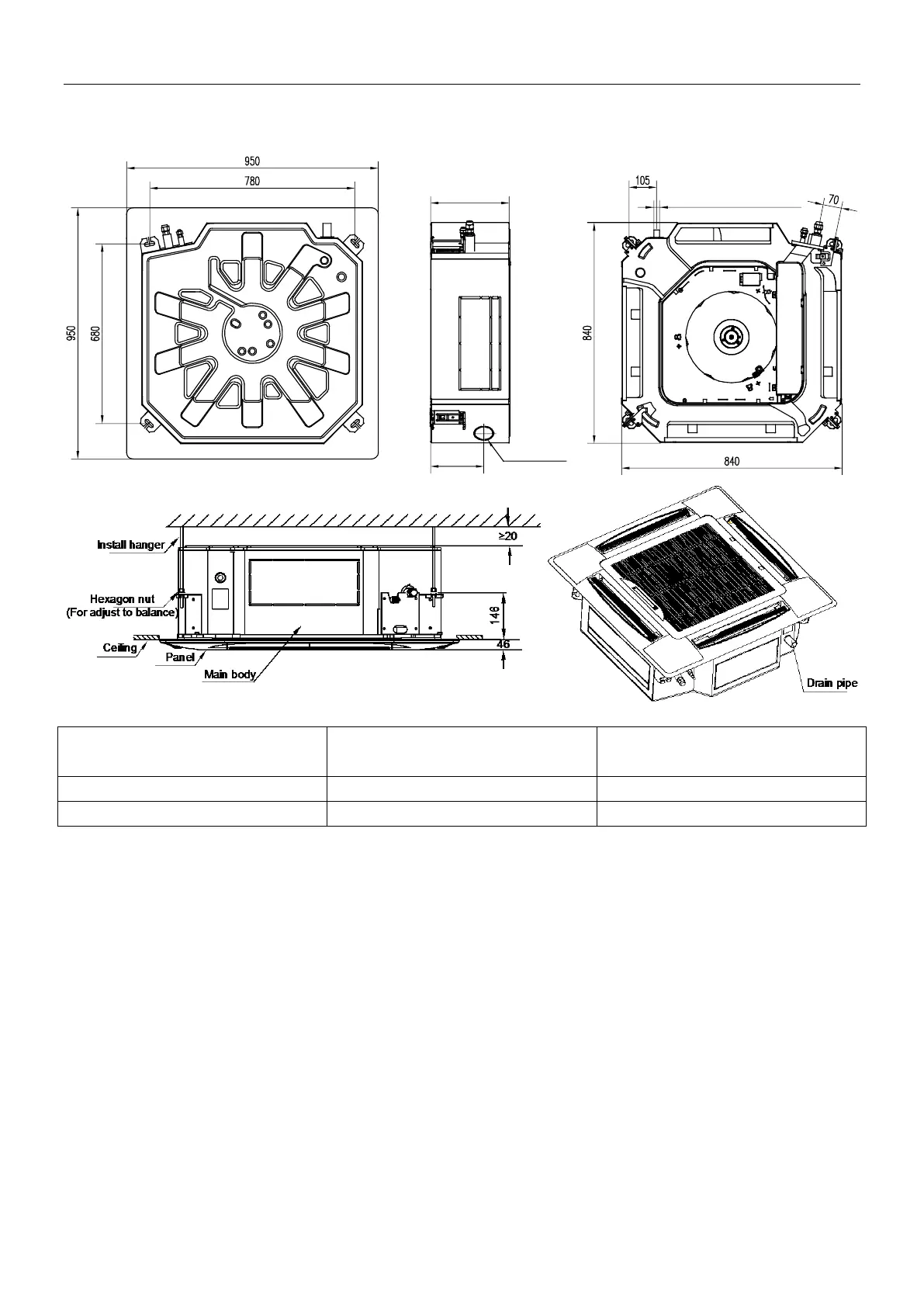

3. Dimensions
Unit：mm
Model
A
mm
B
mm
≤8kW
230
126
≥9kW
300
197
Φ75 Fresh air
supply orifice
φ32 Drain pipe
A
B
