Exploded View MCAC-UTSM-2009-03

14 Indoor Units

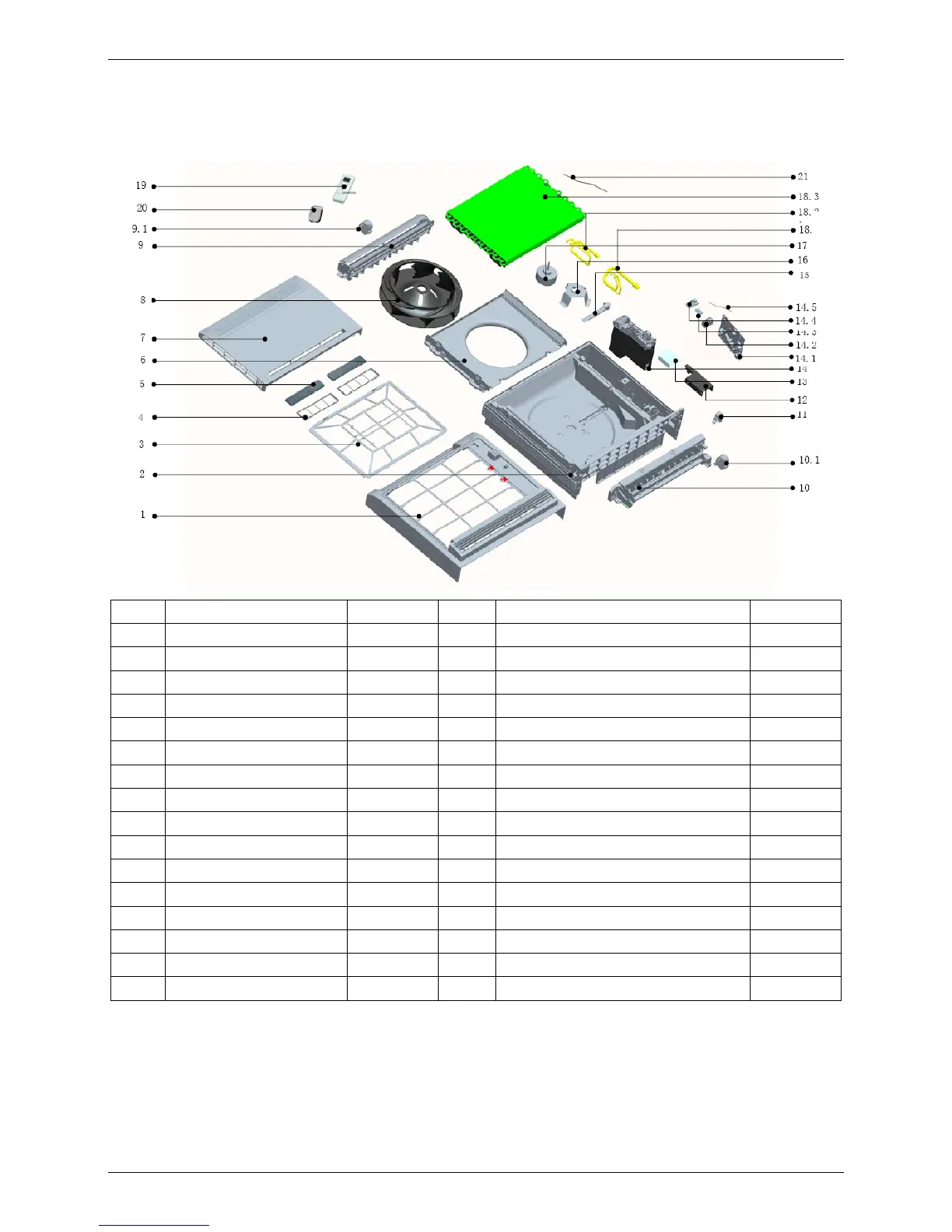

9. Exploded View

9.1 MFA-12HRN1 MFA-18HRN1

No. Part Name Quantity No. Part Name Quantity

1 Panel frame ass'y 1 14.1 Main control board ass'y 1

2 Base ass'y 1 14.2 Wire joint 1

3 Filter 1 14.3 Dial-up board ass'y 1

4 Air fresh net 2 14.4 Display board ass'y 1

5 Formaldehyde-killer 2 14.5 Room temp sensor ass'y 1

6 Air guide ring ass'y 1 15 Wire clamp 1

7 Panel ass'y 1 16 Motor bracket 1

8 Centrifugal fan 1 17 Dc motor 1

9 Air outlet frame ass'y 1 18 Evaporator ass'y 1

9.1 Stepper motor 1 18.1 Output pipe ass'y 1

10 Drainage pan ass'y 1 18.2 Input pipe ass'y 1

10.1 Stepper motor 1 18.3 Evaporator 1

11 Pipe clamp 1 19 Remote controller 1

12 E-Part box cover 1 20 Remote controller holder ass'y 1

13 Insulation washer 1 21 Temp.sensor ass'y 1

14 E-part box ass'y 1
