Exploded View MCAC-UTSM-2009-03
26 Outdoor Units

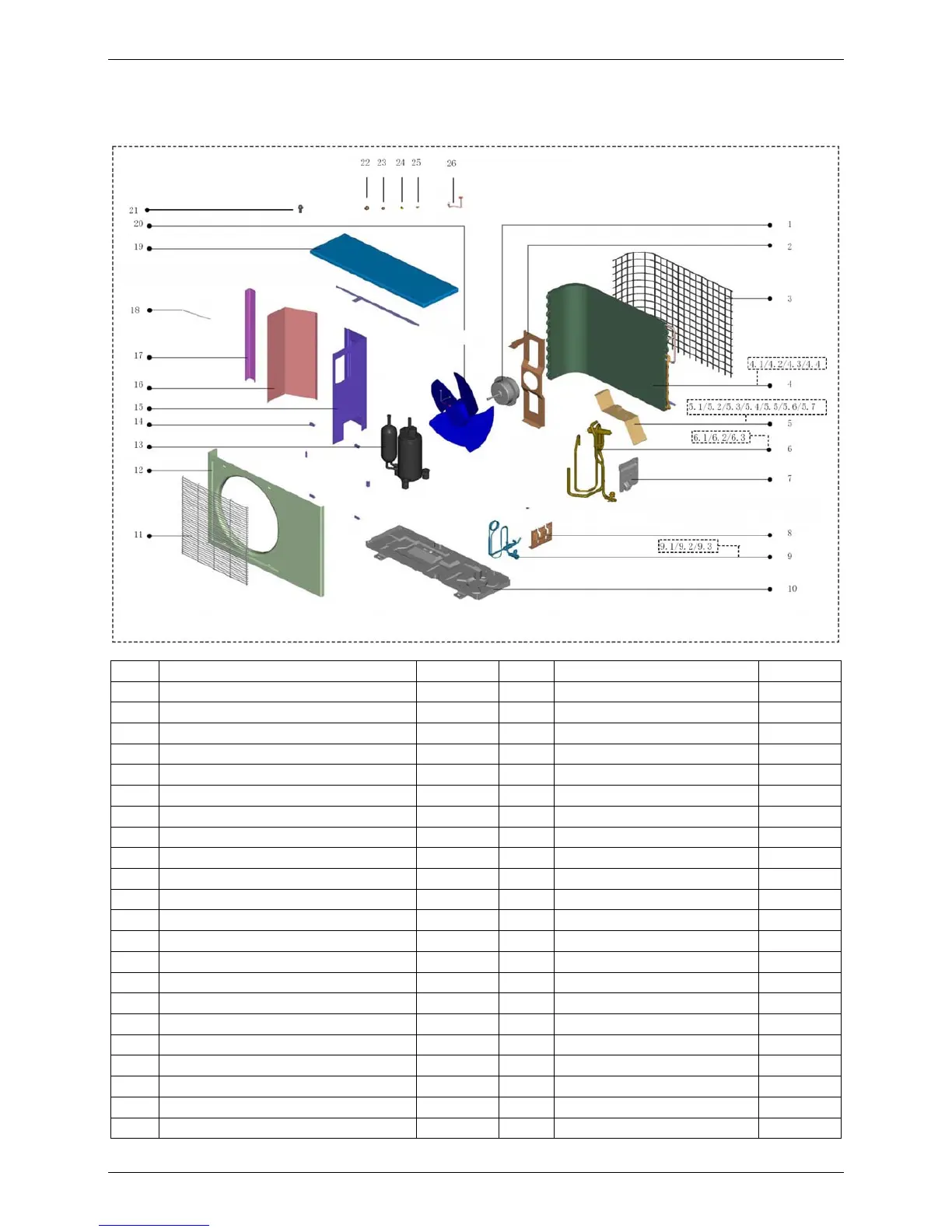

9. Exploded View
9.1 MON-12HN1
No. Part Name Quantity No. Part Name Quantity
1 Fan motor 1 9 High pressure valve ass'y 1
2 Motor bracket ass'y 1 9.1 High pressure valve 1
3 Rear net 1 9.2 Strainer 1
4 Condenser ass'y 1 9.3 One way valve 1
4.1 Condenser 1 10 Base ass'y 1
4.2 Condenser output pipe 1 11 Grille 1
4.3 Condenser connecting pipe ass'y 1 12 Front panel 1
4.4 Condenser inlet pipe ass'y 1 13 Compressor 1
5 E-part box ass'y 1 14 Net clamp 6
5.1 Wire joint,4p 1 15 Right clapboard 1
5.2 Transformer 1 16 Partition board ass'y 1
5.3 Compressor capacitor 1 17 Left supporter 1
5.4 Motor capacitor 1 18 Small handle 1
5.5 Relay 1 19 Top cover 1
5.6 E-Part box 1 20 Axial flow fan 1
5.7 Main control board ass'y 1 21 Drain hose 1
6 4-way valve ass'y 1 22 Copper nut 1
6.1 4-way valve 1 23 Copper nut 1
6.2 Solenoid 1 24 Sphere pad 1
6.3 Low pressure valve 1 25 Sphere pad 1
7 Big handle 1 26 Temp. sensor ass'y 1
8 Valve plate 1
