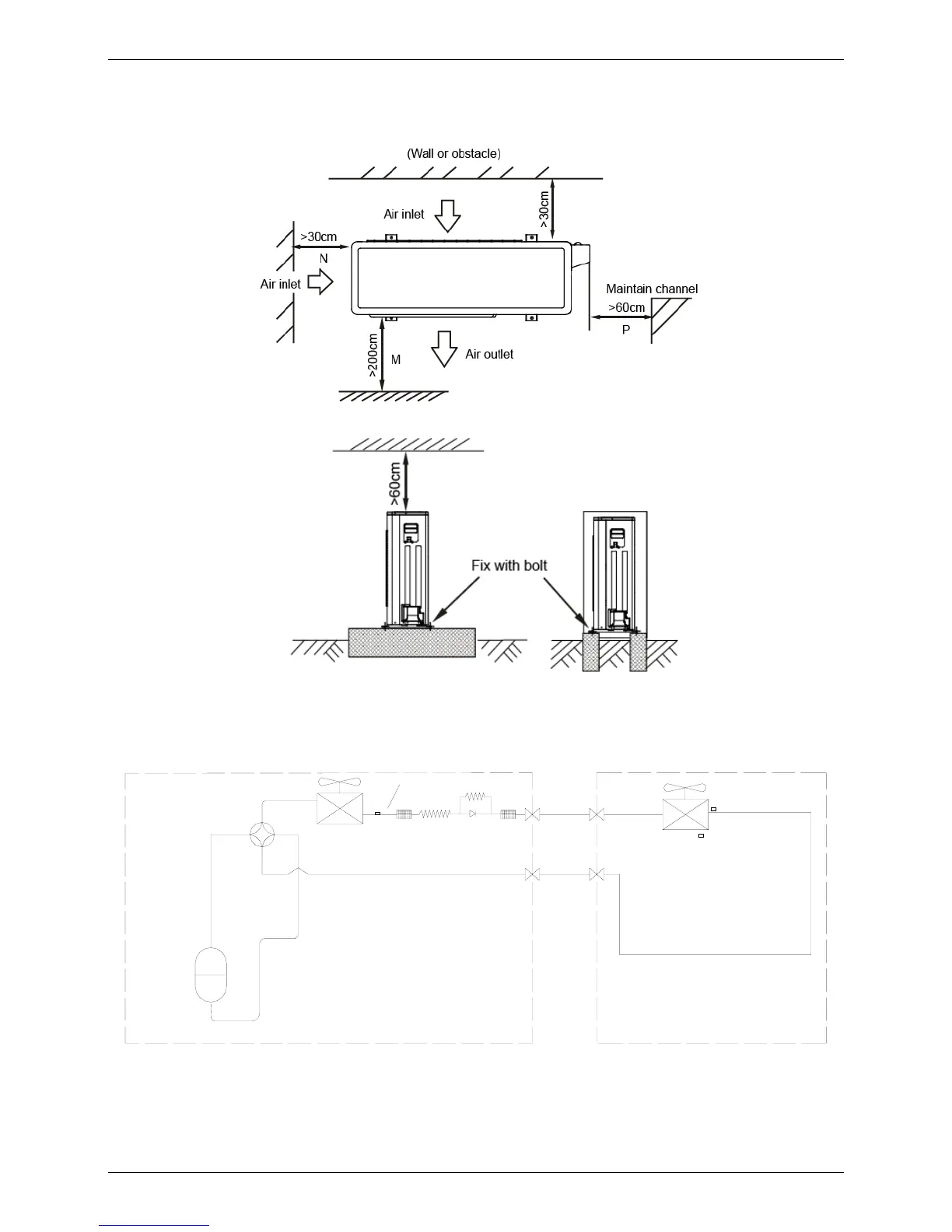

Service Space MCAC-UTSM-2009-03
20 Outdoor Units
3. Service Space
4. Piping Diagrams
T1
T2
Indoor units
Outdoor unit
stop valve
room temp. sensor
evaporator temp. sensor
4-way valve
compressor
condenser temp. sensor
stop valve
one way valve
filter
T3
Throttle capiliary
