Service Manual_2018-
V1
.0
15

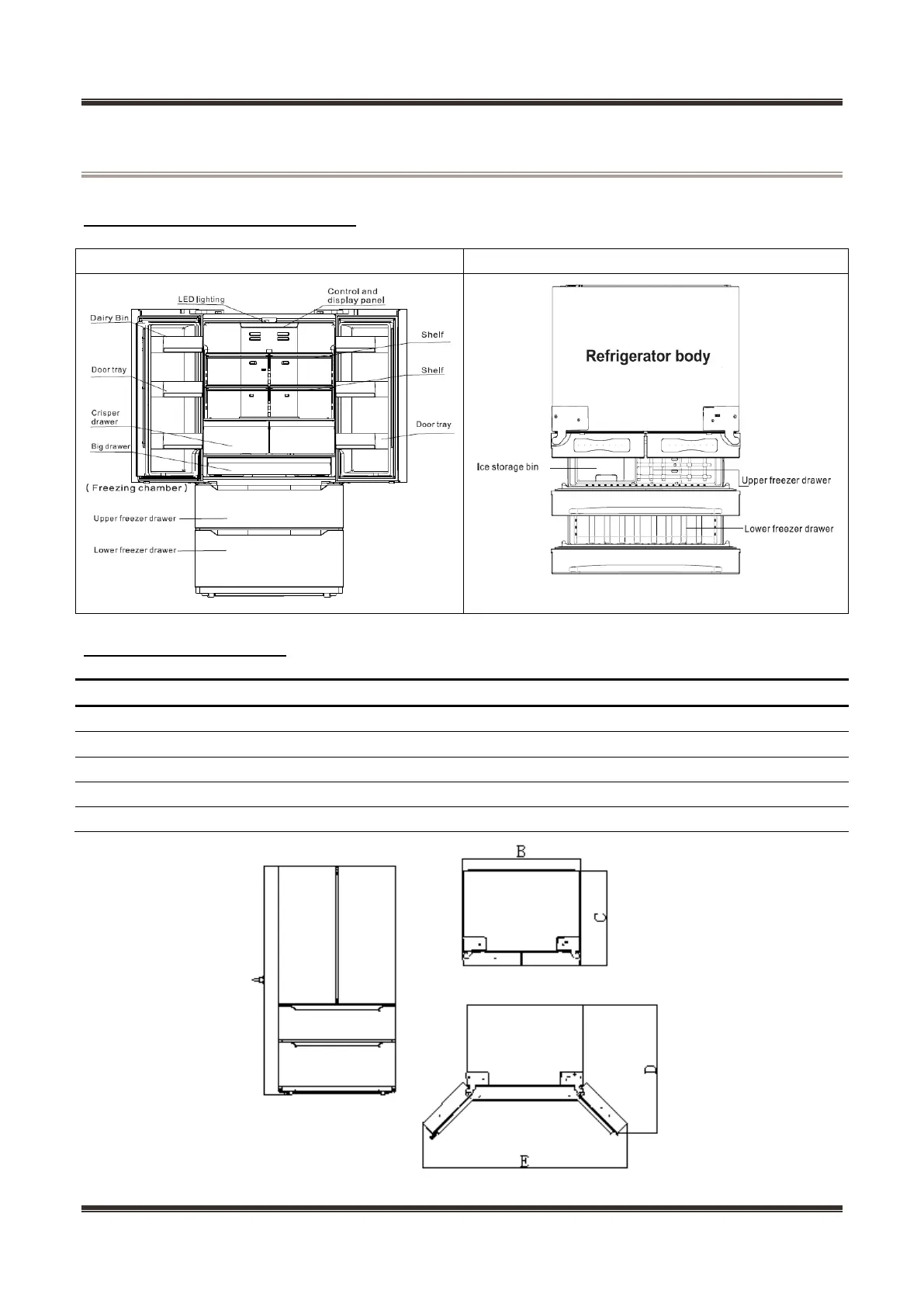

6. Internal vie
w
and dimen
si
on
6.1 Main parts and their names
Refrigerator
chamber
Freezer ch
amber
6.2 External dimension
Description
Code
Size
(mm)
Size
(in)
Height to To
p of Case
A
1775
70
Width
B
910
35.8
Depth
C
737
29.0
Depth (135d
eg. with Door O
pen)
D
993
39.1
Width (door
open 135 deg.)
E
1593
62.7
14
16
Table of Contents
Default Chapter
3
Table of Contents
3
1 Safety Warning Code
5
Warning for Operation Safety
5
Safety Instruction for Refrigerant
7
2 Description for Product Features
8
3 Installation and Commissioning
9
Handling
9
Door Disassembly and Assembly
9
Installation Location
9
Leveling of the Refrigerator
10
Door Reversal(None)
10
Installation of Handle
10
Installation of Door Lock
10
Adjustment to Level the Door
10
Adjustment to Shelves
10
4 Terms
11
Definition of Model(None)
11
Location of Nameplate(None)
11
5 Product Specification
12
Type Specification(None)
12
Electrical Parameters
12
Inside Temperature
13
Defrosting Parts
13
Circuit Diagram
14
6 Internal View and Dimension
15
Main Parts and Their Names
15
External Dimension
15
7 Refrigerating Piping System and Circulating Route of Cooling Air
16
Refrigerating Piping System
16
Circulating Route of Cooling Air
17
8 Dismantling of Parts
18
Parts on the Door
18
Parts Inside the Refrigerator
20
Light System
21
Air Duct and Fan Motor
22
Evaporator and Temperature Sensing System
24
Compressor Case
25
Display Control Board
27
Main Control Board
28
Bar Counter
30
Water Dispenser
30
Ice Maker
30
Water Filter
31
9 Function and Operation
32
Operation Panel
32
Display
32
Temperature Setting
32
Mode Setting
33
Super Freeze Mode
33
Fault Code and Solutions
34
Defrosting Function
35
Test Mode
36
10 Circuit Description
37
Sensor Resistance(R/T)
37
11 Troubleshooting Method
38
No Cooling(Air Cooling-Electronic)
38
No Working of Compressor
39
Inside Frosting, no Defrosting
39
Inside Frosting, no Defrosting-Maintenance Guidelines
40
Light Is Not on
41
Air Duct Not Operated(Electronically)
41
Fan Failure
42
Defective Defrost Circuit
42
Noise
43
12 Figures and Details of Repair Parts (Documents Are Provided in the Tsp)
44
13 Appendix
45
Refrigerator Maintenance Tooling and Equipment and Material
45
