Service Manual_2018-V1.0
24

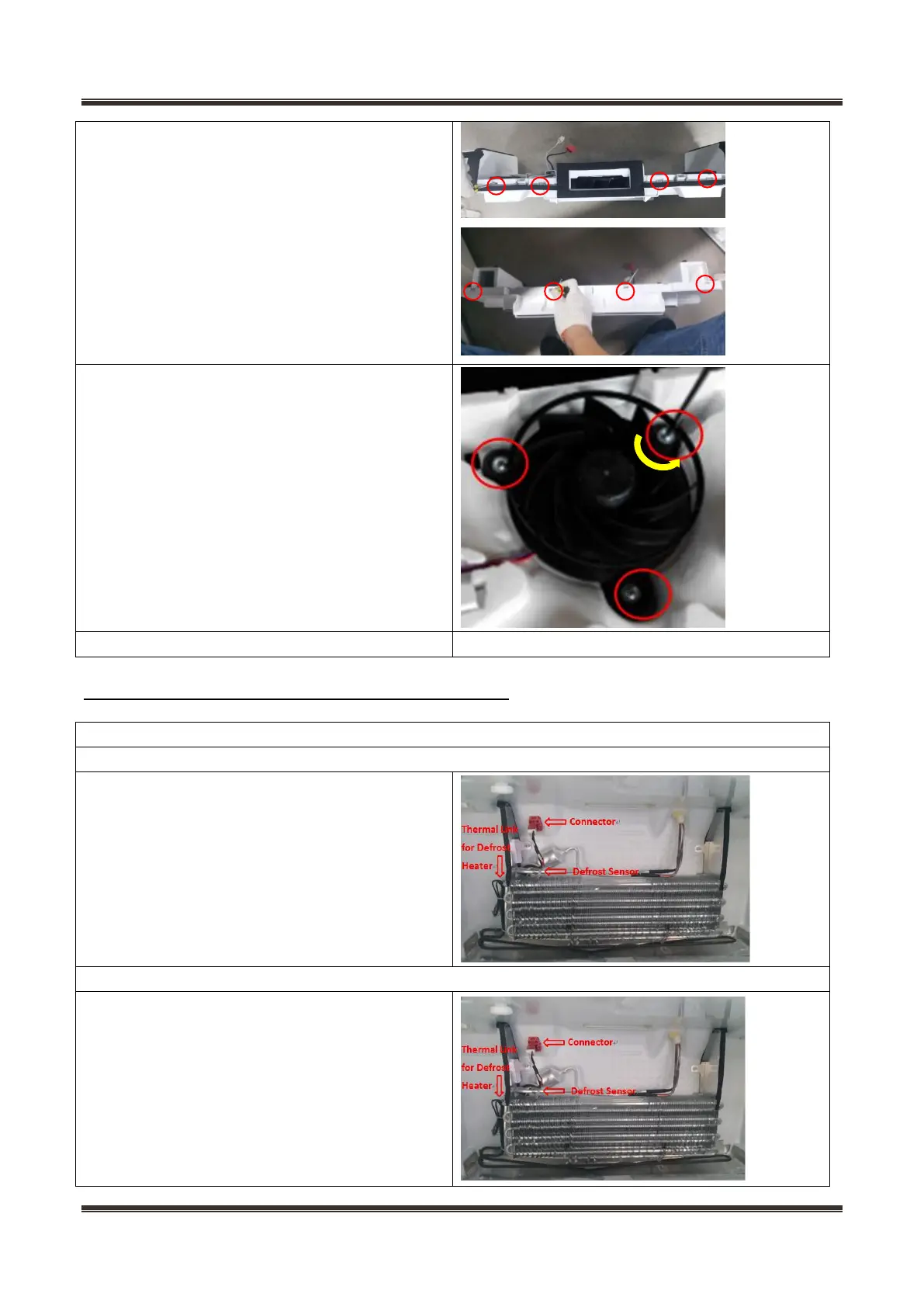

3） Use cross screwdriver to remove the 3 pcs
screws of fan motor;
4） replace the fan in reverse steps.
8.5 Evaporator and temperature sensing system
Evaporator in refrigeration chamber(None)
Evaporator in freezing chamber
1） move the air duct components in freezing
chamber.
2） sconnect all connectors.
3） move the welding on inlet and outlet tubes.
4）take down evaporator upward and outward.
Components on the evaporator
Defrost heater with defrost sensor and fuse
*The defrost heater incorporates the defrost
sensor and fuse in one, and failure of any
component will result in replacement of the entire
set of components
1） Cut off wiring terminal;
2） Cut off the band which fixes the sensor;
3） Cut off the band which fixes the fuse;
To Next Page
