Midea MRQ23B4AST Service Manual

Service Manual_2018-V1.0
27

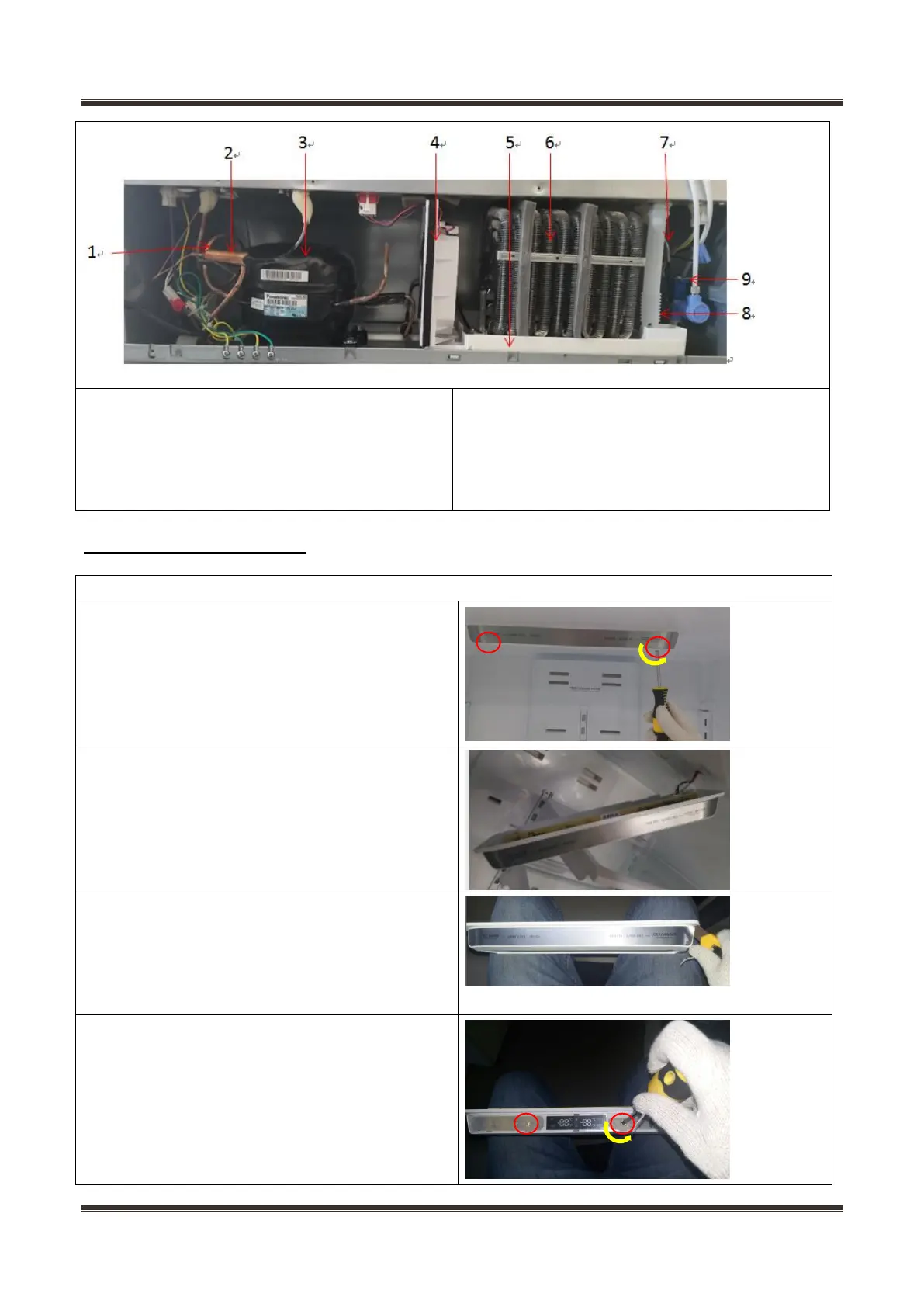

1-Suction connection tube
2-Dry filter
3-Constant speed reciprocating compressors
4-Condenser fan
5-Water tray
6-Circumflex fin condenser
7-Anti-condensation tube
8-Drain
9-Water valve
8.7 Display control board
Display control board and refrigerator top light
1. Control panel with cross screw driver;
2. Detach the roof display and control panel to
remove the ceiling lamp and display and
control PCB board terminal;
3. Push aside and take off the membrane outside
the forepart of display and control panel with
blade or other sheet;
4. Remove two screws on both sides of display
and control panel with cross screwdriver;
