Installation
*INSTALLATION*
26
Before installation
 Before installation, it is important
to read the information given on the
following pages as well as the
“Warning and Safety instructions” at
the beginning of this booklet.
Installation recommendations
- To achieve optimum vapour
extraction, the rangehood must be
positioned centrally over the cooktop,
not to the side.
- The cooktop should be no wider than
the rangehood and, if possible, it
should be narrower, especially for
safety distances greater than
750mm.
- The installation area must be easily
accessible. The rangehood should be
easily accessible and easy to
dismantle in the event that service is
required. This should be taken into
consideration when planning the
position of cupboards, shelves,
ceilings or features in the vicinity of
the rangehood.

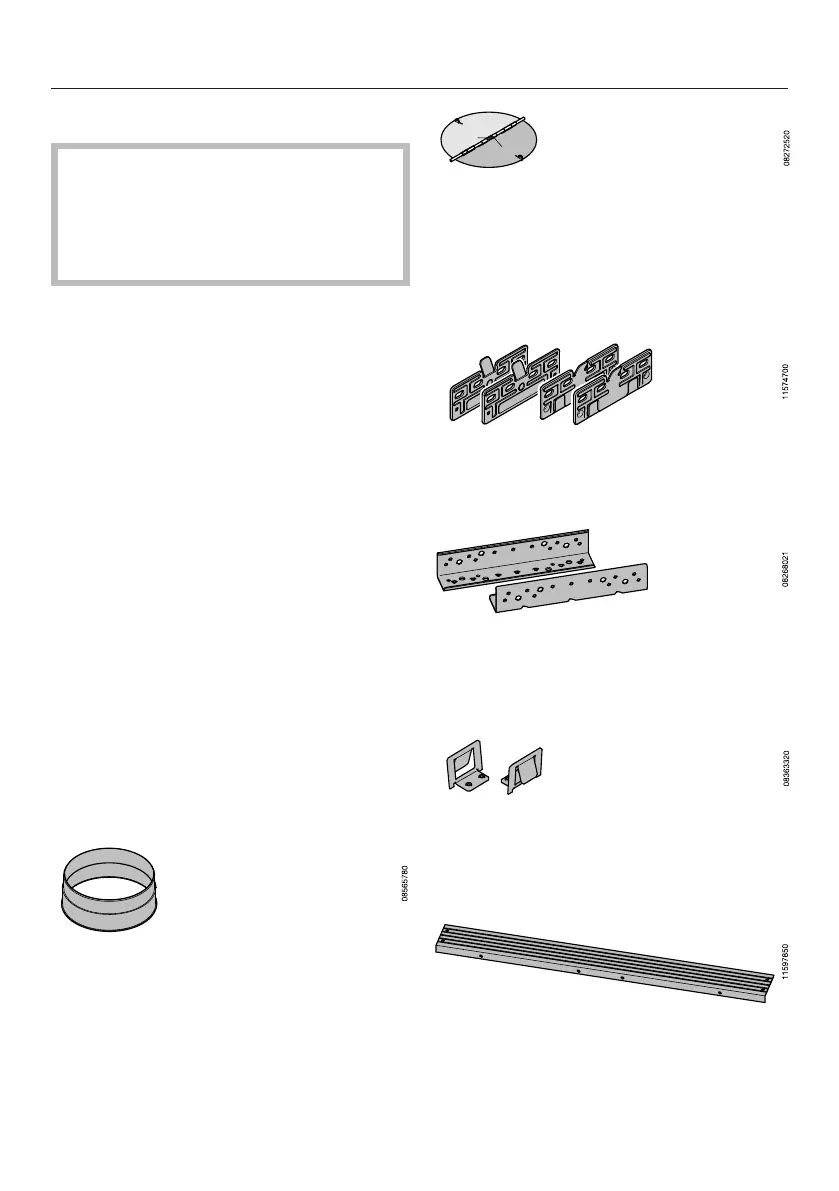

Installation materials
1 exhaust connection
for exhaust ducting 150mm.
1 non-return flap
for fitting into the exhaust connection
on the motor unit (not needed for
recirculation mode). Depending on
model, the non-return flap may already
be fitted.
4mounting plates
for installation in a 600mm wide
cabinet
2 brackets
for installation in a 900mm wide
cabinet (only for 896mm wide
appliances)
2 spring clips
for installation in a 900mm wide
cabinet (only for 896mm wide
appliances)
1 spacer strip
for concealing the gap between the
rear of the appliance and the wall

Miele DAS 2620 Specifications

General

Noise level	61 dB
Pressure (Pa)	422
Intensive speed	Yes
Number of speeds	3
Type of extraction	Ducted/Recirculating
Noise level (low speed)	47 dB
Maximum extraction power	559 m³/h
Noise level (medium speed)	55 dB
Maximum recirculating power	550 m³/h
Minimum distance from gas hob	650 mm
Noise level (intensive speed)	68 dB
Fluid dynamic efficiency class	A
Minimum distance from electric hob	450 mm
Current	10 A
Connected load	200 W
AC input voltage	230 V
AC input frequency	50 Hz
Energy efficiency scale	A+++ to D
Annual energy consumption	41.7 kWh
Bulb type	LED
Bulb power	3.2 W
Illuminance	310 lx
Number of bulbs	1 bulb(s)
Type	Built-in
Cord length	1.5 m
Control type	Buttons
Product color	Stainless steel
Built-in display	No
Exhaust location	Top
Exhaust connection diameter	150 mm
Number of filters	1 pc(s)

Weight and Dimensions

Width	596 mm
Weight	12000 g
Depth (max)	423 mm
Depth (min)	273 mm
Height (max)	436 mm
