Non-return flap
 Make sure you use a non-return flap
in the exhaust air system.
A non-return flap ensures that when the
rangehood is not in operation, the duct
is closed and no exchange of room and
outside air can take place.
If the exhaust air is ducted through an
outside wall, a Miele wall vent or a
Miele roof vent (available as an optional
accessory) is recommended. These are
fitted with an integrated non-return flap.
If the on-site exhaust air system does
not have a non-return flap, one is
supplied with the rangehood.
The non-return flap is fitted to the fan's
exhaust connection.
Condensed water
If the exhaust ducting is to run through
rooms, ceiling space etc., condensate
may form in the ducting due to
variations in temperature between the
different areas. To minimise temperature
variations, the exhaust ducting will need
to be suitably insulated.
Where ducting is horizontal, it must be
laid to slope away at at least 1 cm per
metre. The gradient ensures that
condensate cannot drain back into the
rangehood.
In addition to insulating the exhaust
ducting, we recommend that a suitable
condensate trap is also installed to
collect and evaporate any condensate
which may occur.

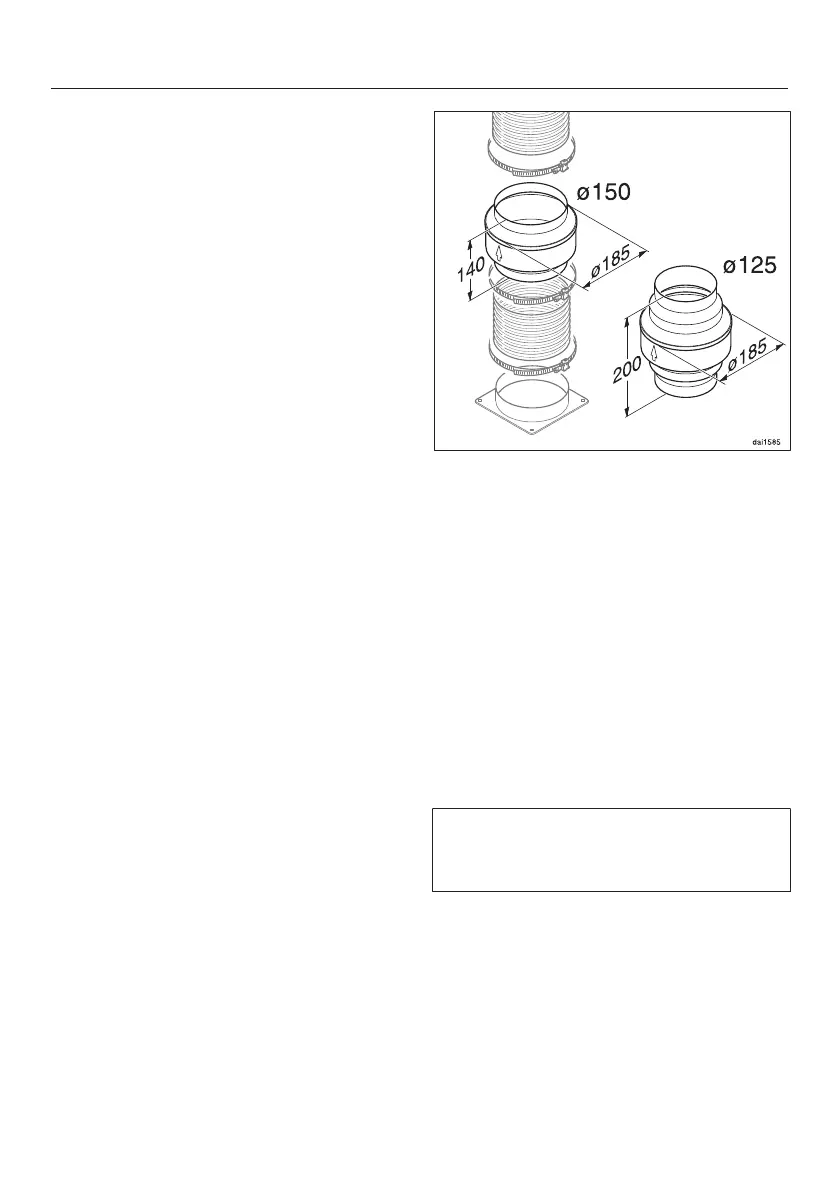

Condensate traps are available for
125mm or 150mm ducting.
When installing a condensate trap,
ensure that it is positioned vertically
and, if possible, directly above the
exhaust socket. The arrow on the
housing indicates the direction of
airflow.
Miele will not accept warranty claims
for any functional defects or damage
caused by inadequate ducting.

Miele DAS 2620 Specifications

General

Noise level	61 dB
Pressure (Pa)	422
Intensive speed	Yes
Number of speeds	3
Type of extraction	Ducted/Recirculating
Noise level (low speed)	47 dB
Maximum extraction power	559 m³/h
Noise level (medium speed)	55 dB
Maximum recirculating power	550 m³/h
Minimum distance from gas hob	650 mm
Noise level (intensive speed)	68 dB
Fluid dynamic efficiency class	A
Minimum distance from electric hob	450 mm
Current	10 A
Connected load	200 W
AC input voltage	230 V
AC input frequency	50 Hz
Energy efficiency scale	A+++ to D
Annual energy consumption	41.7 kWh
Bulb type	LED
Bulb power	3.2 W
Illuminance	310 lx
Number of bulbs	1 bulb(s)
Type	Built-in
Cord length	1.5 m
Control type	Buttons
Product color	Stainless steel
Built-in display	No
Exhaust location	Top
Exhaust connection diameter	150 mm
Number of filters	1 pc(s)

Weight and Dimensions

Width	596 mm
Weight	12000 g
Depth (max)	423 mm
Depth (min)	273 mm
Height (max)	436 mm
