Miele DAS 2620 User Manual

Installation
*INSTALLATION*
34

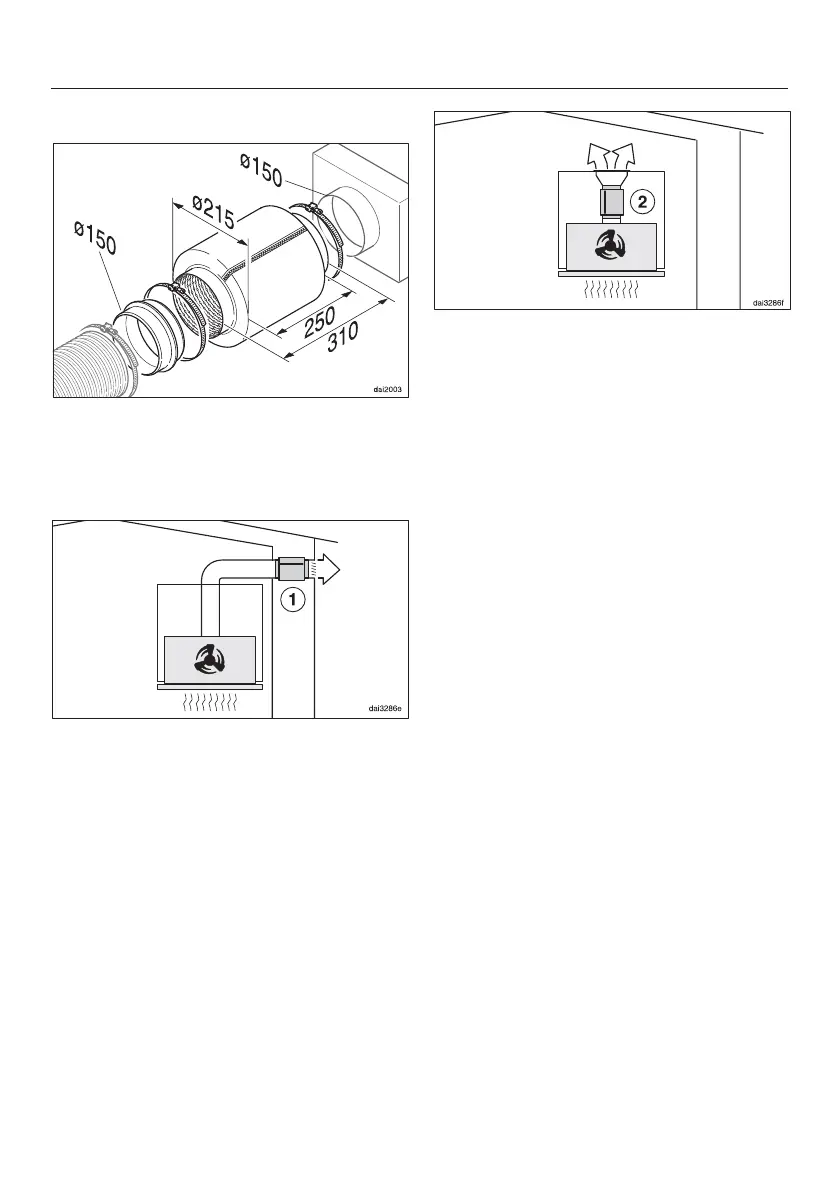

Silencer
To achieve even further reductions in
noise levels, a special silencer (optional
accessory) can be fitted in the ducting
system.
In extraction mode the silencer not only
reduces noise from the fan outside the
house, but also sounds from outside
which reach the kitchen via the vent
ducting (e.g. traffic noise). For this
reason, the silencer must be positioned
as close as possible to the ducting exit
.
In recirculation mode the silencer needs
to be positioned between the exhaust
connection and the exhaust grille.
Please ensure there is adequate
installation space.

Miele DAS 2620 Specifications

General

Noise level	61 dB
Pressure (Pa)	422
Intensive speed	Yes
Number of speeds	3
Type of extraction	Ducted/Recirculating
Noise level (low speed)	47 dB
Maximum extraction power	559 m³/h
Noise level (medium speed)	55 dB
Maximum recirculating power	550 m³/h
Minimum distance from gas hob	650 mm
Noise level (intensive speed)	68 dB
Fluid dynamic efficiency class	A
Minimum distance from electric hob	450 mm
Current	10 A
Connected load	200 W
AC input voltage	230 V
AC input frequency	50 Hz
Energy efficiency scale	A+++ to D
Annual energy consumption	41.7 kWh
Bulb type	LED
Bulb power	3.2 W
Illuminance	310 lx
Number of bulbs	1 bulb(s)
Type	Built-in
Cord length	1.5 m
Control type	Buttons
Product color	Stainless steel
Built-in display	No
Exhaust location	Top
Exhaust connection diameter	150 mm
Number of filters	1 pc(s)

Weight and Dimensions

Width	596 mm
Weight	12000 g
Depth (max)	423 mm
Depth (min)	273 mm
Height (max)	436 mm
