4.Matching the facia panel to
the dimensions of the
adjacent drawer fronts

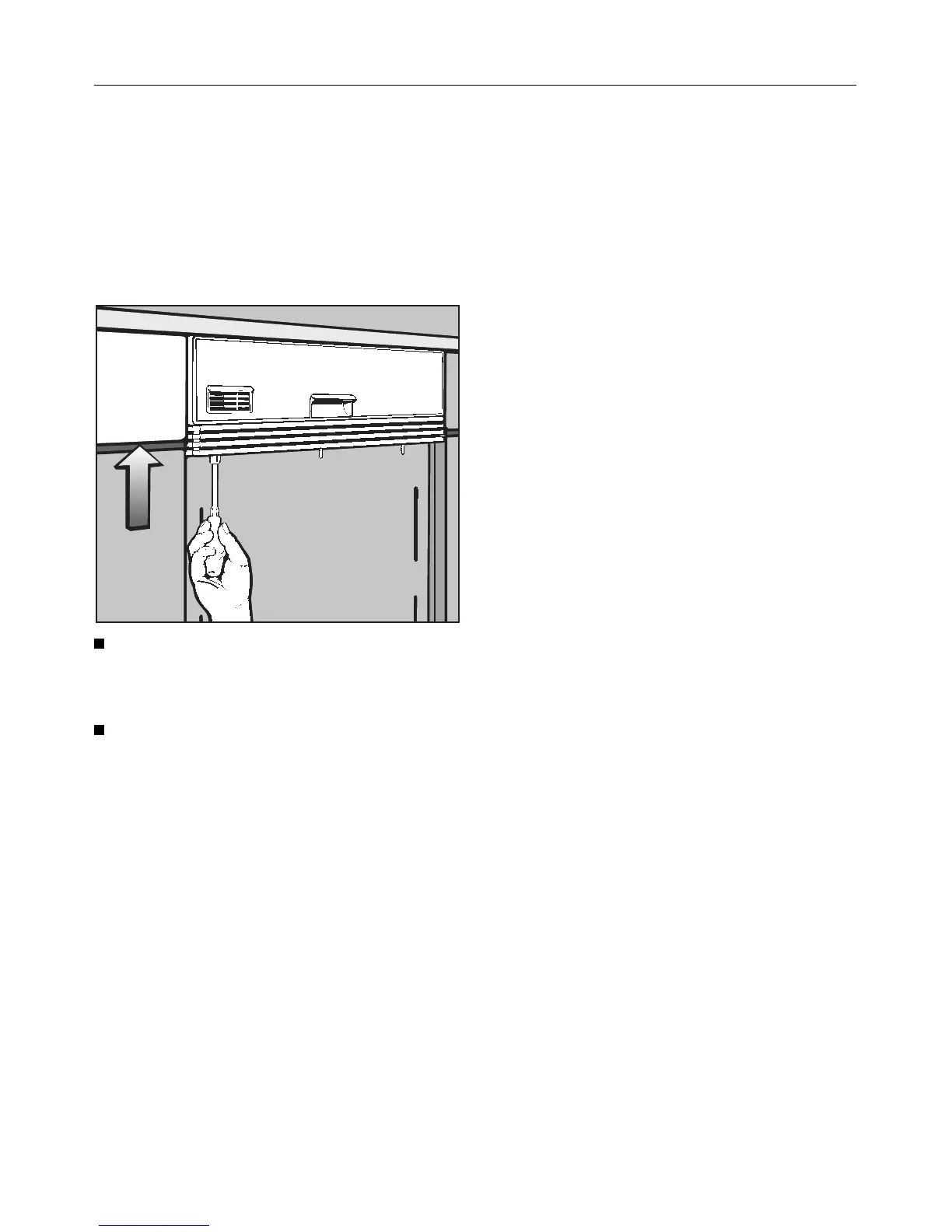

The facia panel can be aligned with the
drawer fronts of the kitchen units by ad-
justing the spacer bars.
Using an 8 mm socket spanner turn
clockwise or anti-clockwise until the
required height is reached.
If necessary some or all spacer bars
can be removed.
Adjustment range:
from 112 mm: facia panel without
spacer bars
to 145 mm: facia panel with four
spacer bars,
to 154 mm: using a fifth spacer bar
(special accessory at
extra cost).
Please note
After adjustment cut off any protruding
lengths of the screws.
Installing integrated “i” Dishwashers
68
