Spring adapter for the water
connection
The spring adapter for the water
connection must be properly engaged
when a basket or the injector wagon is
inserted into the machine. It must be
4-5mmhigher than the water inlet in
the machine.

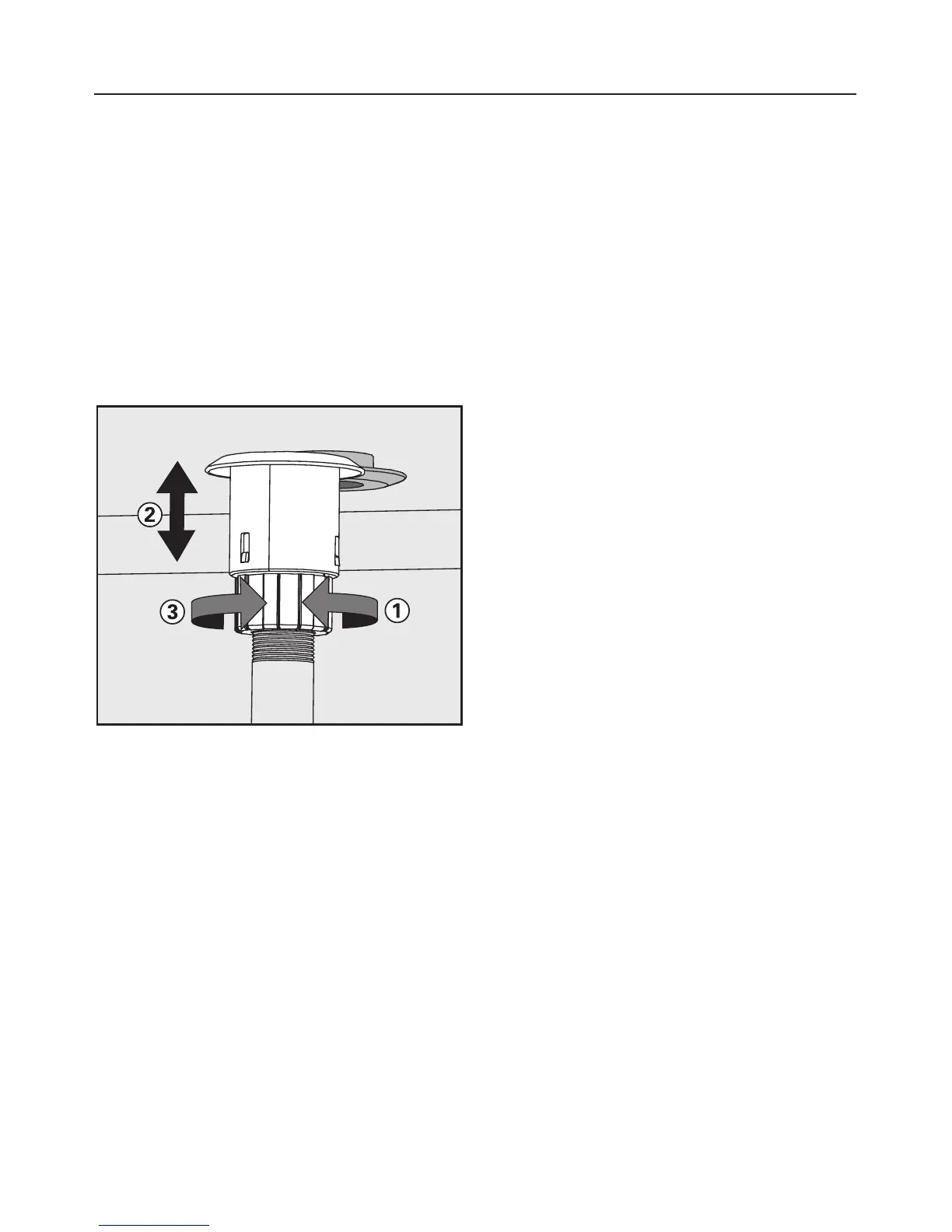

If this is not the case, the adapter
needs to be adjusted as follows:
^
Loosen the locking ring a.
^
Move the adapter up to the proper
height b.
^
Tighten the locking ring c.
Adjusting the upper basket
The upper basket can be adjusted
above and below the middle position,
by 2 cm.
Depending on the height selected and
which inserts are used, labware of
various heights can be arranged in the
baskets.
To adjust the upper basket:
^
Pull the upper basket out as far as it
will go, lift it up off the runners and
remove.
^ Use a wrench to unscrew the roller
bearings on either side of the basket,
then reposition as required.
Loading the machine
26
