83

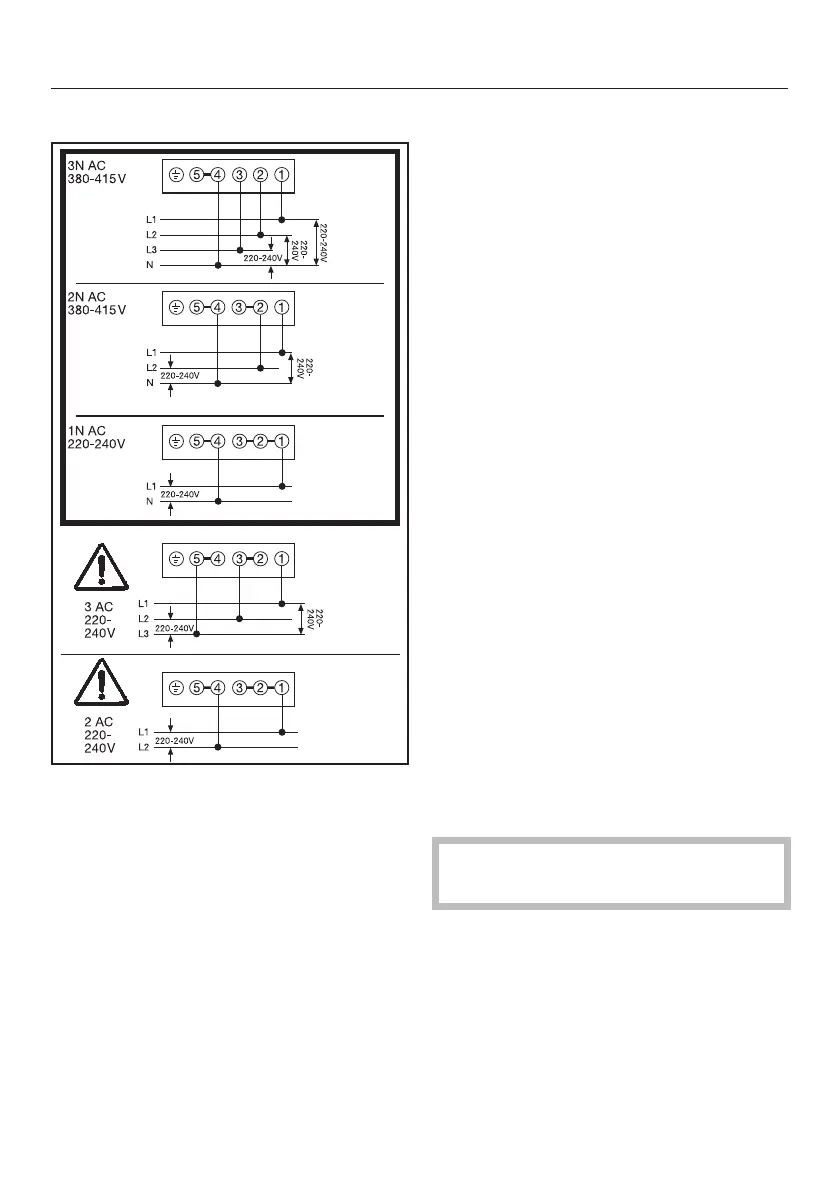

Wiring diagram Cooker
Cookers with integrated hob controls
are not supplied with a connection
cable.
The cooker must be connected to the
mains supply using a type H05VV-F
mains cable only, with a suitable cross-
sectional area (CSA) according to the
diagrams shown.
Maximum connected load: see data
plate.
Possible combination hobs
Miele cookers with integrated hob con-
trols may only be combined with hobs
as specified by Miele for use with that
cooker.
Contact Miele or your Miele Dealer for
further information on suitable combin-
ations.
Oven
The wires in the mains lead are col-
oured as follows:
Green/yellow = earth
Blue = neutral
Brown = live
 WARNING - THIS APPLIANCE
MUST BE EARTHED
For extra safety it is advisable to protect
the appliance with a suitable residual
current device (RCD).
Maximum connected load: see data
plate.

Miele H 2850 B Specifications

General

Oven size	Large
Oven type	Electric
Top heating	Yes
Number of ovens	1
Hot air grilling	No
Total oven power	- W
Oven thermostat range	30 - 250 °C
Number of shelf positions	5
Total oven(s) interior capacity	76 L
Current	16 A
Connected load	3500 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Energy efficiency scale	A+++ to D
Energy consumption (conventional)	1.05 kWh
Energy consumption (forced convection)	0.71 kWh
Door hinge	down
Cord length	1.7 m
Control type	Rotary
Door material	Glass
Product color	Stainless steel
Control position	Front
Appliance placement	Built-in
Clock type	Electronic
Timer type	Digital
Timer modes	Cooking time, End cooking time, Timer
Lamp type	Halogen
Lamps quantity	1 lamp(s)

Weight and Dimensions

Depth	569 mm
Width	595 mm
Height	596 mm
Weight	39900 g
Installation compartment depth	550 mm
Installation compartment width	568 mm
Installation compartment width (min)	560 mm
Installation compartment height (min)	593 mm
