If a wooden beam has been fitted
above the appliance to prevent
tipping, the appliance height needs
to be adjusted so that the appliance
fits snuggly under the woodden
beam.

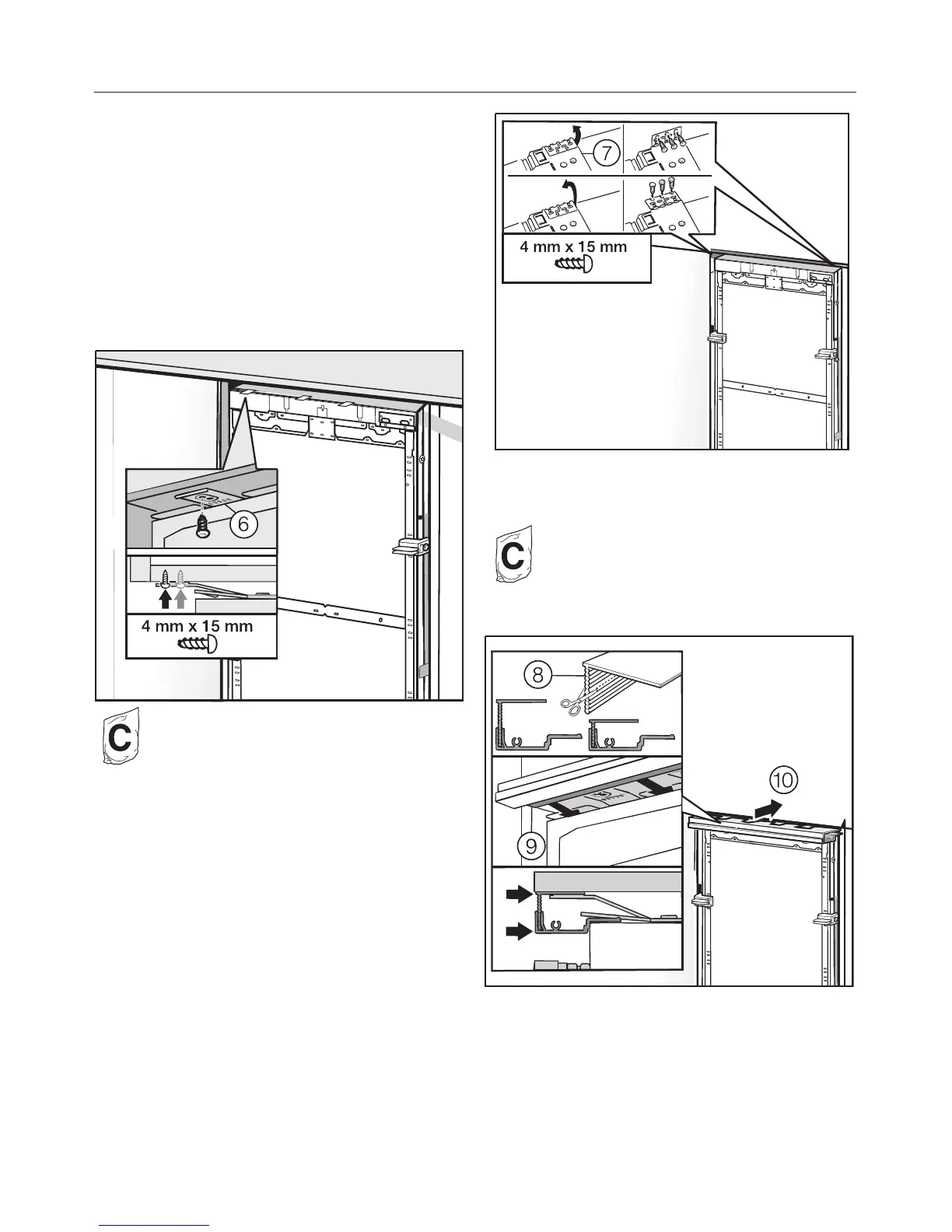

Securing the appliance in the
niche
^
Screw the lugs for the fixing plate f
into the furniture/units above the
appliance.
If it is not possible to secure the
appliance above, it can be attached to
the housing at the sides only:
^ Pull out the lugs for the side fixing
plates g.
^ Screw on the lugs for the side plates.
^
If necessary, cut the trim h to the
necessary width.
^
Join the two bits of trim together i.
^
Click them into position j.
Installation
85

Miele KF 1801 Vi Specifications

General

Child lock	-
Door hinge	Right
Control type	Sensor
Product color	Stainless steel
Reversible doors	Yes
Shelves material	Tempered glass
Door opening angle	115 °
Appliance placement	Built-in
Door panel included	No
Noise level	40 dB
Climate class	SN-T
Total net capacity	390 L
Total gross capacity	- L
Form factor	Upright
Fridge number of compressors	2
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	15 kg/24h
Freezer net capacity	80 L
Storage time during power failure	15 h
Fridge net capacity	253 L
Fridge number of shelves/baskets	4
Fresh zone compartment net capacity	57 L
Connected load	- W
Annual energy consumption	373 kWh

Weight and Dimensions

Depth	610 mm
Width	750 mm
Height	2127 mm
