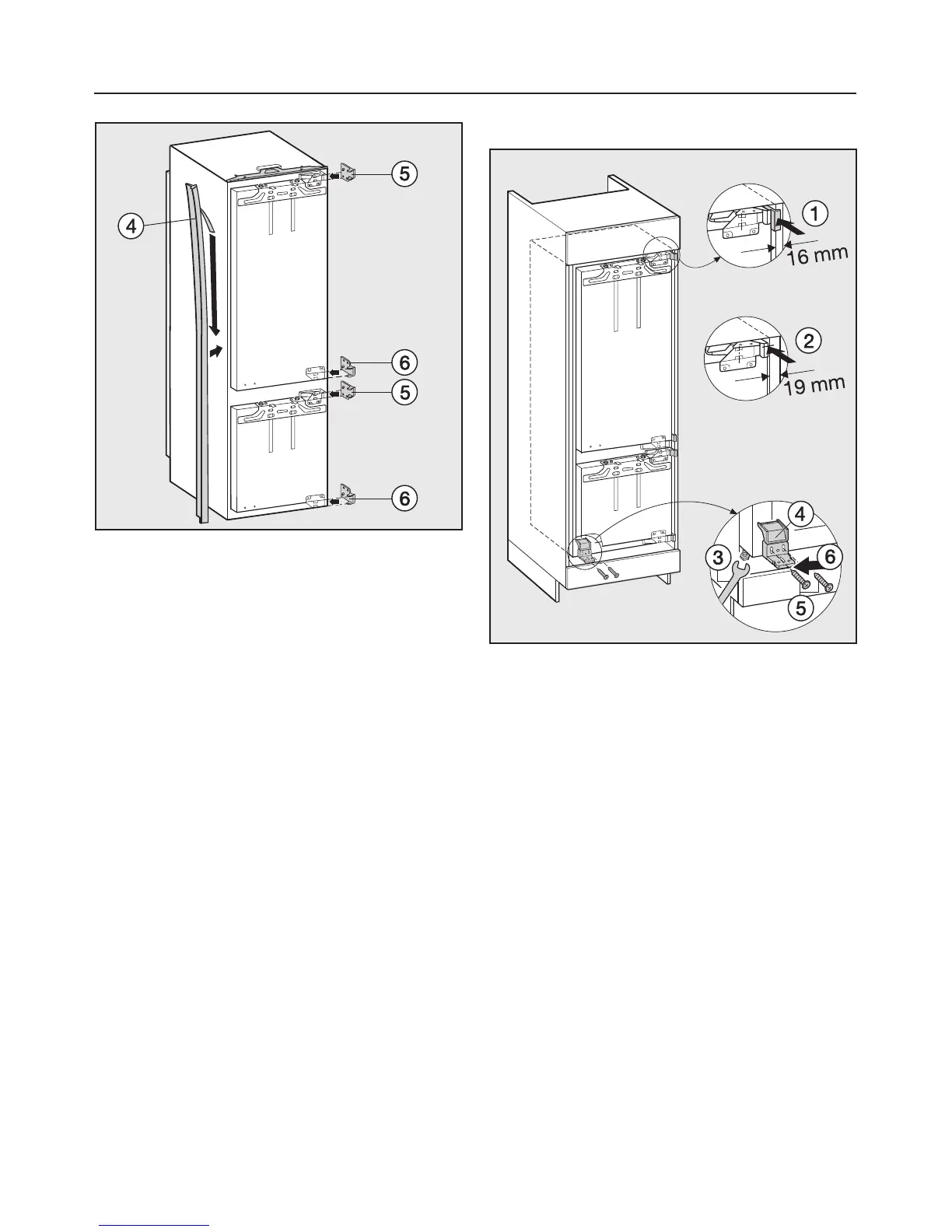

^ With 16 mm thick unit walls:
Remove the protective strip from
sealing strip d and stick it to the side
of the appliance on which the door is
opened (so that it is flush with the
front edge).
Shorten the sealing strip to the height
of the niche, if necessary.
^
Clip spacers e onto the upper
hinges and spacers f onto the lower
hinges.
Building in the appliance
^ Depending on the thickness of the
appliance housing walls, now push
the appliance into the niche until
– the spacer pieces touch the
housing unit wall a
(16 mm thick walls),
– or the front edges of the hinges are
flush with the side walls of the
housing unit b
(19 mm thick walls).
^
Press the appliance against the wall
on the hinge side.
^
Align the appliance height on both
sides by altering the adjustable feet
using the spanner supplied c.
Building in the appliance
55

Miele KF 9757 iD Specifications

General

Door hinge	Right
Product color	White
Reversible doors	Yes
Appliance placement	Built-in
Door panel included	No
Fridge number of compressors	1
Noise level	39 dB
Total net capacity	203 L
Total gross capacity	- L
Fridge number of shelves/baskets	5
Freezing capacity	10 kg/24h
Freezer net capacity	57 L
Freezer number of shelves/baskets	2
Storage time during power failure	20 h
Annual energy consumption	292 kWh

Weight and Dimensions

Depth	550 mm
Width	560 mm
Height	1772 mm
