Installation

*INSTALLATION*

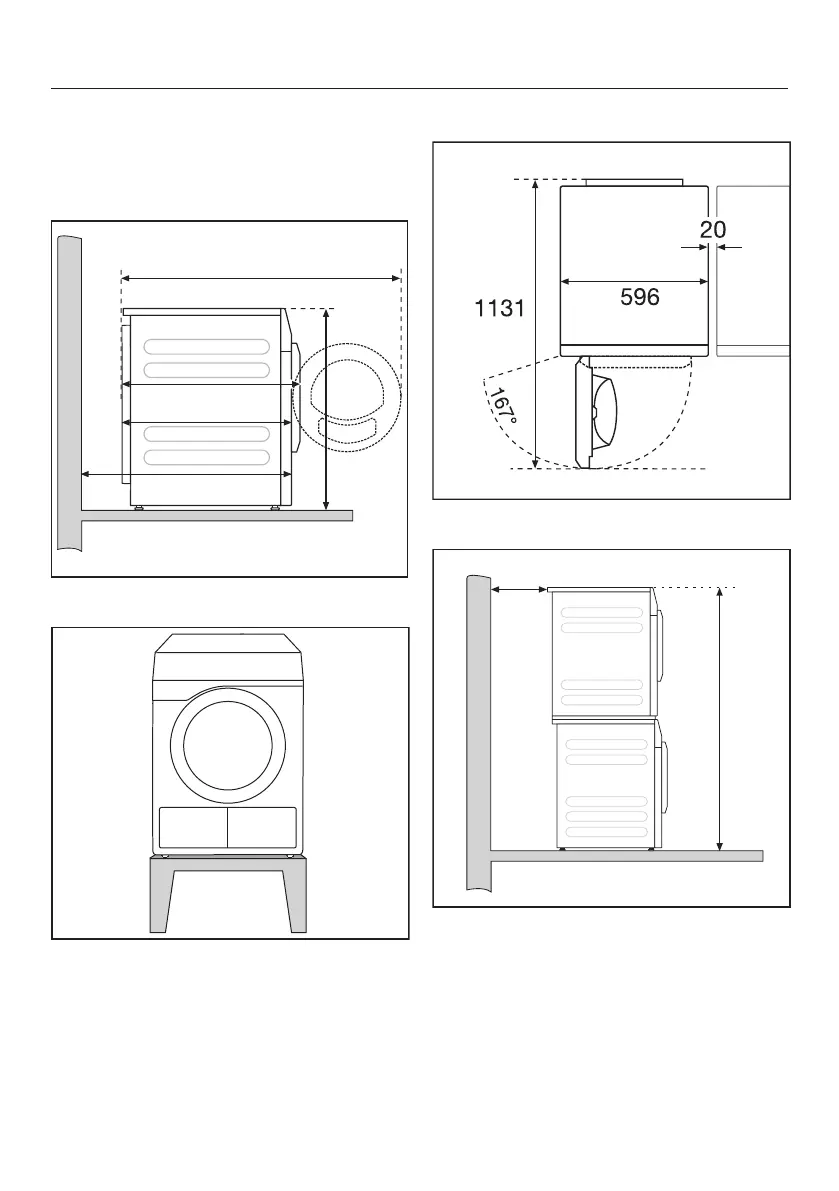

Installation locations

All measurements in mm

Side view

1131

717

1100

850

677

Steel plinth

Steel plinth* (open or closed bases)

View from above

Washer-dryer stack

min. 300

1702

A stacking kit* is needed. This must be fitted

by a Miele authorised service technician.

* optional Miele accessories
