Installation of the ducting
*INSTALLATION*
69
Table “Pipe diameter for shared exhaust air ducts”
If 3–5tumble dryers are installed on one shared exhaust air duct, the pipe
diameter D must be increased.
Number of tumble dryers Factor for increasing the pipe
diameters from tableII
3
4–5
1.25
1.5
The method for calculating the total duct length (table I) with the necessary pipe diameter
(tableII) is described in “Installation of the ducting” under “Calculating the total duct
length”.

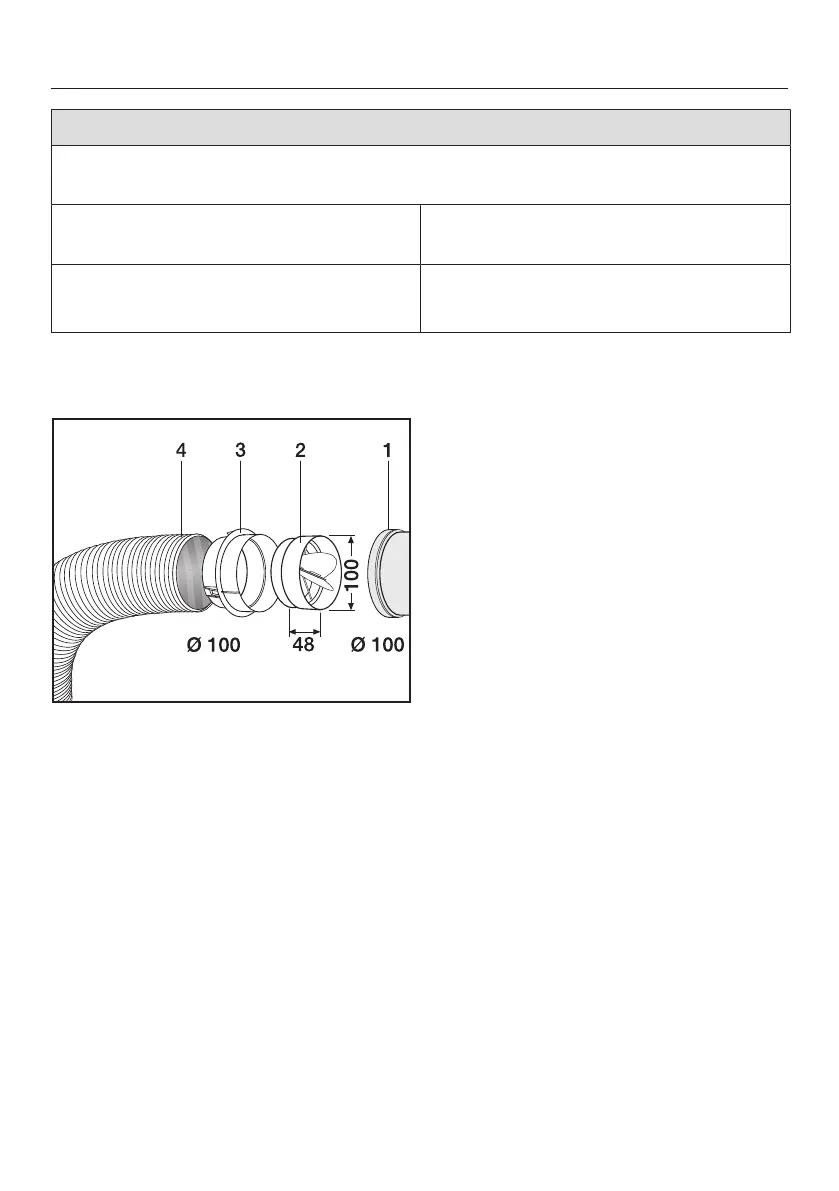

a
Connection to the shared exhaust air duct
b
Non-return flap
c
Adapter
d
Exhaust air hose, highly flexible
 Press the non-return flap (2) all the way into the adapter (3).
