a Emergency stop switch
Only for use in an emergency.
Once the danger is no longer present, turn the groo-
ved disc clockwise to disengage the switch.
Do not use the Emergency stop switch to turn off
the dryer in normal use.
b Control panel
c Drum door
Pull the door handle to open the drum door.
d Access to fluff filter
Pull the handle to open the fluff filter compartment.
e 4 adjustable screw feet
f Electrical connection
g Air intake
h Exhaust connection
i Equipotential bonding
j Communication slot

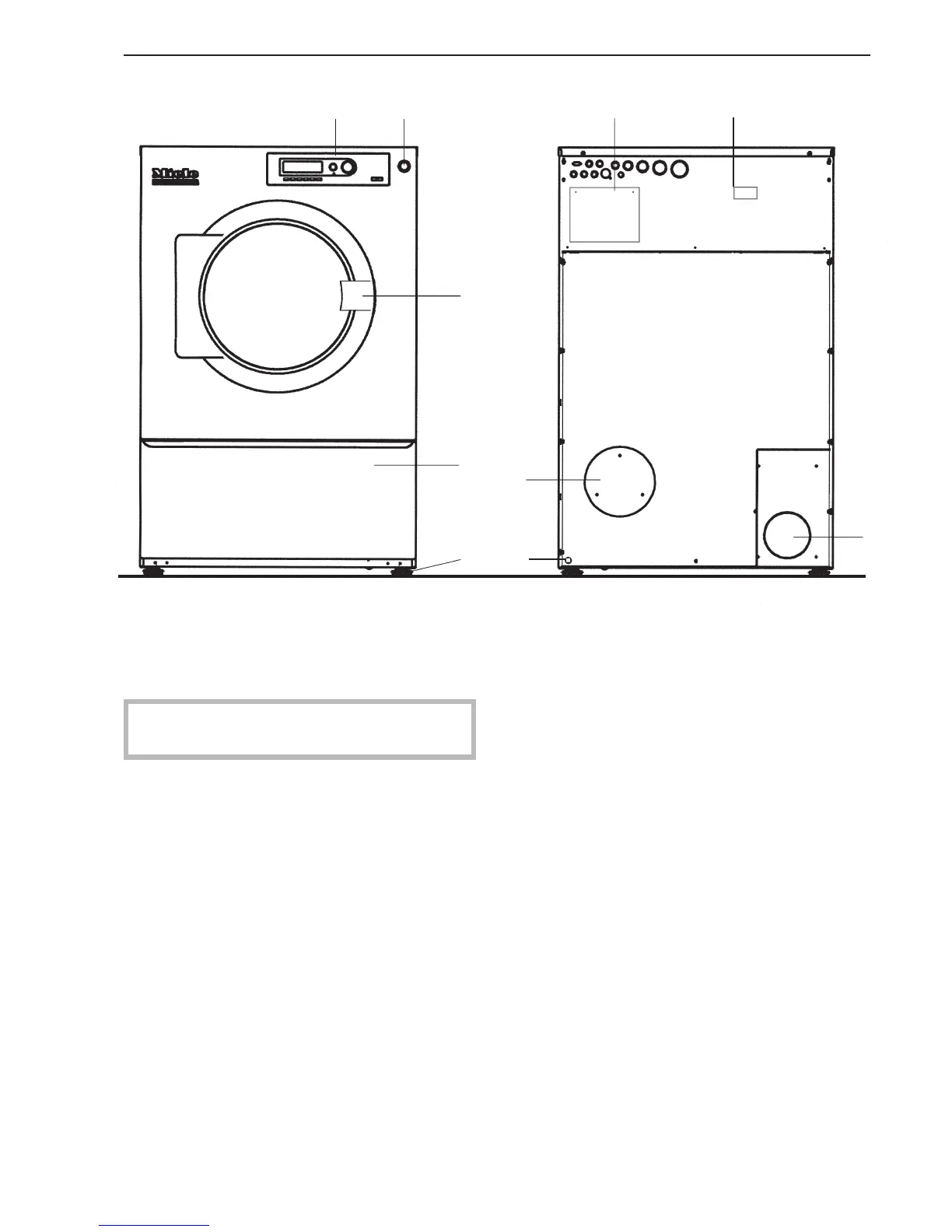

Guide to the machine
7
f
g
h
j
i
ab
c
d
e
