Fitting a door front panel made
by another manufacturer
Preparing the front panel

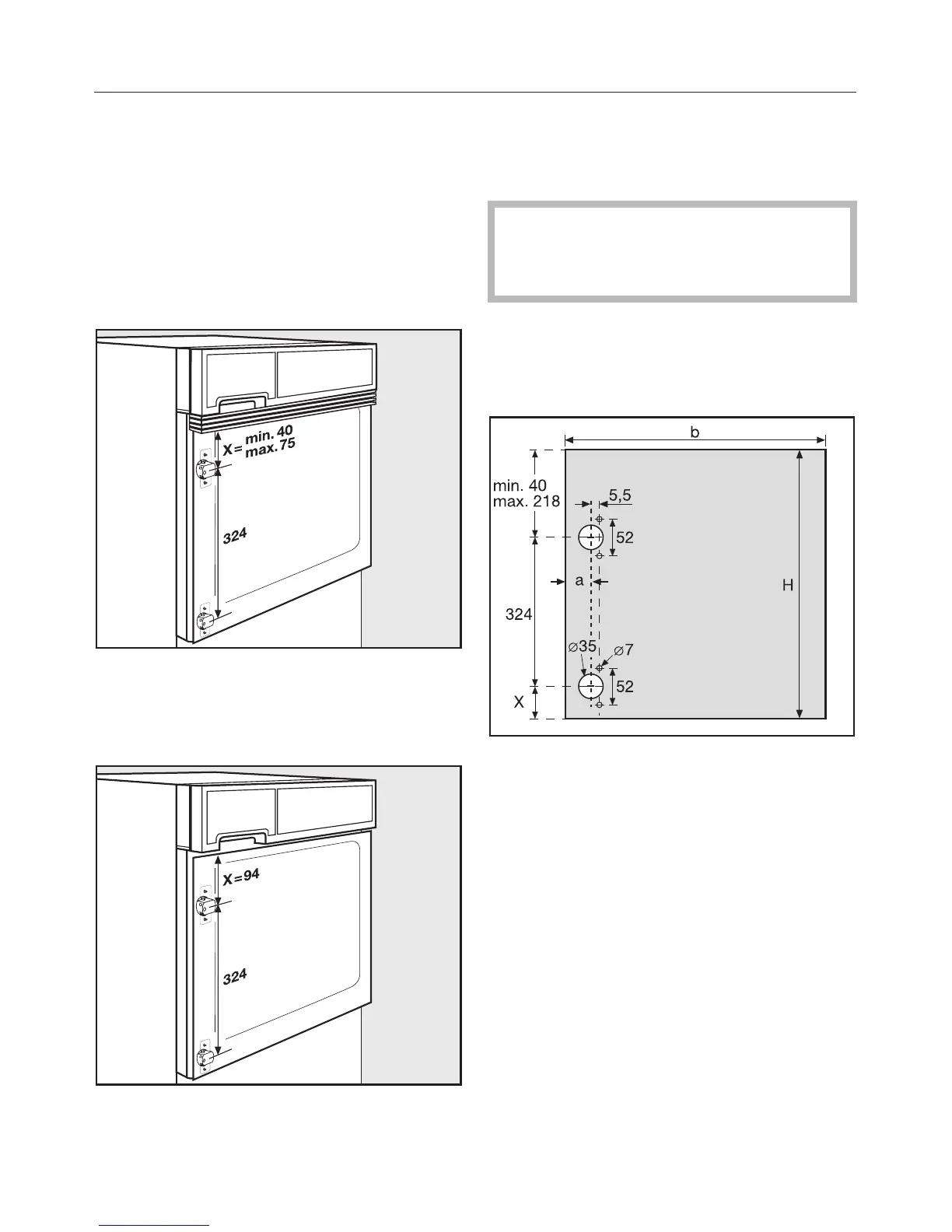

A Measure distance X for drilling the
hinge holes.
–
with spacer bars:
– without spacer bars:
(the front panel must be
correspondingly higher)
B Mark the two hinge holes and the
four smaller holes as shown in the
diagram.
Depending on country, this tumble
dryer is supplied either left or right
hand hinged.
For left hand hinging only:
–
front panel shown decor side face
down, upper edge at the bottom:
if width (b) increases, measurement a
must also be increased
b = 592 mm N a = 21.5 mm
b = 593 mm N a = 22.0 mm
b = 594 mm N a = 22.5 mm
b = 595 mm N a = 23.0 mm
b = 596 mm N a = 23.5 mm
H = height of adjacent furniture unit
doors.
Installation
45
