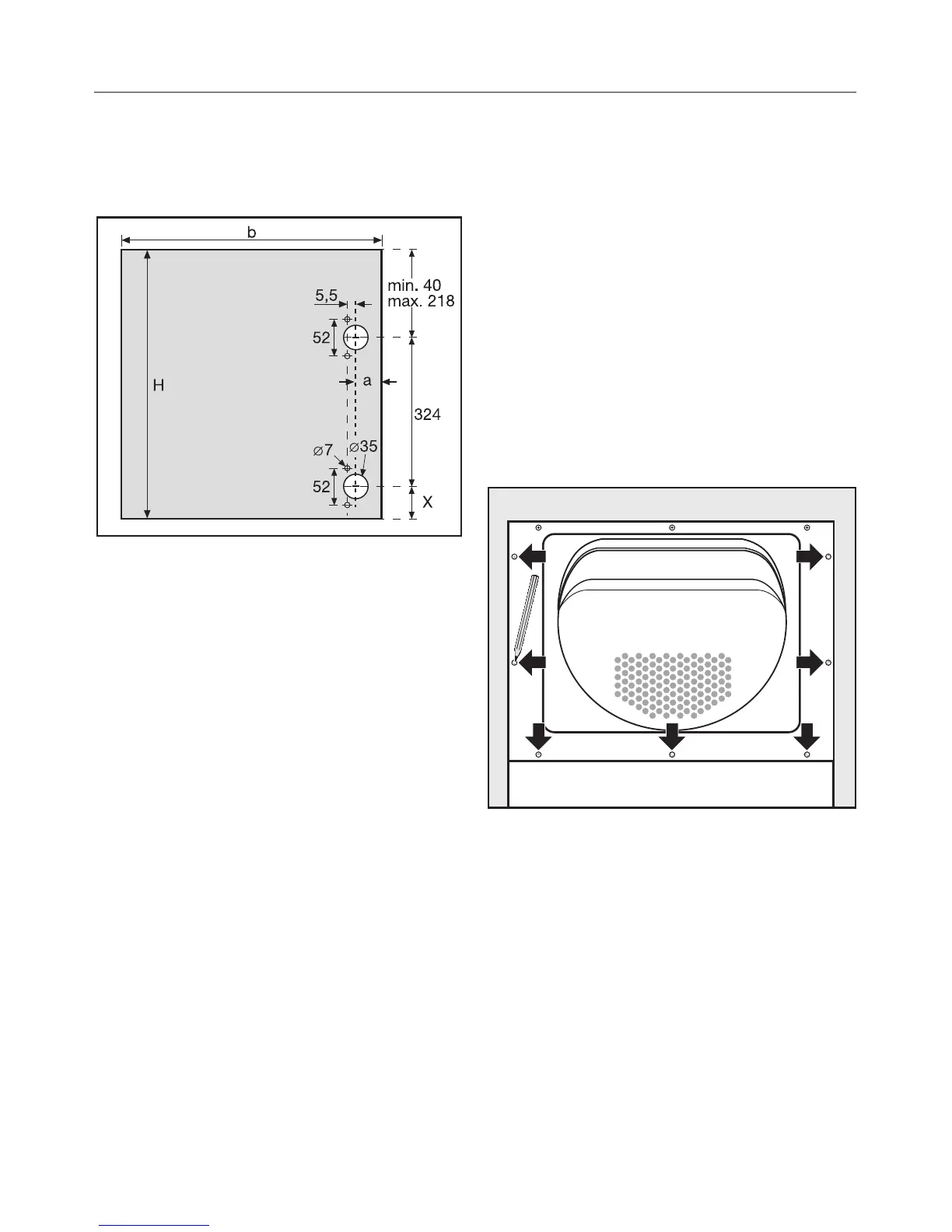

For right hand hinging only:
–
front panel shown decor side face
down, upper edge at the bottom:
if width (b) increases, measurement a
must also be increased
b = 592 mm N a = 21.5 mm
b = 593 mm N a = 22.0 mm
b = 594 mm N a = 22.5 mm
b = 595 mm N a = 23.0 mm
b = 596 mm N a = 23.5 mm
H = height of adjacent furniture unit
doors.
C Drill the two hinge holes (C 35
mm/15.5 mm deep) in the back of
the front panel.
D Next, drill the four smaller holes
(C 7 mm/10 mm deep) in the back of
the front panel.
E Shorten the front panel from the
bottom to height H.
Preparing the fixing points
F Hold the pre-drilled front panel in the
correct position in front of the
machine door.
G Mark the fixing points on the back of
the front panel through the holes in
the machine door plate (see arrows
in the illustration).
H Remove the front panel.
I Now drill holes (C 2.5 mm/10 mm
deep) in the back of the front panel.
Installation
46
