MikroTik CCR2004-16G-2S+ User Manual

1.
2.
Configuration
The Ethernet port 15 has a default IP address for connecting: 192.168.88.1. The username is admin and there is no password. The device doesn't have
any other configuration applied by default, please set up WAN IP addresses, user passwords, and update the device. RouterOS includes many
configuration options in addition to what is described in this document. We suggest starting here to get yourself accustomed to the possibilities: https://mt.lv
. In case the IP connection is not available, the Winbox tool ( ) can be used to connect to the MAC address of the device from the /help https://mt.lv/winbox
LAN side
For recovery purposes, it is possible to boot the device for reinstallation, see a section Reset button.
Specifications
Product code CCR2004-16G-2S+
CPU AL32400 1.7 GHz
CPU architecture ARM 64bit
CPU core count 4
Size of RAM 4 GB
RAM type DDR4
Storage 128 MB, NAND
Number of 1G Ethernet ports 16
Number of 10G SFP+ ports 2
USB port 1 (3.0 type A)
Operating system RouterOS (License level 6)
Switch chip model 88E6191X, 88E619X
Dimensions 443 x 210 x 44 mm
Operating temperature -20°C to +60°C
Reset button
The reset button has two functions:
Hold this button during boot time until the LED light starts flashing, release the button to reset the RouterOS configuration.
Or Keep holding the button for 5 more seconds until LED turns off, then release it to make the RouterBOARD look for Netinstall servers.
Regardless of the above option used, the system will load the backup RouterBOOT loader if the button is pressed before power is applied to the device.
Useful for RouterBOOT debugging and recovery.
Mounting
The device is designed to use indoors and it can be mounted in a rackmount enclosure using provided rack mounts, or it can be placed on the desktop.
Use a Phillips screwdriver to attach rackmount ears on both sides of the device if designated use is for rackmount enclosure:

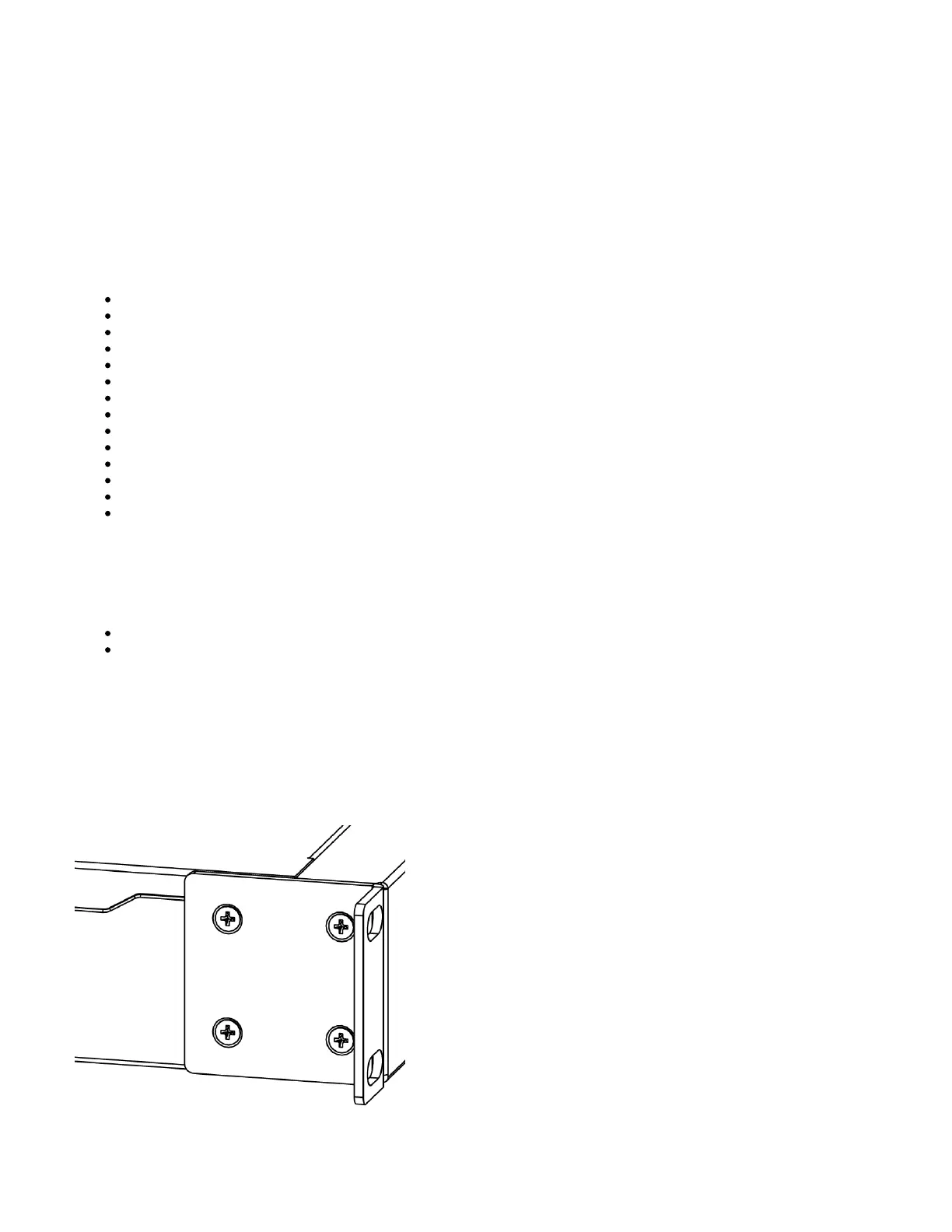

Attach rack ears to both sides of the device and tighten four screws to secure them in place, as shown on the picture to the right;

MikroTik CCR2004-16G-2S+ Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Flash memory	128 MB
Certification	CE, EAC, ROHS
Internal memory	4096 MB
Processor frequency	1700 MHz
Internal memory type	DDR4
Processor manufacturer	Annapurna Labs
Mean time between failures (MTBF)	200000 h
Operating temperature (T-T)	-20 - 60 °C
Input current	0.9 A
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	48 W
SFP module slots quantity	2
Ethernet LAN (RJ-45) ports	16
Sustainability certificates	RoHS
Product color	White
Rack capacity	1U
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	44 mm
Width	443 mm
Height	210 mm
