System Installation 3-9

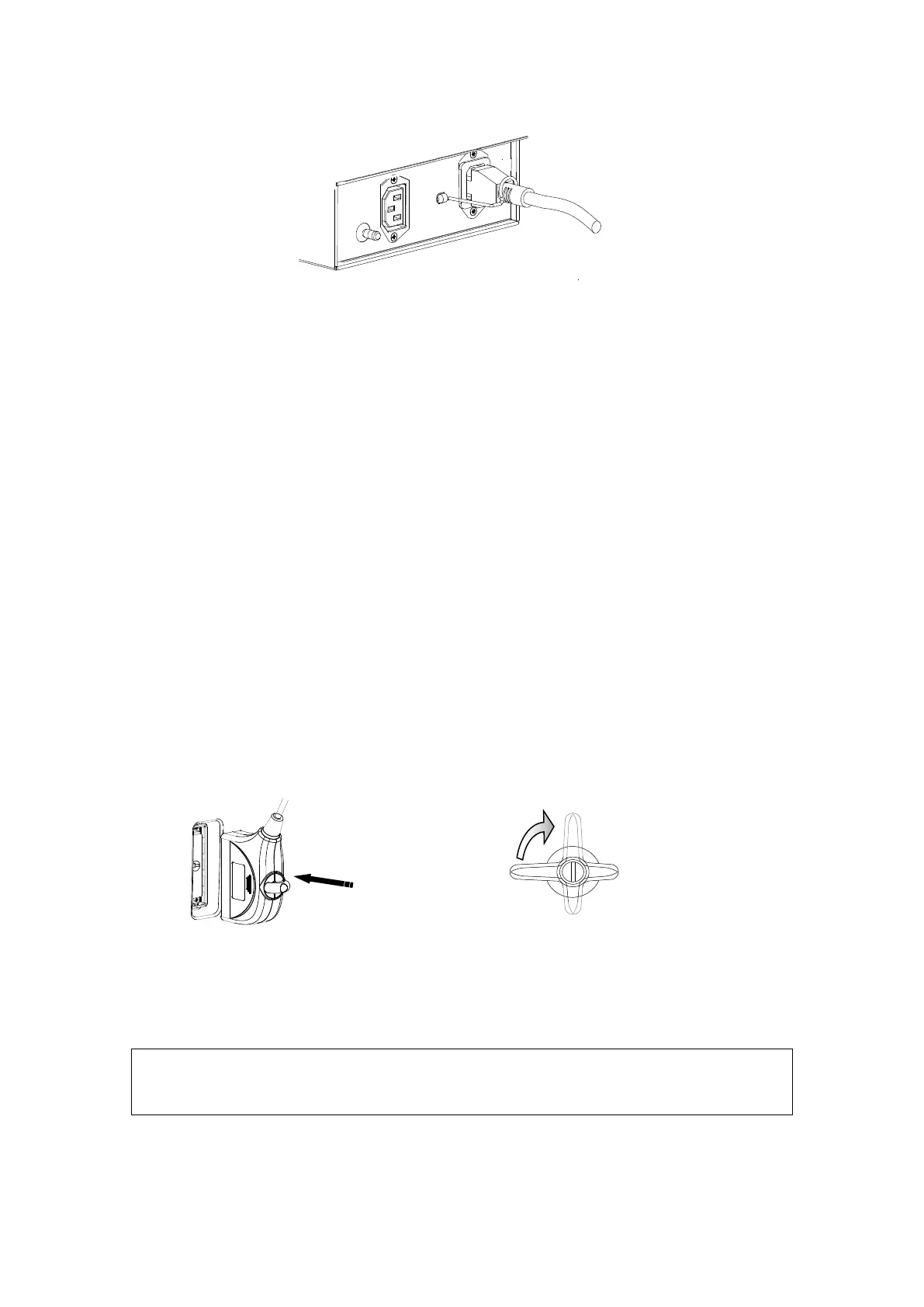

3. Plug the other end power plug into an appropriate power socket on the wall. The
grounding terminal should be connected with a power grounding cable to ensure that
protective grounding works normally.
3.3.3 Installing Transducer& Gel Holder
The system provide 2 groups of 5 holders (one holder is for the gel, and the other four
are for the transducers).The installation method is easy, so the process is not described
any more.
3.3.4 Posit the Gel Warmer
Posit the gel warmer around the ultrasound system by customer requirements.
3.3.5 Connecting the Transducer
The system provides 3 transducer sockets in all, the method is as follows:
1. Keep the cable end of the probe to the right side of the system, and insert the
connector into the port of the system, and then press in fully (Shown as the left
figure).
2. Turn the lock handle 90°clockwise to lock it securely (Shown as the right figure).
3. Place the cable properly to avoid being treaded or wrapping with other devices. Place
the cable in the cable hook, DO NOT allow the probe head to hang free.
4. If disconnect the transducer, Turn the locking lever 90°counterclockwise to the
horizontal position (Shown in the left figure).Pull the probe connector straight out
vertically.
Before inserting the connector into the probe port, inspect the connector pin. If
the pin is bent, do not use the probe until it has been inspected / repaired /
replaced.
