Mindray DP-8800plus Service Manual

Disassembly of DP-9900Plus/DP-9900
3-14

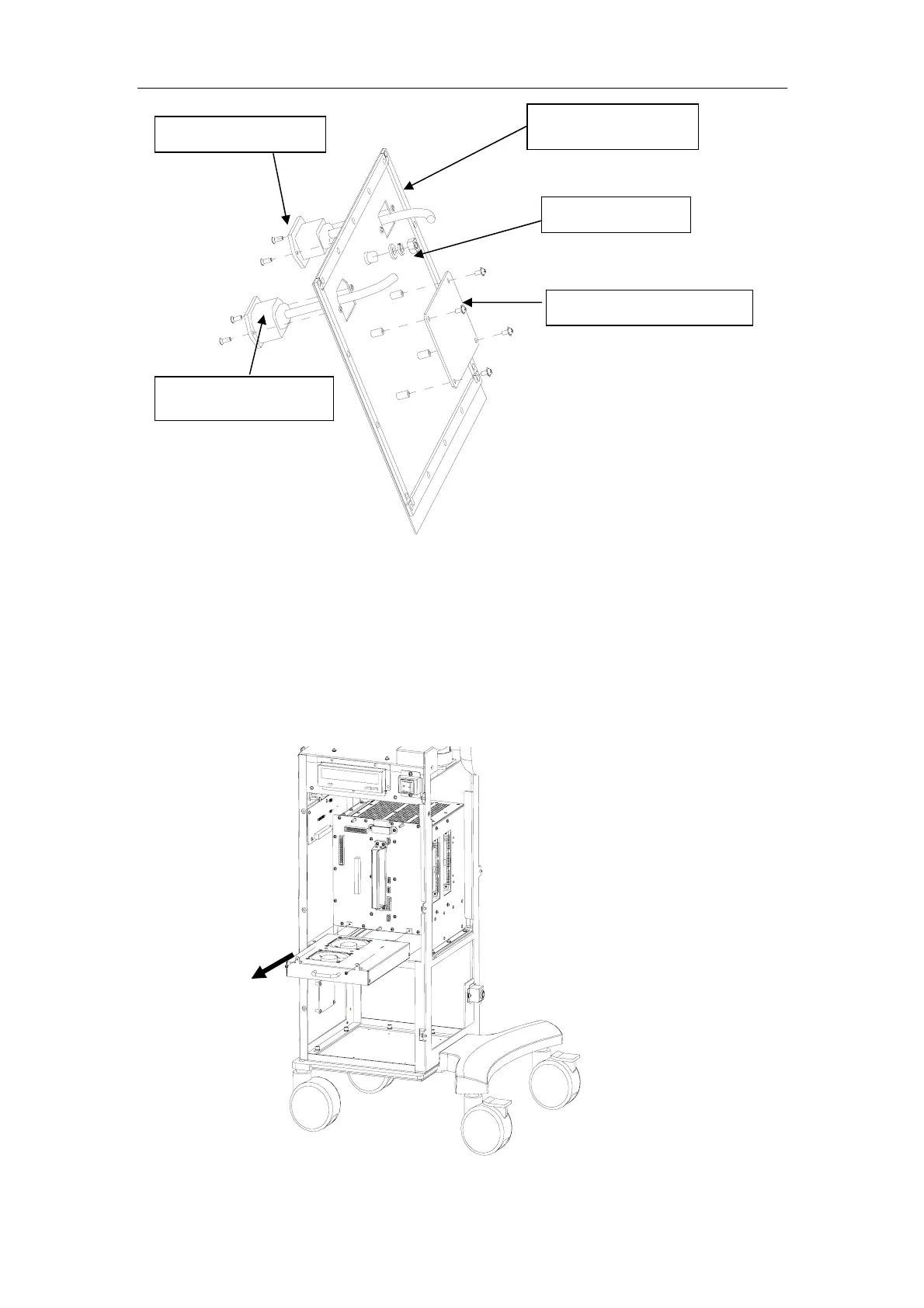

3.10. Disassembly of Air Intake Fan Assembly
1. Perform the procedures described from section 3.5.1 to section 3.5.7.
2. Release the two M4×8 screws that secure the air intake fan assembly and pull out
the assembly by its handle.
Lower Rear Cover
Power Conversion Board
Power Output Socket
Power In
p
ut Socke
t
Ground Terminal

Mindray DP-8800plus Specifications

General

Gray Scale	256 levels
Frequency Range	2.0 - 10.0 MHz (depending on probe)
Imaging Modes	B, B/B, 4B, M
Scanning Mode	Electronic Convex, Electronic Linear
Probe Frequency	2.0 - 10.0 MHz (depending on probe)
Applications	Abdomen, Obstetrics, Gynecology, Cardiology, Small Parts, Urology, Vascular, Pediatrics
Supported Probes	Convex, Linear, Micro-convex
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler Imaging
Power Supply	100-240V~ 50/60Hz
