Mindray DP-8800plus Installation Manual

Installation of DP-8800Plus/DP-8600 Systems
5-4
Figure 5-6 Installation of transducer cable hook
5.4 Installation of Transducer
1. Turn the lever of the transducer counterclockwise 90° to unlock the transducer. See the
figure below.

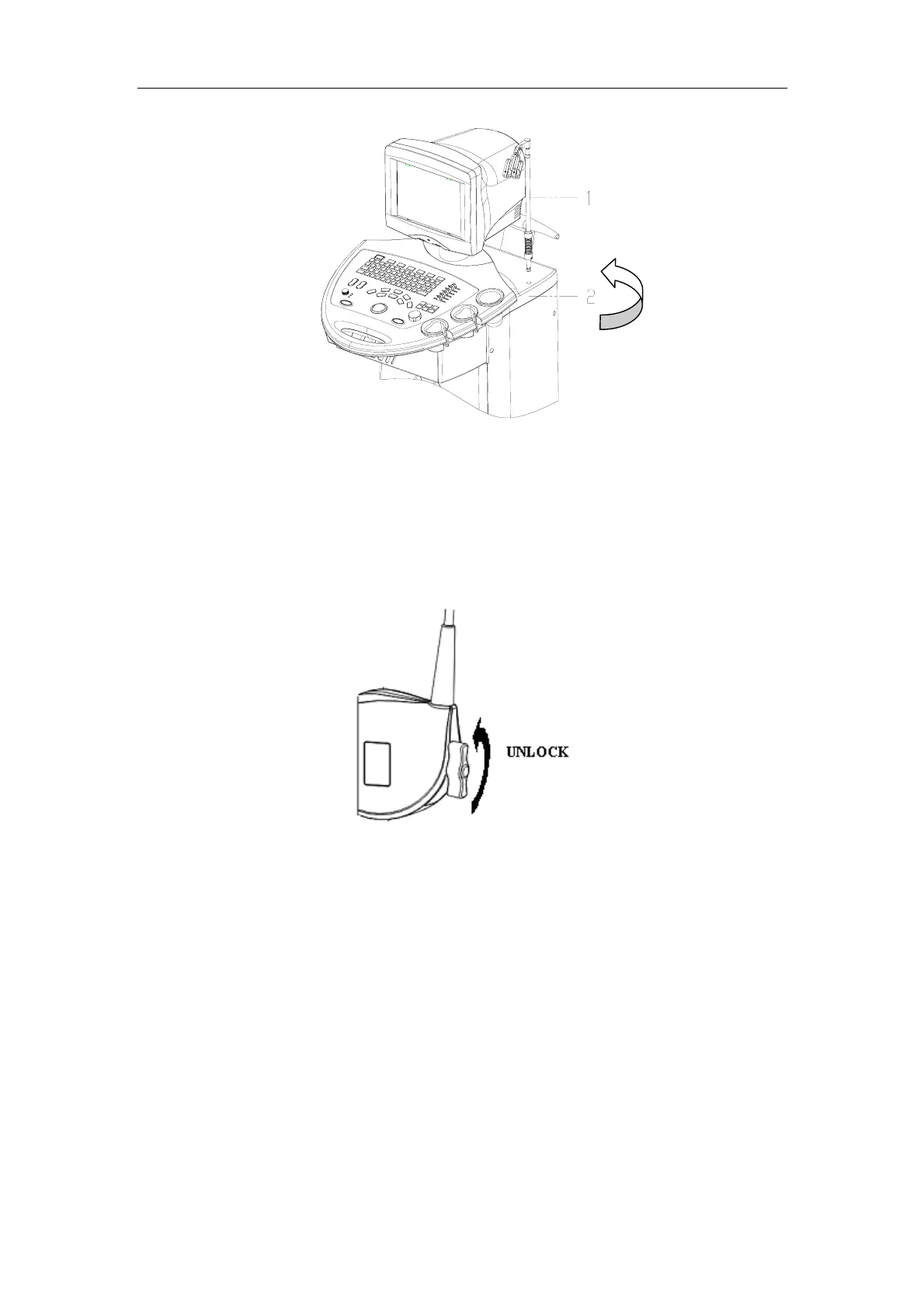

Figure 5-7 Installation of transducer (1)
2. Insert the connector of the transducer into the socket, and turn the lever clockwise 90°
to lock the transducer.
Top plate
Transducer
cable hook
