Installation of DP-8800Plus/DP-8600 Systems
5-5

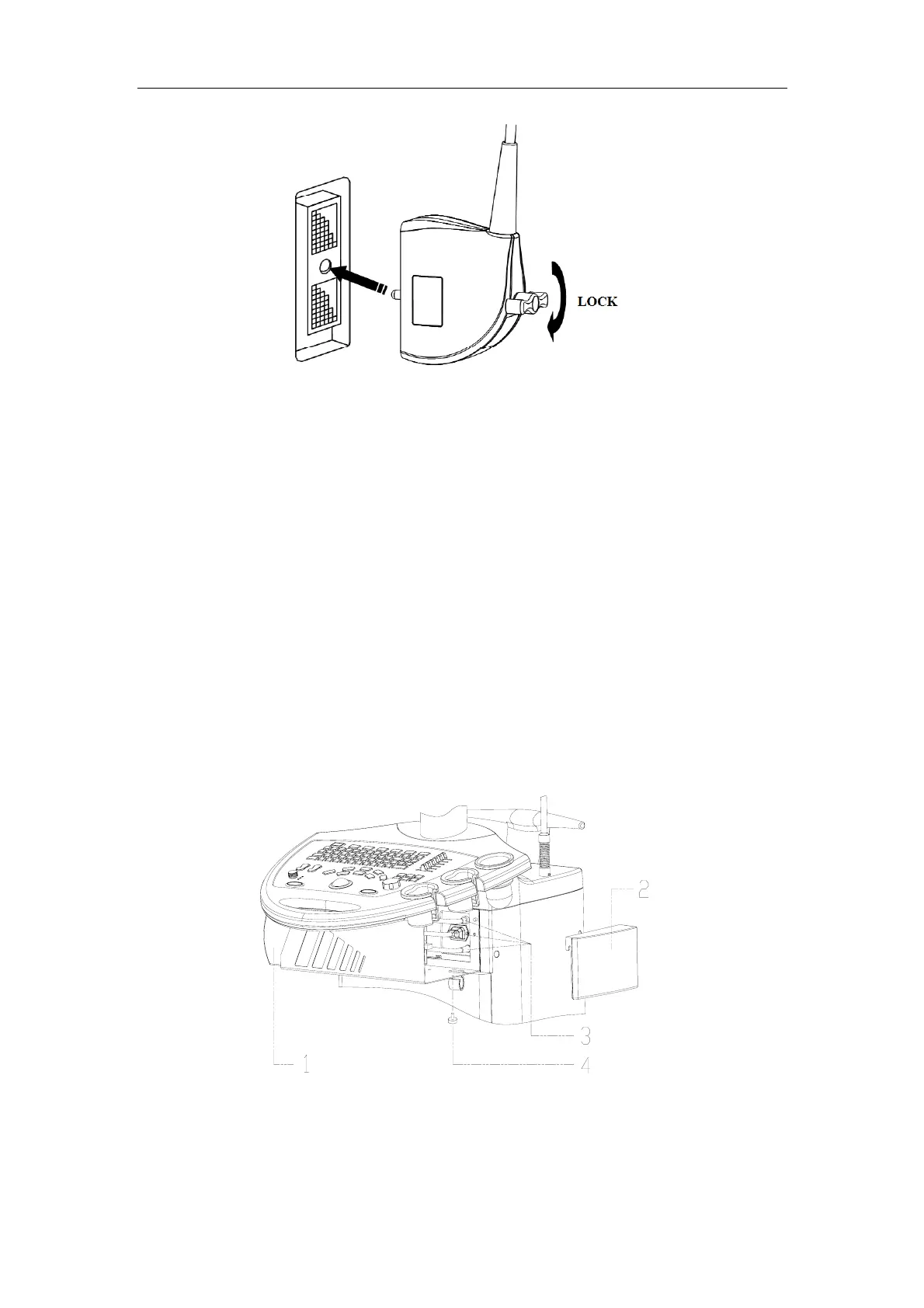

Figure 5-8 Installation of transducer (2)
5.5
Installation of Peripherals
Installation of the video printer is described as follows:
1. Remove the knurled screw under the printer compartment, and move the rear cover of
the printer upwards to remove it.
2. Place the video printer in the compartment and connect the cables.
3. Reinstall the rear cover of the printer and knurled screw.
Different screws are needed depending upon the types of video printers.
SONY UP-895MD: M3x12 screw;
SONY UP-897MD and MITSUBISHI P93W: M3X6 screw.
Figure 5-9 Installation of video printer
Printer
Cables
Rear cover o
printer
Knurled screw
