MINN KOTA RIPTIDE POWERDRIVE User Manual

minnkotamotors.com | 21
©2023 Johnson Outdoors Marine Electronics, Inc.

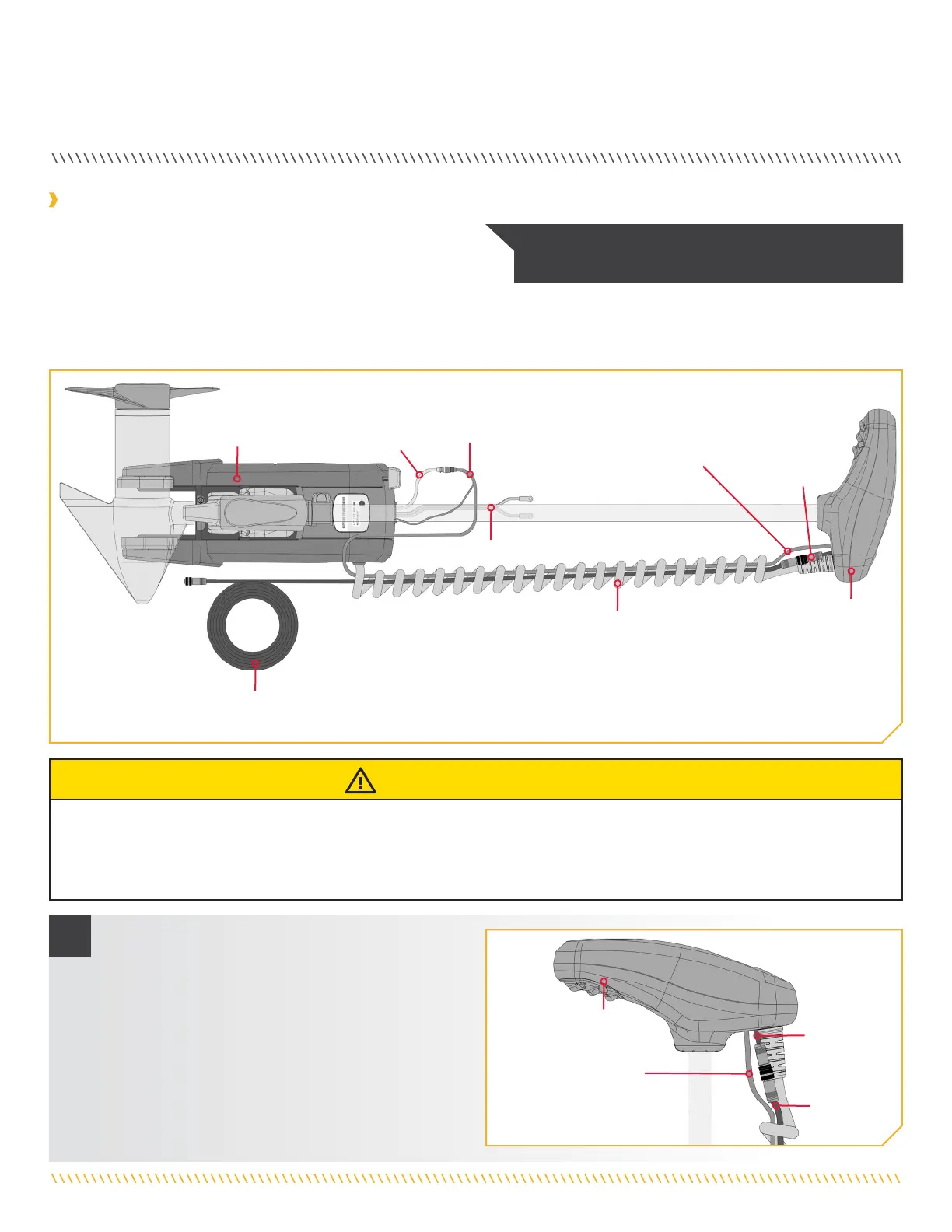

SECURING ACCESSORY CABLES
Securing Accessory Cables
1
NOTICE: If only one cable is present below the Control
Head, this installation is not applicable.
Before securing the cables, please review the "Identifying
Trolling Motor Features and Their Associated Cables" section of
this document. When identifying features, it is very important to
secure the cables if two or more connections are present below
the Control Head. If only one cable is present below the Control Head, this installation is not applicable. All Accessory Cables that will be
used on the trolling motor must be routed and all connections secured before completing the installation in this section. To review how
Accessory Cables should be routed and connected, please review the "Advanced GPS Navigation" section of this document.
CAUTION
Failure to follow the recommended wire routing for installed features, if equipped, may cause damage to the product and void your
product warranty. Route cables away from pinch points or other areas that may cause them to bend in sharp angles. Routing the cables
in any way other than directed may cause damage to the cables by being pinched or severed. Do not over-tighten the cable ties as it may
damage the wires.
Control Control
HeadHead
Control Control
HeadHead
Coil CordCoil Cord
Ethernet Cable or Ethernet Cable or
Ethernet Extension Ethernet Extension
Cable (if installed)Cable (if installed)
Ethernet Cable Ethernet Cable
or Ethernet or Ethernet
Extension CableExtension Cable
MountMount
Advanced Advanced
GPS Ethernet GPS Ethernet
ConnectorConnector
Advanced Advanced
GPS CableGPS Cable
Foot Pedal Foot Pedal
Power ConnectorPower Connector
Power Leads
Advanced Advanced
GPS CableGPS Cable
a. Begin with the Trolling Motor in the stowed
position and have all Accessory Cables identified,
routed and connected.
b. If equipped with Advanced GPS Navigation, the
Advanced GPS Ethernet Connector should be
present just below the Control Head next to the
Coil Cord. Locate the Advanced GPS Ethernet
Connector below the Control Head.
Advanced Advanced
GPS Ethernet GPS Ethernet
ConnectorConnector
Advanced Advanced
GPS CableGPS Cable
