Item /
Assembly
Part # Description Qty.
A
Includes
1 - 4
2994864 BAG ASSEMBLY - (BOLT, NUT, WASHERS) 1
1 2263462 BOLT-MOUNTING-1/4X2 W/STG 6
2 2261713 WASHER-1/4 6
3 2263103 NUT NYLOK 1/4-20 MTG 6
4 2301720 WASHER-MOUNTING RUBBER 6
U
Includes
5 - 8
1378170 PROP KIT 2091170 PWR PRP 1
5 2091170 PROP-PRW (3 5/8") REAMED 1
6 2151726 WASHER-5/16 SS 1
7 2053101 NUT-PROP,NYLOC (MED) 5/16 SS 1
8 2092600 PIN-DRIVE 1.06" LG SS 1
9
✖
MOTOR ASSEMBLY 1
10 2390802 t LANYARD W/CARABINR, IP RMT 1
11 2994175 t REMOTE ASM, MICRO REMOTE 1
12 411690-1 t IPILOT 4.0 REMOTE 1
13 2394110 t TAG, MICRO REMOTE 1
14 490384-4 t CABLE, ETHERNET (M12-M12) 30' 1
15 490380-1 t CABLE, ETHERNET PIGTAIL-700 HD 1
D
Includes 16
2996300 TIE WRAP ASM, 60" 1
16 2206300 TIE WRAP, LOW PROFILE 4" 10
p
2394911 t QCK REF.GUIDE, iP MICRO RMT BT 1
p
2397115 t GUIDE-QCK REFERENCE IP 4.0 1
p
2317127 INSTRC-INSTALL, RT PD SW 1
p
2297165 MANUAL-DISCLAIMER,DWNLOAD INFO 1
p
2294950 OBN & REMOTE PAIR INSTRUCT 1
p
2207131 STANDARD QS SETUP GUIDE 1
2
3
5
7
9
13
11
4
1
12
A
U
p
Not shown on Parts Diagram.
✖ This part is included in an assembly and cannot be ordered individually.
t Only available with models factory installed with GPS.
15
14
8
10
6
16
D
8 | minnkotamotors.com
©2023 Johnson Outdoors Marine Electronics, Inc.
INSTALL ATION
INSTALLING THE RIPTIDE POWERDRIVE
Your new Riptide PowerDrive comes with everything you’ll need to directly install it to the boat. This motor can be directly mounted
to the boat or coupled with a Minn Kota quick release bracket for ease of mounting and removal. For installation with a quick release
bracket, refer to the installation instructions provided with the bracket. For compatible quick release mounting brackets and to locate
your nearest dealer, visit
minnkotamotors.com. To install the motor directly to the boat, please follow the instructions provided in this
manual. Please review the parts list, mounting considerations and tools needed for installation prior to getting started. For additional
product support, please visit
minnkotamotors.com.

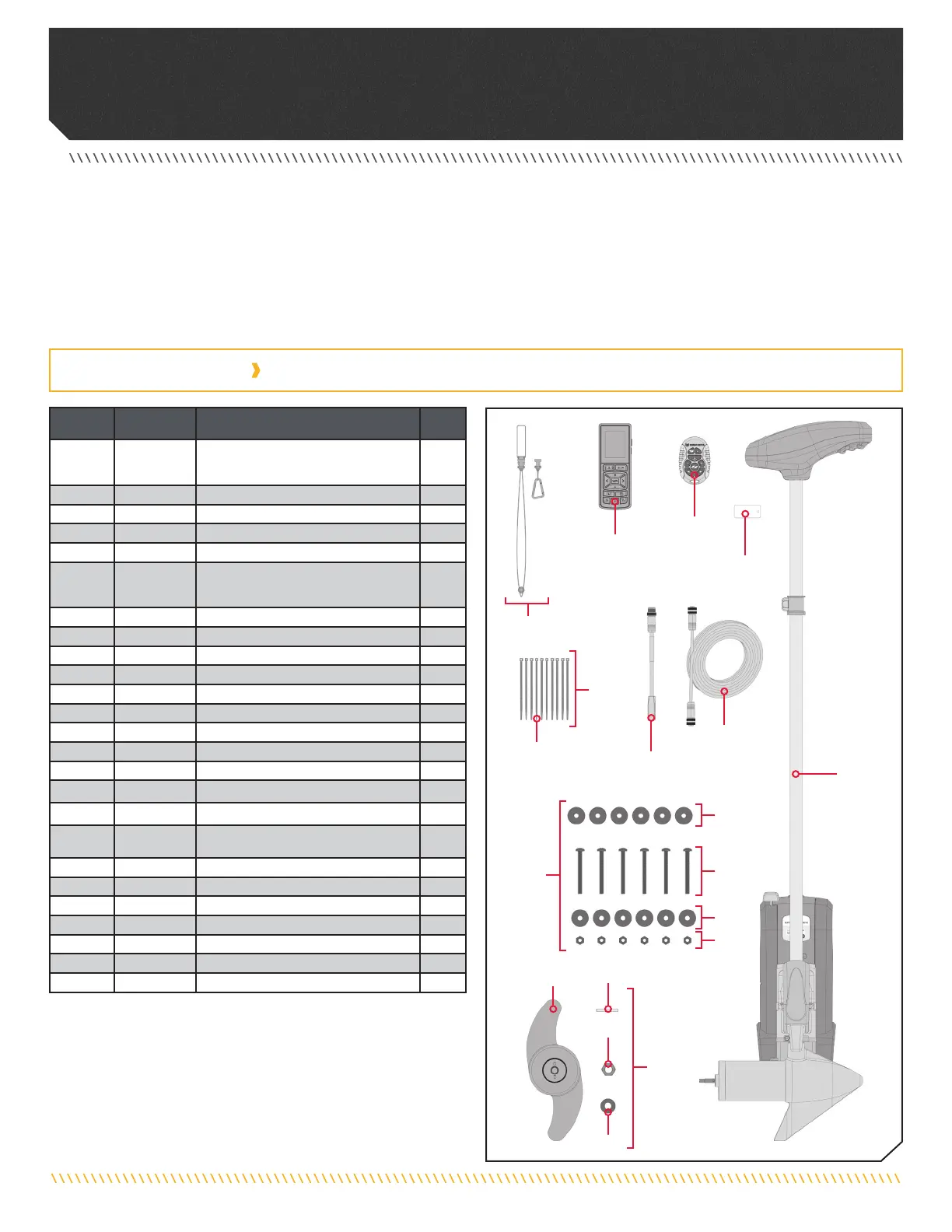

INSTALLATION PARTS LIST
