OPERATION
6
GENERAL:
System Ready (green): The motor is equipped with a system ready indicator. Indicator light will be on when motor is
deployed and power is applied to the motor. When the motor is properly stowed the indicator light will go off indicating
all power has been turned off to the motor. If this indicator light does not come on when deployed, check that motor is
connected to battery properly and motor is completely deployed. If indicator light does not go off when stowed, be sure
that stow/deploy lever is fully latched and locked into the stowed position.
TO STOW:
Push and hold the stow/deploy lever down. Gently tilt and pull the composite shaft or control head until the motor engages
the motor ramps. Motor should rest on the motor ramps and lock into place. The stow/deploy lever should latch auto-
matically into the stowed position. System ready indicator light (green) MUST go off for the motor to be stowed properly.
TO DEPLOY:
Push in and rotate the stow/deploy lever down. Gently slide the motor out from the ramps. Lower the motor to the desired
depth making sure it clicks into a secure, vertical position. System ready indicator light (green) will be lit indicating motor is
ready for operation.
TRANSPORTATION:
In conditions where the stowed motor is subject to high levels of shock or vibration, take care to provide a secure stow.
Move the depth collar snug against the steering motor and tighten.
WARNING : WHEN RAISING OR LOWERING MOTOR,
KEEP FINGERS CLEAR OF ALL HINGE AND PIVOT
POINTS AND ALL MOVING PARTS.

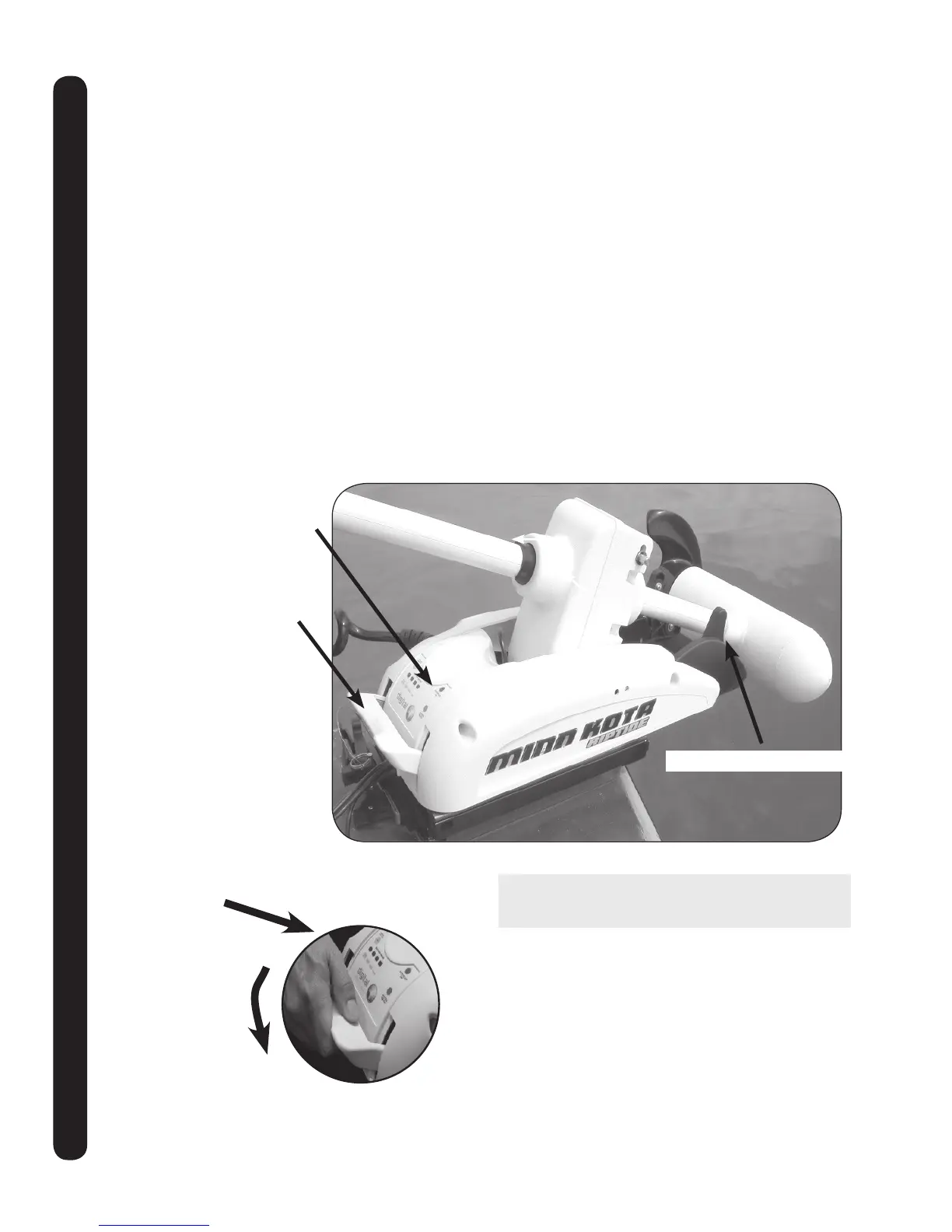

Fall away motor ramps
Tilt Lock Lever Operation
System Ready Indicator
TO DEPLOY
1. PUSH IN
2. PUSH
DOWN
To Next Page
