FLOOR-STANDING Inverter Heat Pump M series

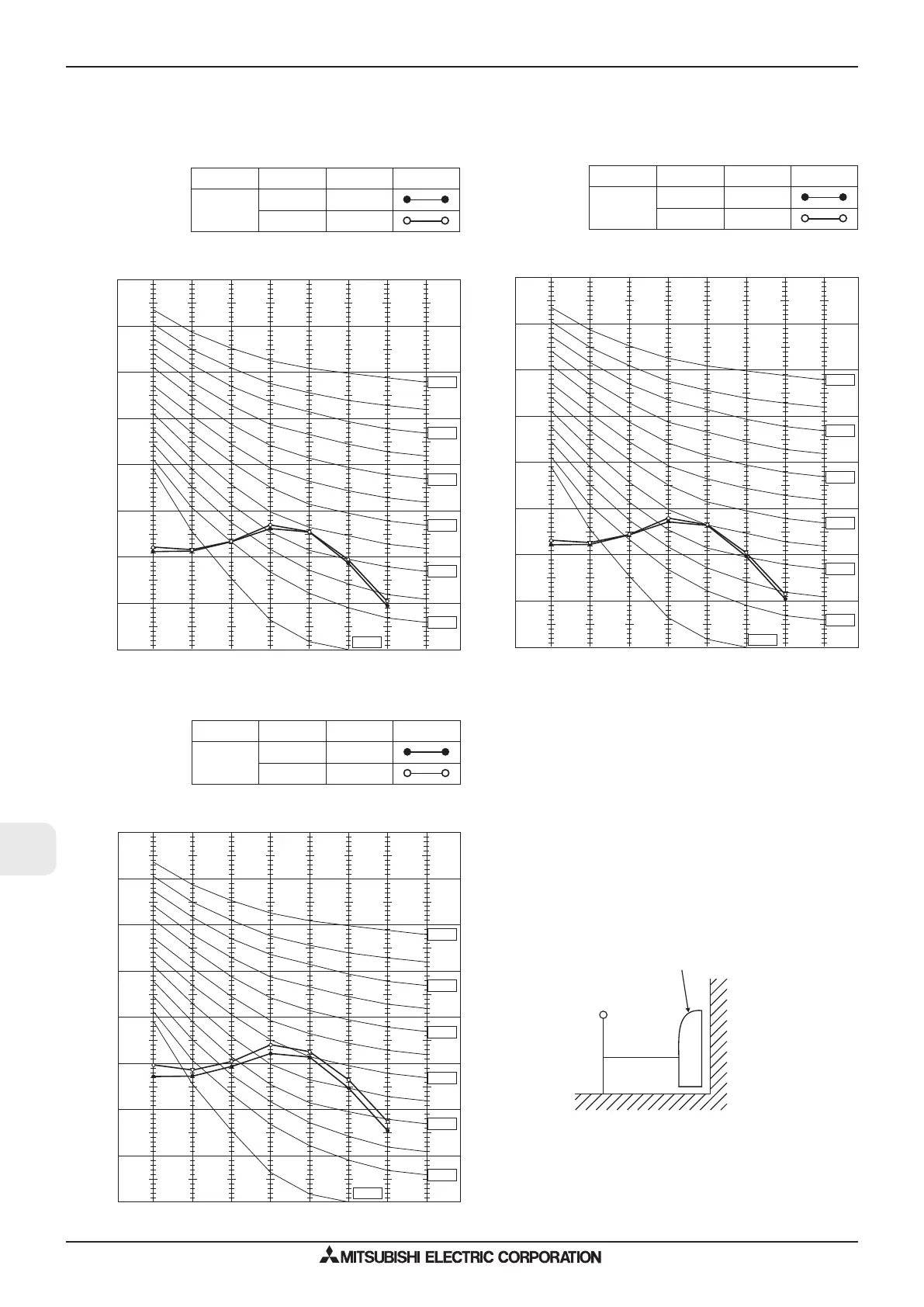

NOISE CRITERIA CURVES
FLOOR- STANDING
C-256
C.2.7.1 Inverter Heat Pump
C.2.7 NOISE CRITERIA CURVES
90
80
70
60
50
40
30
20
10
63 125 250 500 1000 2000 4000 8000
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
Test conditions,
Cooling : Dry-bulb temperature 27 °C Wet-bulb temperature 19 °C
COOLING
FUNCTION
43
44
SPL(dB(A))
LINE
Super High
FAN SPEED
HEATING
Heating : Dry-bulb temperature 20 °C Wet-bulb temperature 15 °C
90
80
70
60
50
40
30
20
10
63 125 250 500 1000 2000 4000 8000
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
Test conditions,
Cooling : Dry-bulb temperature 27 °C Wet-bulb temperature 19 °C
COOLING
FUNCTION
37
37
SPL(dB(A))
LINE
Super High
FAN SPEED
HEATING
Heating : Dry-bulb temperature 20 °C Wet-bulb temperature 15 °C
90
80
70
60
50
40
30
20
10
63 125 250 500 1000 2000 4000 8000
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
Test conditions,
Cooling : Dry-bulb temperature 27 °C Wet-bulb temperature 19 °C
COOLING
FUNCTION
38
38
SPL(dB(A))
LINE
Super High
FAN SPEED
HEATING
Heating : Dry-bulb temperature 20 °C Wet-bulb temperature 15 °C
NC-10
NC-10
NC-10
MFZ-KA25VA
INDOOR UNIT
WALL
1m
1m
MICROPHONE
MFZ-KA35VA
MFZ-KA50VA
