MLZ-KP09NA MLZ-KP12NA MLZ-KP18NA
WIRELESS REMOTE CONTROLLER
MICROPROCESSOR CONTROL
8
NOTE: Last setting will be stored after the unit is turned OFF with the remote controller. Indoor unit receives the signal of the
remote controller with beeps.

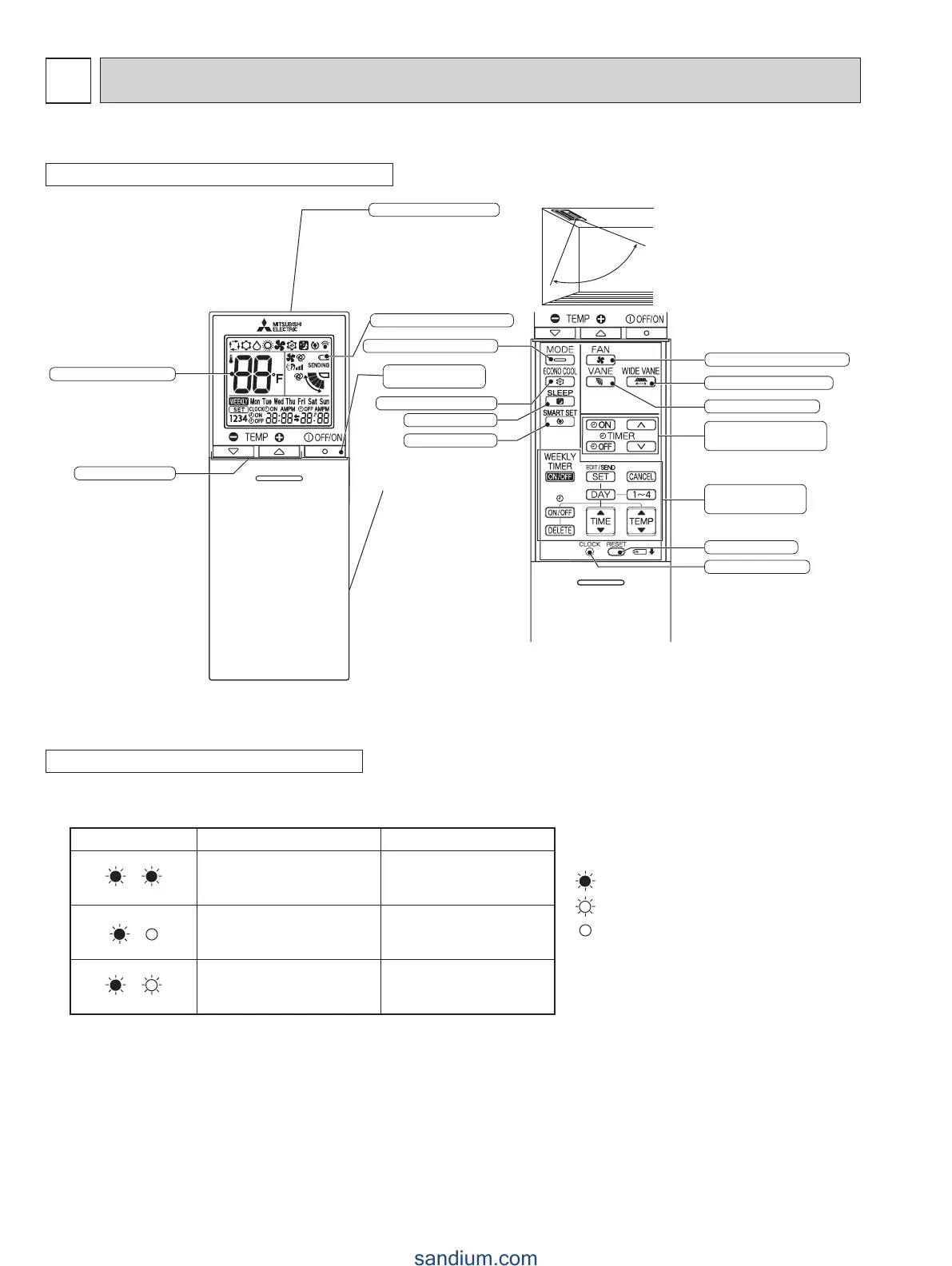

INDOOR UNIT DISPLAY SECTION
Operation Indicator lamp
The operation indicator at the right side of the indoor unit indicates the operation state.
•The following indication applies regardless of shape of the indication.
Indication Operation state Room temperature
The unit is operating to
reach the set temperature
About 4°F(2°C) or more
away from set tempera-
ture
The room temperature is
approaching the set tem-
perature
About 2 to 4°F(1 to 2°C)
from set temperature
Standby mode
(Refer to multi system
operation)
-
Lit
Blinking
Not lit
Signal transmitting section
Battery replacement indicator
Operation display section
Temperature buttons
STOP/OPERATE
(OFF/ON) button
Indication of
remote controller
model is on back
FAN SPEED CONTROL button
OPERATION SELECT button
ECONO COOL button
CLOCK SET button
WEEKLY TIMER
set button
TIME, TIMER set buttons
FORWARD button
BACKWARD button
RESET button
SMART SET button
SLEEP button
WIDE VANE control button
VANE CONTROL button
Distance of signal: About 20 ft. (6 m)
Beep(s) is (are) heard from
the indoor unit when the
signal is received.
90°
Operate the remote control-
ler in the area where signal is
received, and beep is heard.
